OSD Information Telemetry Module PRM-03
User Manual
Compatible with receiver: R12DS, R9DS
Compatible with transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9
Compatible with flight controller: Mini Pix/PIXHAWK/TURBO PiX/APM
Advertisement
Table of Contents
Related Manuals for RadioLink PRM-03
Summary of Contents for RadioLink PRM-03

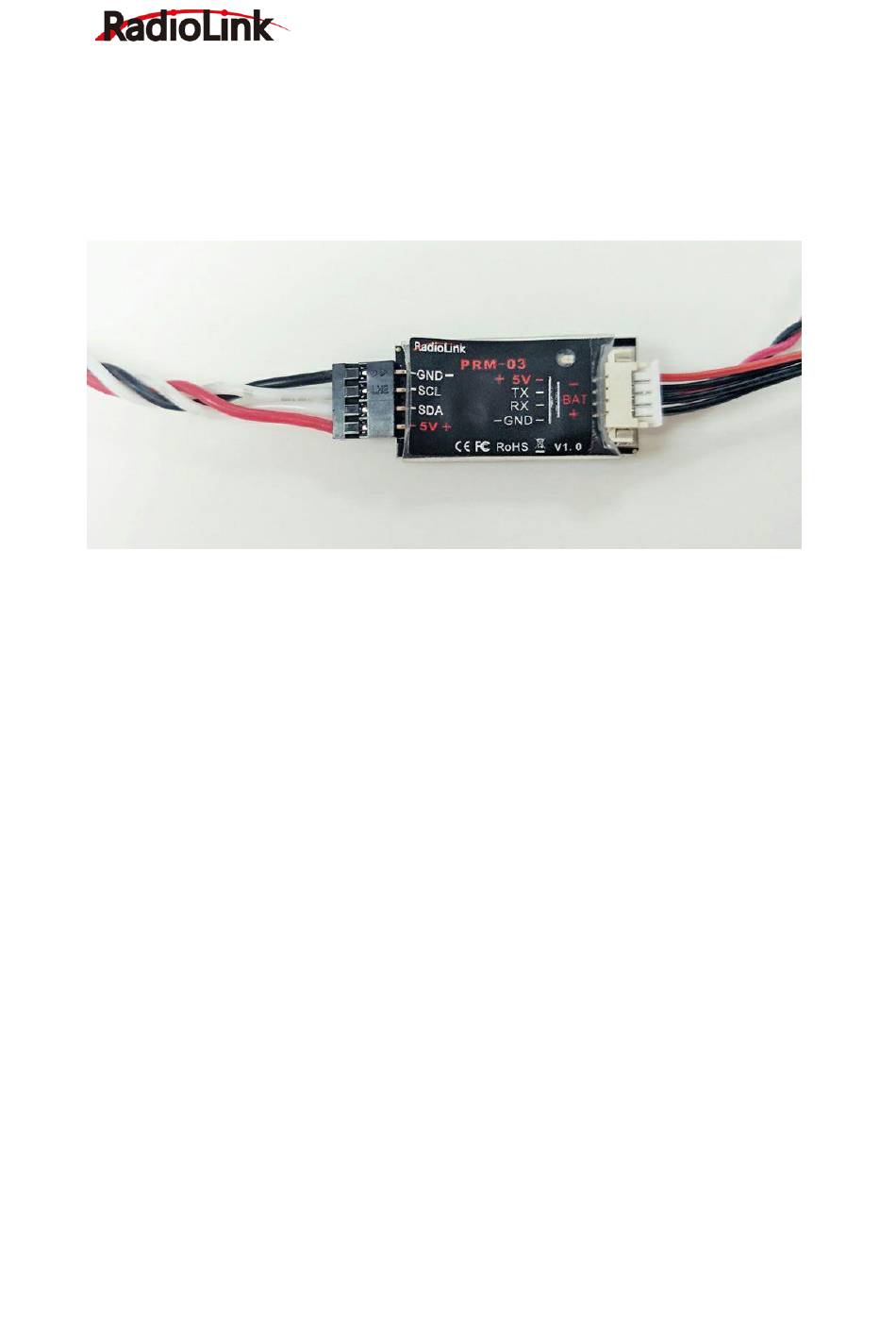

- Page 1 RadioLink Electronic Limited www.radiolink.com OSD Information Telemetry Module PRM-03 User Manual Compatible with receiver: R12DS, R9DS Compatible with transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9 Compatible with flight controller: Mini Pix/PIXHAWK/TURBO PiX/APM...
- Page 2 RadioLink Electronic Limited www.radiolink.com Contents Introduction ........................... 3 Specifications ..........................3 Connection ............................. 4 Displaying Effect ........................... 8...
- Page 3 Real-time model data allows users to receive crucial information on the model's systems. With flight module PRM-03 and flight controller PIXHAWK/Mini Pix/TURBO PiX/APM, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance are display on the transmitter (AT10II/AT10/AT9S Pro/AT9S/AT9) screen.
- Page 4 ⑨ PRM-03 is compatible with 1 cell to 12 cells battery(3.7~50.4V). Pay Attention: The old version AT9 and AT10 have to upgrade the firmware when if use PRM-03 to telemetry OSD information. AT9 have to upgrade firmware at least to the version V1.2.6(OSD) and AT10 have to upgrade firmware at least to V1.0.6(OSD).
- Page 5 RadioLink Electronic Limited www.radiolink.com...
- Page 6 Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance information, please connect one end of the OSD information telemetry module PRM-03 to R9D/R9DS/R10D/R10DII/R10DS/R12DS and the other end to the TELEM port of PIX or APM. For example: connect to PIXHAWK...
- Page 7 RadioLink Electronic Limited www.radiolink.com The information will display on the RECEIVE menu.
- Page 8 RadioLink Electronic Limited www.radiolink.com Displaying Effect...
