IMPORTANT
Read these instructions carefully before use and keep them
for future reference.
Your child's safety may be affected if you do not follow
these instructions.

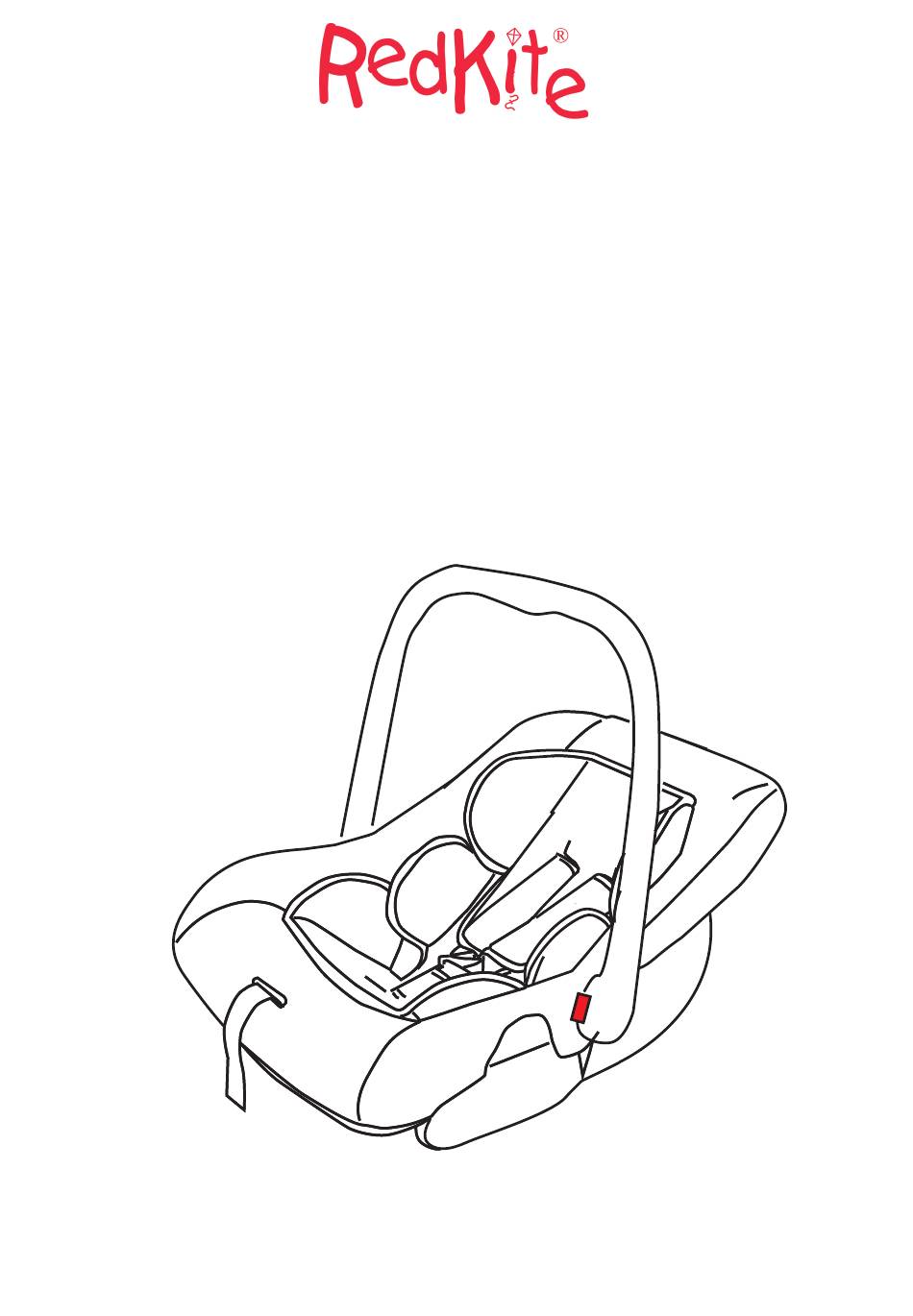

Instruction Leaflet

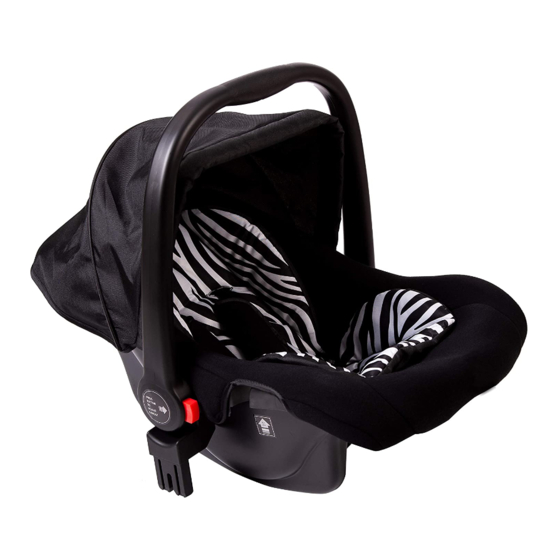

Savanna Car Seat
For infants up to 13kg (Group 0+).
Conforms to ECE R44.04 Universal.
Customer Care Line: 01454 326 568
Advertisement
Table of Contents
Summary of Contents for Redkite Savanna
- Page 1 Read these instructions carefully before use and keep them for future reference. Your child’s safety may be affected if you do not follow these instructions. Instruction Leaflet Savanna Car Seat For infants up to 13kg (Group 0+). Conforms to ECE R44.04 Universal. Customer Care Line: 01454 326 568...
-
Page 2: Important Safety Information
• The Savanna group 0+ car safety seat has been subjected to all safety tests and is approved under European standard ECE R44/04, for children of weight from 0 to 13 kg (0 to 12-15 months). - Page 3 • This car safety seat is not designed for extended periods of sleep. The safety seat is not a substitute for a cot and if the child needs to sleep it is important to lie him/her down. • Do not leave the car safety seat in the car exposed to the sun. Some parts might heat up and be harmful to the delicate skin of the child -check before placing the child in the seat.
- Page 4 1. PLEASE READ THOROUGHLY BEFORE COMMENCING INSTALLATION AS AN INCORRECT INSTALLATION COULD BE DANGEROUS. 2. PARENTS SHOULD NOT UNDER ANY CIRCUMSTANCES USE THIS CHILD RESTRAINT ON A PASSENGER SEAT EQUIPPED WITH AN AIRBAG. 3. The child seat must only be installed in the rearward facing position. 4.
-
Page 5: Parts List
Parts List Handle shoulder pad shoulder straps hook Strap headrest buckle buckle pad shoulder lap belt straps hook slot comfort pad cover handle adjuster shoulder straps adjuster The correct fitting position in the car Correct Incorrect This car seat is not suitable for a car that that has only a lap belt. - Page 6 Check whether the height of harness straps is correct Correct Too low Too high Always check that the shoulder straps are at the correct height for your child. The child's shoulder should always be below the slot for the harness straps. Adjustment of harness straps Step 1: Loosen the shoulder straps, open the buckle.
- Page 7 Securing the baby with the harness Second step Third step First step Step1. Loosen the harness, open the buckle and place them down side ways. Seat your child in the child car seat. Place both shoulder straps over your child's shoulders. Fig 1. NOTE: Baby below 5kg, using comfort pad and headrest pad Baby above 5 kg, only using headrest pad.
- Page 8 Fitting the child restraint Please read the operating handbook in your vehicle to inform your self about the basics concerning children 's seats in vehicles. Do not place this baby seat on seats with front airbags. This baby car seat can only be installed using a three-point vehicle belt.
-
Page 9: Handle Adjustment
Step 4. Tighten the vehicle's own 3-point seat belt by pulling hard on the positions shown. Fig 4. Fig.4 Step 5. Ensure all straps and buckles are located and adjusted correctly. Fig 5.You can contact the child car seat manufacturer if in doubt about this point. - Page 10 Position one. Rearward facing installed in the car. This position (only this position) is suitable for the baby car seat installed on the vehicle seat. Position two. Straight up for carrying. Position three. Handle clicked back to initiate the rocking feature. Position four.
-
Page 11: General Care
General Care: Cover cleaning instructions • Hand wash at max 30° - do not wring. • Do not iron. • Do not bleach with chlorine. • Do not dry clean, do not use solvent. based stain removers. • Do not tumble dry. •...
