ECONO LIFT "SL" SERIES SCISSOR LIFT
OWNERS MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Econo Lift SL Series

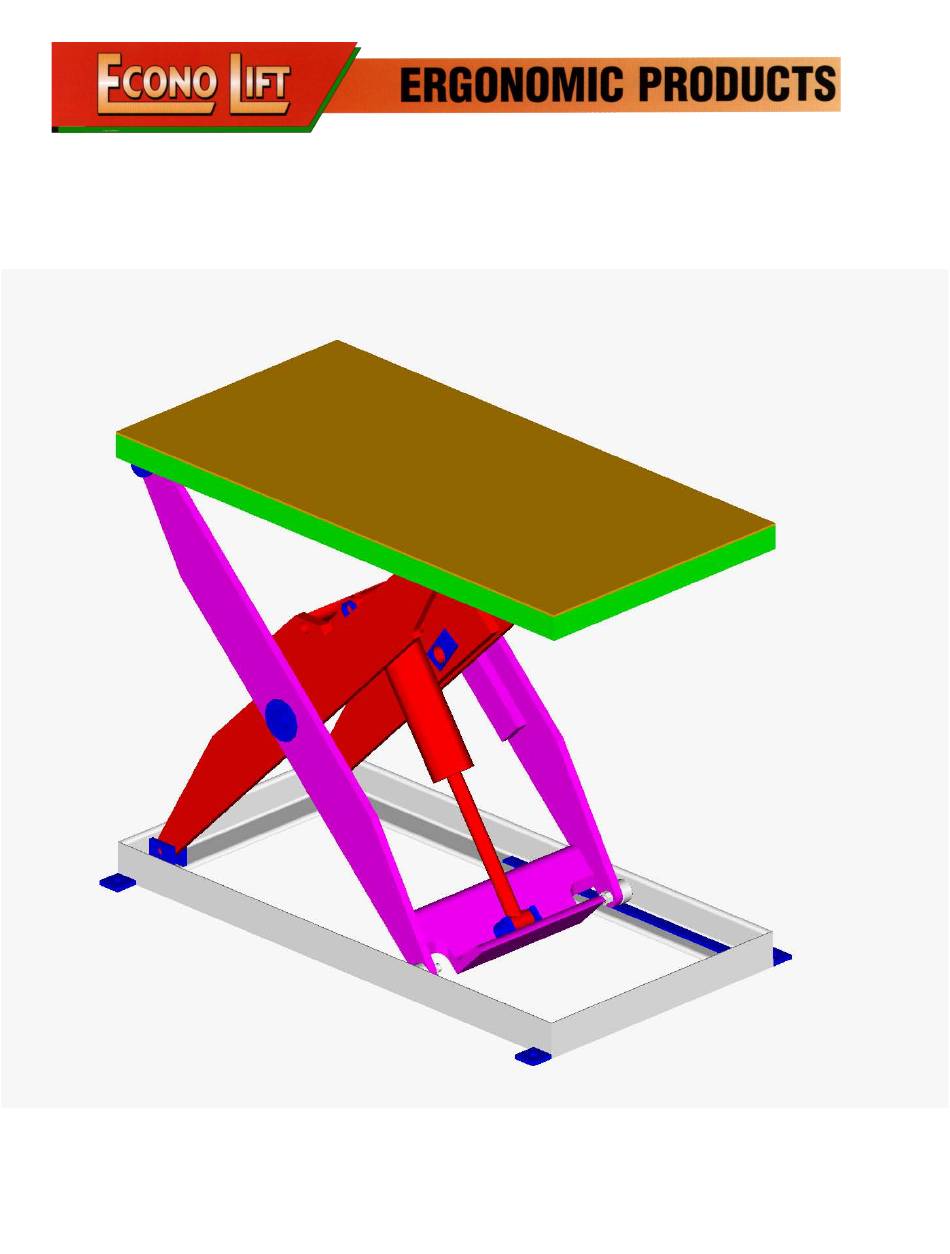

  • Page 1 ECONO LIFT “SL” SERIES SCISSOR LIFT OWNERS MANUAL...

  • Page 2: Table Of Contents

    Operation and Maintenance manual for “SL” Series Scissors Lift. INTRODUCTION ............................... 3 INSTALLATION ..............................3 A. I ..............................3 NSPECTION ..............................3 NSTALLING .............................. 4 LECTRICAL D. H .............................. 4 YDRAULICS : ..............................4 ESTING OPERATION ............................... 5 A. M ...........................

  • Page 3: Introduction

    Introduction This manual attempts to provide all of the information necessary for the safe and proper installation, operation, maintenance and trouble shooting of Econolift Scissor Lift tables. The Scissor Lift has a nameplate, which provides the load capacity (lbs), serial number, drawing number, and date of manufacturing.

  • Page 4: Electrical

    Caution: When moving the Scissor Lift, it should be picked up by the base frame only, the use of straps or slings is suggested. c) The Scissor Lift is provided with anchor holes or brackets, be sure the scissors lift has been placed in the exact operating position before spotting or drilling holes for anchor bolts.

  • Page 5: Operation

    Lift (5-10 sec.). If the Scissor Lift begins to rise with humming sound and function properly continue to the full upright position. Caution: If the Scissor Lift does not rise immediately or there is any operational problem, stop it immediately. Before continuing, check the rotation of the pump and the voltage at motor terminals.

  • Page 6: Read And Understand All The Instructions Before Operating

    Read and understand all the instructions before operating. Load the Scissor Lift correctly. a) Do not load the Scissor Lift while its running. b) Do not exceed the maximum rated load. c) Position load, so it will be centered. d) Wait till the Scissor Lift has come to complete stop before unloading the Scissor Lift.

  • Page 7: Trouble Shooting Maintenance

    Trouble Shooting Maintenance Scissors Lift Will Not Move 1) No operational noises a) Check power switch, fuses and overloads. b) Check voltage on motor. Motor may have failed. Note: For Scissor Lifts with internally mounted Power Packs the platform might have to be tilted up to gain access to the electrical box and Power Pack.

  • Page 8: Econolift Warranty Policy

    Econolift Warranty Policy If any materials, parts or complete units prove defective, and providing claim is made within 80 days after shipment, we will replace or repair, at our option, the defective items. Service is not covered by the factory, service is the dealer’s responsibility. On purchased parts, we pass along the manufactures warranty.

  • Page 9: Series Tables

    Figure 1: for “SL” series Lift Tables Quantities Required Regardless Of Base Width by Model Number SL Series Tables Vertical Travel in Inches Part No Supply No Description Base Assembly Inner Leg Assembly Outer Leg Assembly Platform Assembly 0741 HHCS1.25-1 ¼...
  • Page 10 Figure 1: for “SL” series Lift Tables Quantities Required Regardless Of Base Width by Model Number SL Series Tables Vertical Travel in Inches Part No Supply No Description SK420-3-0 Pin for Bearing (6205-2RS) 5623 Bearing ¼ Hex head bolt ¼ flat washer ¼...
