Abbey Machinery AP Series Maintenance, Operating Instructions And Spare Parts List

All purpose multi-spreader
Hide thumbs
Table of Contents

Advertisement

Quick Links

AP-All Purpose
Multi-Spreader
All Models

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Abbey Machinery AP Series

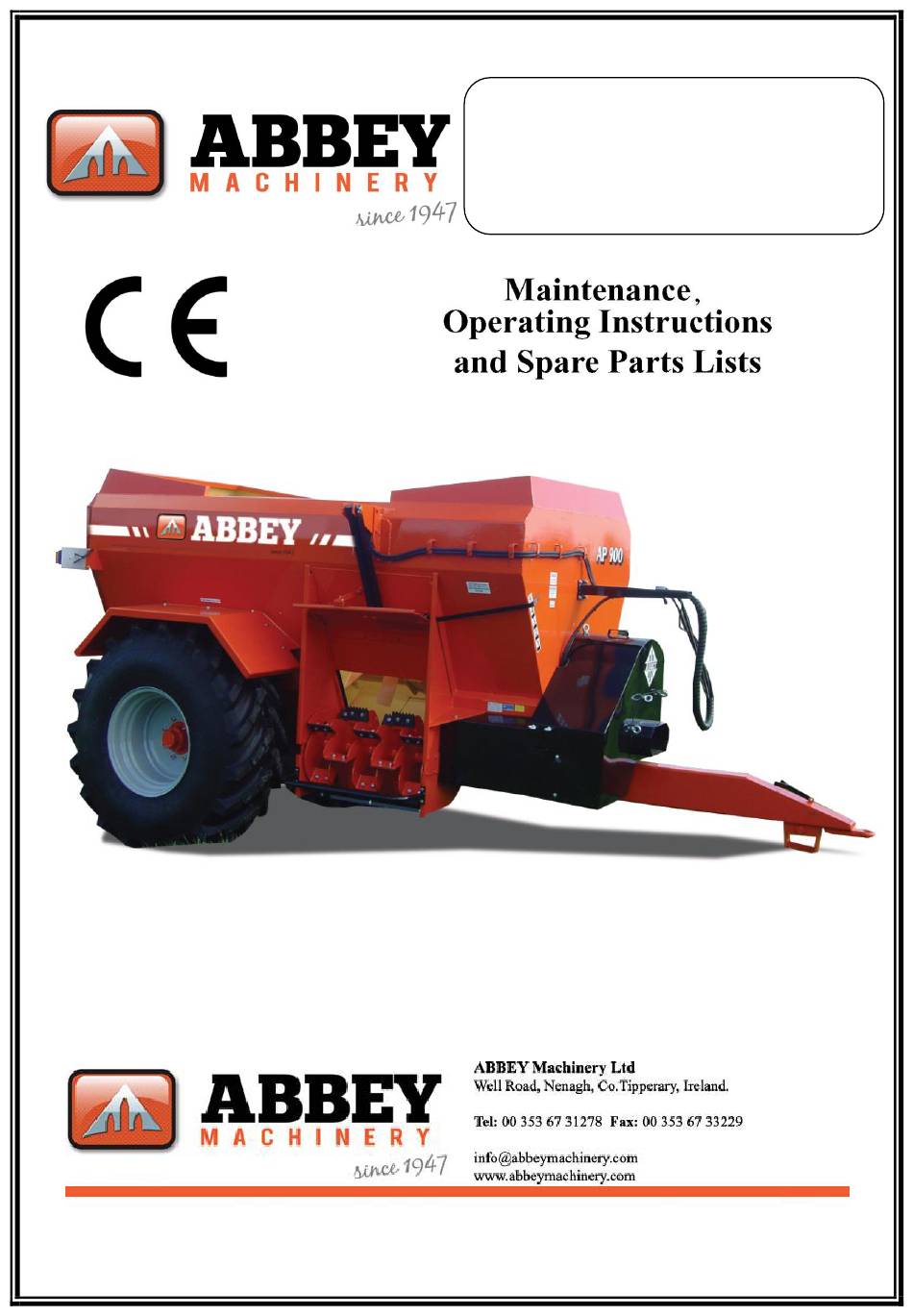

  • Page 1 AP-All Purpose Multi-Spreader All Models...
  • Page 2 Abbey AP Spreader P.D.I Chart This Dealer pre-delivery inspection chart is to be completed and signed by the dealer or their representative before the machine is supplied to the customer. Model______________________Date_________________Serial No_____________________ Tick box below after item is checked. All Models Check all hydraulic connections.
  • Page 3 INSTRUCTION MANUAL CONTENTS Section No. Page No. The function of the Abbey AP Spreader Abbey AP Spreader Safety warning. Abbey AP Spreader setting up for use. Abbey AP Spreader operating instructions. Abbey AP Spreader care and maintenance. AP 900 Chain tension Maintenance Intervals Replacement Parts.
  • Page 4 The Range of Abbey AP Spreaders includes AP700 And AP900 The Range of Abbey Machines also extends to: Vacuum Tankers, Vertical Tub feeders, Paddle feeders, Sprayers, Fail Side Spreaders, Pasture Toppers and Fertilizer Spreaders. 1.0 THE FUNCTION OF THE AP SPREADER The Abbey AP Spreader is a trailed machine which is used to transport farm yard manure from its storage area to the field where it is then spread.

  • Page 5: Safety Warning

    Abbey AP-Spreader 2.0 SAFETY WARNING 1) Stop the tractor engine, apply the parking brake and disengage the PTO before maintaining or adjusting the machine. 2) WARNING: The max speed to be applied at the PTO is 540 rpm and always dis-engage the PTO when turning.
  • Page 6 Abbey AP-Spreader 2.0 SAFETY WARNING (Con’d) 17) Do not approach the spreading rotor while the tractor engine is running. Remember the rotor continues to rotate for some time after the tractor PTO and engine are stopped. Always wait for the rotor to come to a complete stop before approaching it. 18) CAUTION: The Abbey AP Spreader has not been designed to travel at speeds over 40km/h and should be used in line with the road regulations regarding trailed machines in your particular country.

  • Page 7: Setting Up For Use

    Abbey AP Spreader 3.0 SETTING UP FOR USE 1. Connect AP spreader to tractor on pick-up hitch or drawbar. Measure PTO shaft leaving minimum 6” of closure to allow turning circle and shaft closing. This may need to be increased depending on the contours of the land. If connected to the tractor drawbar the optional necessary hitch eye reducer bush must be used.
  • Page 8 Abbey AP Spreader 4.0 OPERATING INSTRUCTIONS 1. Before filling the Abbey AP Spreader close the machine door to the locked vertical position by hydraulic or manual control. Caution: Stand clear of the AP Spreader while the tractor engine is running. 2.

  • Page 9: Care And Maintenance

    Abbey AP Spreader 5.0 CARE AND MAINTENANCE 1. The machine should be stationary and in a stable position with the PTO shaft disconnected to prevent the machine starting up while maintenance is carried out. Always replace and close the machine covers after maintenance or adjustment of the machine. 2.
  • Page 10 Abbey AP Spreader 5.1 CARE AND MAINTENANCE (Contd) Procedure for AP 900 Chain Tensioning After ensuring the sprockets on the frame and the gearbox is in-line tighten the frame tightly into position. Loosen the bolts that link the corner of the gearbox to the frame. Pull the gearbox to the right front side of the machine (looking at the machine front) and tighten the link bolts tightly.
  • Page 11 Abbey AP Spreader 5.2 CARE AND MAINTENANCE (Contd) MAINTENANCE INTERVALS DAILY a. Grease bearings on each end of auger tube and Rotor. b. Grease universal joints on each end of PTO shaft. WEEKLY a. Remove front cover, grease chains, drive shaft bearings and all sprockets. b.

  • Page 12: Replacement Parts

    Abbey AP Spreader 6.0 REPLACEMENT PARTS Axle 400X80 Braked - AF PARTS Item No: Description Part No: Brake Assembly ADR9RE0048 Adapter ADR9RE0048 Camshaft ADR9RE0048 Retaining Ring ADR9RE0048 Washer ADR9RE0048 M24x1,5 ADR9RE0048 Spring ADR9RK0005 Lever ADR9RQ0001 Drum 8 Holes ADR66LNF0801...
  • Page 13 Abbey AP Spreader 6.0 REPLACEMENT PARTS Feeding out Spring LH or RH (ABY6093L or R) M16X150 + Lock Nut Central Auger (ABY705) Bolt on Back Door (ABY706) Door Seal (ABY6094) Auger Back Seal (ABY6906) Auger Back Bearing (BRNUCFX 14E) Bolt On Axle (ABY700) 23.1R26 Wheel (ABY4430) Auger Front Bearing (BRNUCFX 20) M25x90 + Lock Nut...
  • Page 14 Abbey AP Spreader 6.0 REPLACEMENT PARTS Rotor Tips (ABY6907) M16X40 + Lock Nut Flinging Rotor (ABY710) Slurry Tray (ABY711) Safety Rail (ABY712) M10x30 + Lock Nut Rotor End Plate (ABY709) Rotor Bearing (NUCFX 09) Rotor PTO Shaft (ABY6908) Door Ram Bolt on Brackets (ABY716) Ram Pins (ABY9145) Door Ram (ABY6909) Door Splash plate Adjuster (ABY714)
  • Page 15 Abbey AP Spreader 6.0 REPLACEMENT PARTS Rotor Drive Sprocket (ABY6918 + ABY6918B) Simplex Rotor Chain Drive (CHN 168-1) Rotor Driven Sprocket (ABY6914) RMS 11 Bearing Housing (ABY3039) Complete M16X40 + Lock nut Reduction Gearbox (ABY6930) Gearbox mounting Disc (ABY741) M20X40 Shear Bolt(DIN931-M10X40) Torque Bar (ABY742) Front Frame (ABY738)

  • Page 16: Warranty

    Abbey AP Spreader 7.0 WARRANTY The following warranty terms relate to parts only. Abbey Machinery LTD will not accept claims for labour or mileage. 1. This AP Spreader is covered by the manufactures warranty for twelve months or one season.
  • Page 17 8.0 Terms and Conditions of Sale General Consideration:  Abbey Machinery Ltd, shall hereinafter be referred to as “the Company”.  All products and/or components or whatever kind and all services sold by the company shall be sold subject to these Terms & Conditions of Sale and shall hereinafter be referred to as “the Goods”.
  • Page 18 Repairs and Alterations Any products accepted for repair or alterations by the Company shall be held by the Company and repaired and altered by it entirely at Customer’s own risk. Force Majeure If circumstances occur which could not have been foreseen at the time the contract was concluded and which are beyond the control of the company and directly or indirectly prevent, hinder or make more difficult the full or partial performance of the contract, such circumstances being, inter alia war, threat of war, civil war, natural disasters, riots, strikes, lockouts, fire, breakdowns in the Company’s factory, delayed or incorrect deliveries by...
  • Page 19 Notes:...
  • Page 20 Notes:...

This manual is also suitable for:

Ap700Ap900
