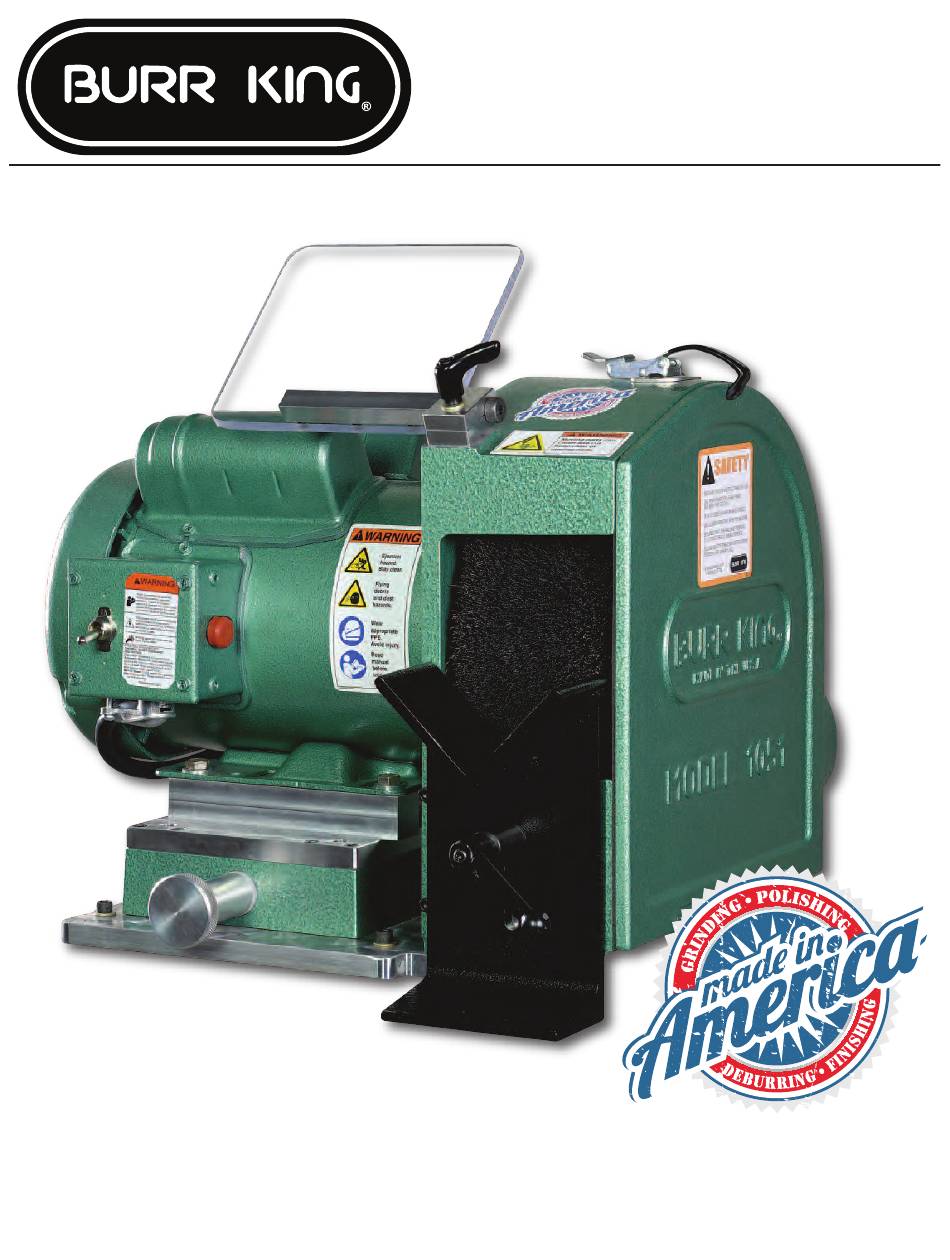

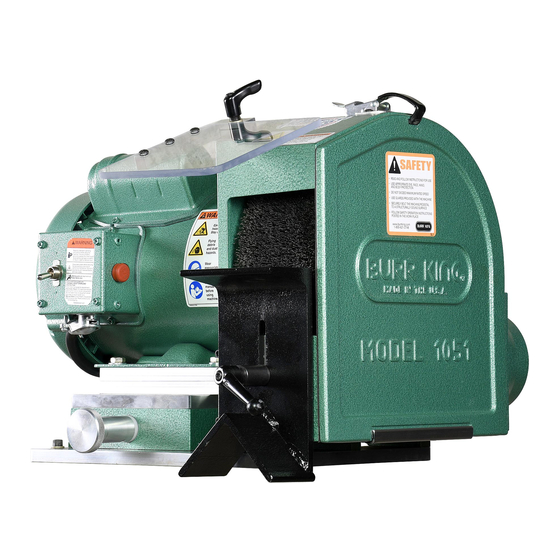

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • Fax (660)438-8991 1051 I ODEL NSTRUCTION ANUAL Model 15110 Shown 1050 ODEL INISHER INGLE PINDLE ATHE 7/2020...
- Page 2 *Motors, speed controllers, and certain other accessories are warranted by their respective manufacture. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center.
- Page 3 FAX (660) 438-8991 October 21, 2020 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. Tariff number 847990 criterion A)
- Page 4 M1051 Important Safety Instructions OPERATOR, and OPERATING AREA SAFTEY WARNING! WHEN USING ELECTRIC TOOLS, BASIC SAFTEY PRECAUSTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury or death may occur if minimum safety precautions are not understood, and obeyed by operators and those other persons who may be in the immediate vicinity of the subject equipment.
- Page 5 9. SPARK AND DEBRIS ARRESTING APPARATUS • To further reduce the exposure you may wish to connect an apparatus to the machine to contain dust and debris/spark arresting device to suppress sparks thereby limiting human inhalation risk, and risk of fire or explosion 10.
- Page 6 King Manufacturing Companies standard warranty policy is summarized as follows for contact wheels. 1 year from date of purchase if mounted on a Burr King machine purchased on the same date or 90 days if purchased as a spare or replacement part.
- Page 7 Operating instructions for the Model 1051 tube finisher The Model 1051 tube finisher is a single spindle finishing machine. It is designed to use nylon, flap, wire, and other finishing and/or de-burring wheels. Your Model 1051 may be fixed speed (single or three phase), or variable speed single phase depending on the configuration ordered.
- Page 8 If either of these conditions are not met turn the machine OFF immediately. 4. If the Model 1051 runs in reverse direction you must correct this by changing the main drive motor rotation direction. FIRST DISCONNECT THE MACHINE FROM ITS AC POWER SOURCE. A COMPETENT ELECTRICIAN SHOULD PERFORM ALL ELECTRICAL WORK ON THE MODEL 1050.
- Page 9 If choosing to run widths that are narrower than 3” in combined width you will need to install wheel spacers. ½” wide wheel spacers are available from Burr King. 1. Unplug the machine from the power source. If your machine is hardwired it maybe necessary to tagout the machine while removing or installing the wheels.
- Page 10 Do not use stone or vitreous wheels on the Model 1051. To do so will create an operator safety hazard. Do use eye, hand, face, arm, leg, feet and body protection that is adequate to protect against flying debris, forcibly ejected work pieces, etc.
- Page 11 Troubleshooting Guide Wire Brushes from Weiler Brush * Problem Recommended Solutions Brush works too fast • Select a brush with longer filaments and/or lower fill density • Select a brush with a smaller diameter wire • Select a brush with a narrower face and/or lower fill density •...
- Page 12 M1051 EXPLODED VIEW 1220 TAMARA LANE WARSAW, MO 65355 PH: 660-438-8998 800-621-2748 FAX: 660-438-8991 E-MAIL: info@burrking.com...
- Page 13 M1051 PARTS LIST ITEM ITEM PART NUMBER DESCRIPTION QTY. PART NUMBER DESCRIPTION QTY. 105101 BASE-MAIN 145T MOTOR-CALL FACTORY 105102 SLIDE-MOTOR BASE WW-31 WHEEL-WIRE 10 x 1 105103 BASE-MOTOR 7-0068 SET SCREW 1/4-28 x 1/4 FP 105104 NUT-ADJUSTER BHSHCS 10-24 X 1/2 105105 SCREW-ADJUSTER SHCS 1/4-20 X 3/4...
-
Page 14: Bottom View
M1051 FOOTPRINT 19.39 13.29 7.02 FRONT VIEW R.H. VIEW 17.07 7.75 .26 THRU 7.25 MOUNTING HOLES 1220 TAMARA LANE WARSAW, MO 65355 PH: 660-438-8998 BOTTOM VIEW 800-621-2748 FAX: 660-438-8991 E-MAIL: info@burrking.com... - Page 15 • Adjustable Polycarbonate Scatter Shield • American designed and manufactured in Warsaw Missouri The Model joins Burr King’s full line of polishing lathes that are fully capable for deburring and polishing The Model was designed from the ground up to run wire brushes up to ”...
- Page 16 RapidStop Braking™ • Reliable • Powerful • Smooth • Heavy Duty 1051 Deburring Machine Specifications For optional features & specifications consult factory Wheel Diameter & Width ” x ” max Horsepower / HP to HP Steel Voltage Volt Single Phase...
