Installation Manual
Manual de Instrucciones
Manuel D'Installation
MS604114CEF(G)
MS604114CUF(G)
MS634114CEF(G)
MS814224CEF(G)
MS814224CUF(G)
MS853113
MS853113E
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-
tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.
MS853113S
MS854114
MS854114S(L)(G)
MS854114E(L)(G)
MS863113(E)
MS864114(E)(L)
MS924154F
Advertisement
Related Manuals for Toto MS604114CEF
Summary of Contents for Toto MS604114CEF

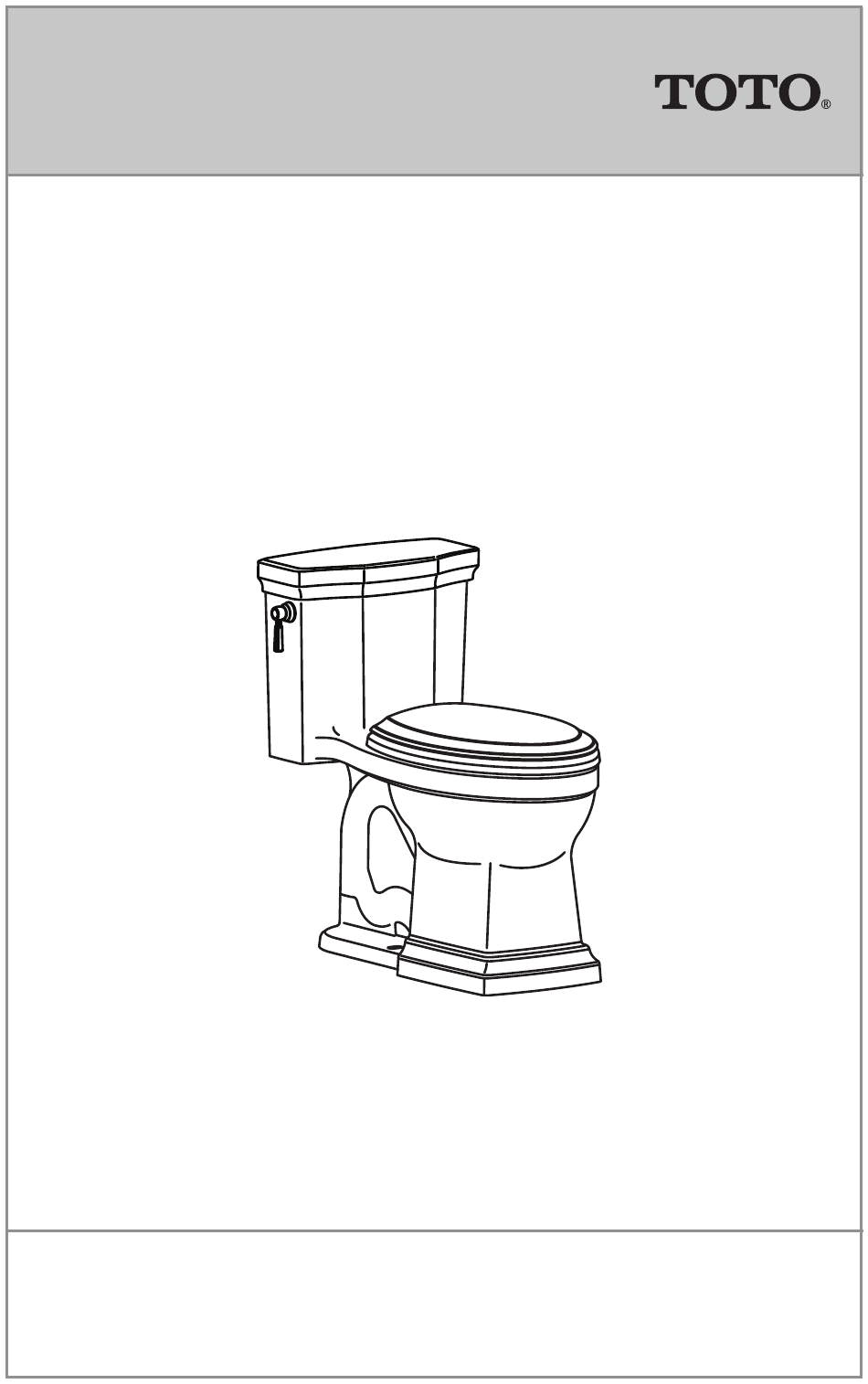

- Page 1 MS924154F Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...
-
Page 2: Table Of Contents
Replacement Parts ......................24 THANKS FOR USING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice. -
Page 3: Before Installation
BEFORE INSTALLATION In order for your new TOTO toilet to fit correctly, check the dimensions below: Supply Valve Wall * Recommended minimum requirement. Closet Flange 12" INSTALLATION PROCEDURE 1) Clean any debris out of the closet flange, Ill. 1 then install the mounting bolts into the slots of the flange (see Illustration 1). - Page 4 INSTALLATION PROCEDURE 4) Flush water through the flexible sup- Ill. 3 ply (not supplied) prior to connection at ballcock/fill valve. Run water into a Tank Water Inlet bucket or similar catch basin until all debris/minerals have cleared the flexible Washer supply, to ensure that the fill valve does not become contaminated.
-
Page 5: Maintenance Instructions
MAINTENANCE INSTRUCTIONS Replacing the Fill Valve 1) Shut off the water supply to the toilet. 2) Flush toilet and remove remaining water from tank with a sponge. 3) Remove the water supply connection at the fill valve. 4) Remove old fill valve and use damp sponge to clean hole in tank. 5) Place new fill valve inside tank hole. - Page 6 MAINTENANCE INSTRUCTIONS Replacing the Flush Valve (CST604CUFG & CST814CUFG Models) Turn off water supply and flush the toilet. Remove the remaining water from tank with a sponge. Remove the tank lid and place it upside down on a clean surface. Pull the clip on top of trip lever gear box as shown.
-
Page 7: Care And Cleaning
The use of high concentration of chlorine or chlorine-related products can seriously damage fittings in the tank. This damage can cause leakage and property damage. TOTO shall not be responsible or liable for any tank fitting failure or damage caused by the use of in-tank bowl cleaners. -
Page 8: Warranty
TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/ or reinstallation of the Product. -
Page 9: Rough-In Dimensions
NOTA: Compense correctamente para rodapicés largos. * Vérifiez que les dimensions sont correctes NOTE: Compensée convenablement pour le plinthe du mur. * Suggested dimensions * Dimensiones recomendadas * Dimensions suggérées Model MS604114CEF(G) 28-3/8” 16-1/8” 16-1/2” 28-3/4” MS604114CUF(G) 28-3/8” 16-1/8” 16-1/2”... -
Page 10: Replacement Parts
REPLACEMENT PARTS / REFACCIONES / PIÈCES DE RECHANGE For flapper type drain valve Model Flapper Fill Valve Flush Valve Trip Lever Modelo Tapón Válvula de Válvula de la Palanca de llenado cisterna descarga Modèle Clapet Robinet de Soupape de Levier de dè- remplissage vidange clenchement... - Page 11 REPLACEMENT PARTS / REFACCIONES / PIÈCES DE RECHANGE For flush tower type drain valve Model Drain Valve Flush Tower Seal Gasket Fill Valve Trip Lever Válvula de Torre de Junta de Modelo Válvula de Palanca de drenaje descarga sellado lenado descarga Modèle Valve du drain...
- Page 14 Rev Date: 08/16 Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...
Need help?
Do you have a question about the MS604114CEF and is the answer not in the manual?
