InVid PAR-P2TEMPTABLET Quick Start Manual

PAR-P2TEMPTABLET
Temperature Measurement &
Face Recognition Terminal
Quick Start Guide
About This Manual
All pictures, images, icons and snapshots in this manual are for reference only. If there is inconsistency
between the manual and the actual product, the actual product shall prevail. The manual will be updated
according to the product improvement and are subject to change without prior written notice.
Legal Disclaimer
To the maximum extent permitted by applicable law, the product described, with its hardware,
software, software and firmware, is provided "as is", with all faults and errors, and our company
makes no warranties, express or implied, including particular purpose, and non-infringement of
third party. In no event will our company, offices, or agents be liable to you for any special,
consequential, incidental, or indirect damages, including, among others, damages for loss of
business profits, business interruption, or loss of data or documentation, in connection with the use
of this product, even if our company has been advised of the possibility of such damages.
With regard to the product with internet access, the use of product shall be wholly at your own risks.
Our company shall be irresponsible for abnormal operation, privacy leakage or other damages
resulting from cyber attack, hacker attack, virus inspection, or other internet security risks; however,
our company will provide timely technical support if necessary.
During the use of the device, pleas strictly abide by applicable law. In the event of any conflicts
between this manual and the applicable law, the later prevails.
Installation and Use
Please use our product according to the following safety instructions and warnings.
Do not place the camera in extremely hot, cold, dusty or damp location.
Do not expose it to high electromagnetic radiation.
If the product does not work properly, please contact your dealer or the nearest service center.
Never attempt to disassemble the camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
Do not drop the camera or subject it to physical shock.
Keep away from liquid while in use.
Do not touch the screen with sharp objects.
If cleaning is necessary, please use clean cloth to wipe it gently, avoiding water or alcohol.
1 Package
CD
Quick Start Guide
Device
Drill Template Plastic Plug
×4
Bracket
3

Cable Connection

18-pin
Interface
1 2 3 4 5
NO2 COM2 NO1 COM1 NO3
Lock interface
2CH alarm output
Note:
* The wiegand terminal here is a wiegand input terminal. If you want to connect
to an access controller, you shall set the Wiegand direction to "Output".
* The RS 485 interface of this device supports security module access. Once the security
module is enabled, the exit button and lock control will be invalid.

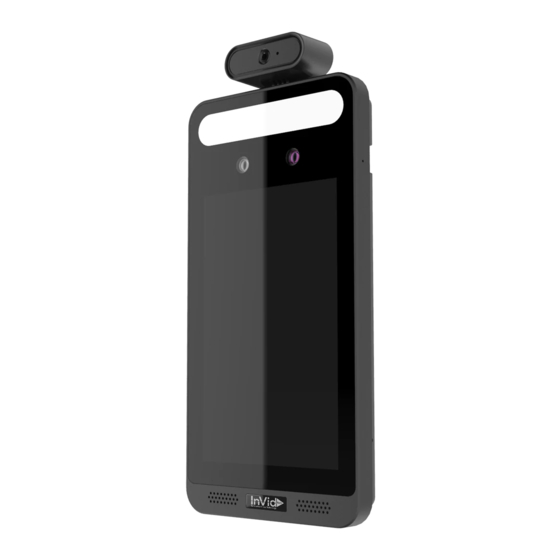

2 Overview
White Fill
Light
Infrared
Light
Tapping Screw
×4
Cameras
Display
Screen
Speaker
6 7 8 9 10 11
COM3 NC3 D+ D- IN1 GND
RS 485 2CH alarm input
Power Input
Alarm Input1
Alarm Input2
Alarm
Output1
Alarm
Output2
RS 485
Wiegand
Interface
Lock
Exit Button
Front Left Right
138.6mm
34.2mm
IR Temperature
Measurement Module
Microphone
Micro SD
Card Slot
Reset
18-pin
USB Port Interface
Power
Interface
12 13 14 15 16
IN2 GND D0 D1 GND
Wiegand interface
+12V
12V0
Earth
PE
GND
GND
IN1
Alarm Input Device
GND
IN2
Alarm Input Device
GND
-
+
COM1 Power
Alarm Output Device
NO1
- +
COM2
Power Alarm Output Device
NO2
D+
RS485+
Access Control Security Module
RS485-
D-
D0
D0
Card
D1
D1
Reader
GND
GND
NC3
COM3 +
Power
NO3
BUT
GND
Exit Button
Router
Or
Switch
Back
17 18
BUT GND
Exit Button
Connector
+
+
/
Anode
Magnetic
Lock
-
-
+
Cathode
Lock
