Summary of Contents for Applied LA12-18

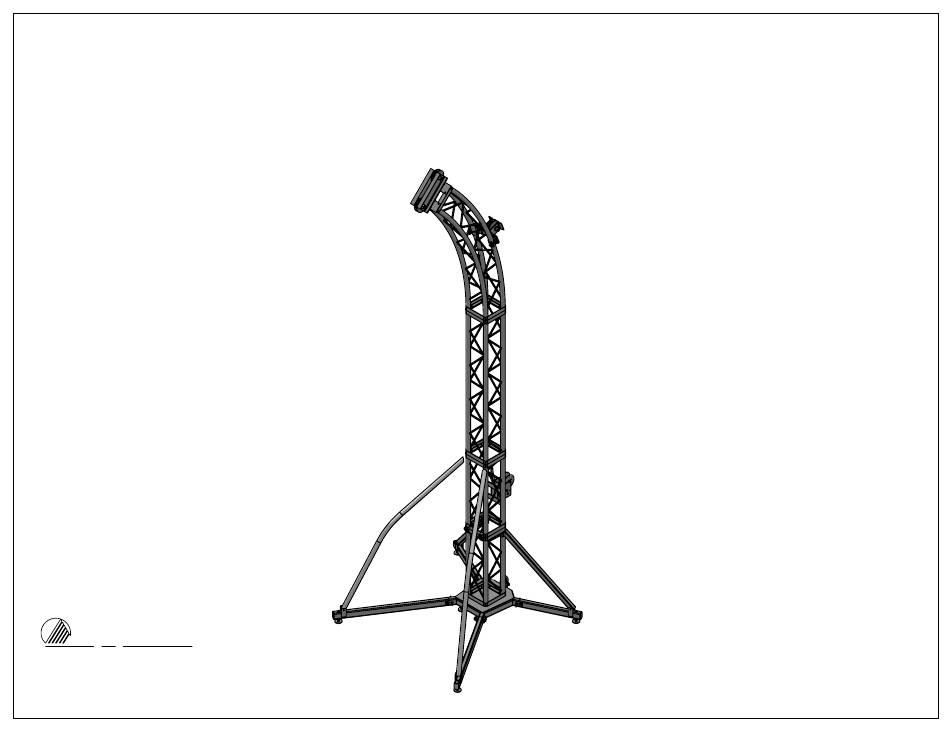

- Page 1 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS Applied ATTENTION! 750 lb WEIGHT LIMIT Truss Electronics 722 Blue Crab Road Newport News, VA 23606 757.591.9371 / fax 757.591.9514 www.appliednn.com REVISED: 8/30/2018 PROUDLY MADE IN THE U.S.A.
- Page 2 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS Motor Bracket 1/4 & 1/2 Ton Chain Hoists Winch Plate Winch Plate Motor Point Motor Point without with 5/8 Shackle 5/8 Shackle WINCH ONLY CONFIG. WINCH/MOTOR CONFIG. OPTION (A) OPTION (B) Applied Truss Electronics...
-
Page 3: Requirements For Safe Use
LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS REQUIREMENTS FOR SAFE USE BILL OF MATERIALS 1) Build Tower on flat surface. (1) BASE PLATE 2) Thick wood or metal plates under leveling jacks. (2) FRONT LEGS 3) Don't lift load until tower is fully assembled. - Page 4 3/8in Hardware LA12-18 MINI LINE ARRAY TOWER MATERIAL X 58 PARTS SHEET / PER TOWER 1-1/4in 91-330 X 54 Steel Sling X 58 93-008 Winch Cable 5 ft 91-511 (Optional) (not shown) Winch 91-506 12x12 Euro Box 6ft MLAT-12-6TS Upper Yoke...
- Page 5 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS ASSEMBLY WINCH MOUNTING BRACKET REAR FRONT STEP 1 Applied 1) Attach "Hinge Section" to the base plate with provided 3/8 x 1-1/4 fasteners. Truss Electronics 2) IF USING A HAND WINCH ATTACH TO MOUNTING BRACKET (A) 722 Blue Crab Road 3) Temporarily bolt hinge closed.
- Page 6 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS ASSEMBLY REAR RIGGING SHACKLE SHORT LEGS IN REAR FACES REAR PINS/LANYARDS #91-350 Hinge not shown for clarity. STEP 2 1) Attach "Legs" to the base plate with provided fasteners. 2) Level all feet before weight is placed on base.
- Page 7 LA12-18 MINI LINE ARRAY TOWER ASSEMBLY INSTRUCTIONS 29.00 FRONT STEP 3 1) Bolt remainder of trusses to hinge with provided 3/8 x 1-1/4 fasteners. 2) Bolt "Head-block" to arched section with provided 3/8 x 1-1/4 fasteners. 3) Clamp the "Third-Wheel" to the arched section at the location indicated by the labels.
- Page 8 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS WINCH Hand Winch Attaching cable to winch A) Wrap at least 2 turns of cable around the drum of the winch. B) Feed at least 5in of cable thru the hole on the right side of winch drum, same side as crank-handle.
- Page 9 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS LIFTING STEP 5A ASSEMBLE LIFTING ARM. 1) Unbolt upper tube from storage position and rebolt in lifting position. 2) Pin upper and lower yokes to lifting positions. 3) Install cable on Lifting Arm Winch.
- Page 10 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS TOWER CABLE STEP 5 INSTALLING TOWER CABLE. 1) Run cable from Winch over head-block. 2) Position & Connect Lifting Arm. 3) Secure Lifting Arm to hinge with pins on lower yoke. Position lifting arm and...
- Page 11 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS LIFTING ARM CABLE STEP 6 USING LIFTING ARM TO RAISE TOWER. 1) Release cable from lifting arm winch. 2) Pull it out to connection at (A) joint 3) Stand on Plate (B) & Rotate Crank to Lift Tower...
- Page 12 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS STEP 7 LIFTING ARM 1) Lift tower to vertical position. 2) Secure hinge with provided 3/8 x 1-1/4 fasteners. CABLE 3) Remove Lifting Arm. CAUTION: ONLY LOAD TOWER AFTER BRACES ARE ATTACHED Applied Truss...
- Page 13 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS BRACES DANGER: DO NOT LOAD TOWER UNTIL ALL BRACES ARE ATTACHED STEP 8 1) Attach Front (A) & Rear (B) leg braces as shown. Applied 2) Level tower as needed prior to loading. Truss...
- Page 14 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS OPTIONAL MOTOR Motor Hanger Bracket 5' Wire Rope STEP 9 (MOTOR) 1) If using electric hoist attach "Motor Hanger Bracket" as shown, in place of hand-winch. 2) Use 5ft steel sling to attach motor to shackle...
- Page 15 LA12-18 MINI LINE ARRAY TOWER INSTRUCTIONS BALLAST STEP 10 Ballast Requirements 1) MINIMUM OF 300 LBS BALLAST IS REQUIRED AT THE BACK OF THE UNIT WHEN USED OUTDOORS. (BALLAST IS NOT PROVIDED) Motor Hanger Bracket TIE DOWN TIE DOWN 300 LB.
