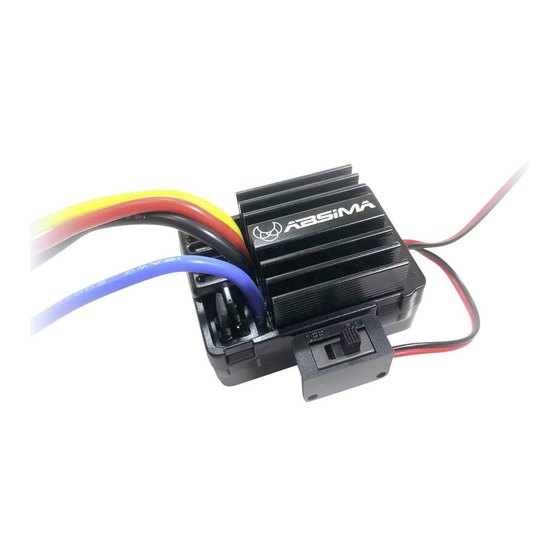

USER MANUAL BRUSHED SPEED CONTROLLER
Thanks for purchasing our electronic speed controller (ESC). The power system for RC model can be very dangerous, please
read this manual carefully. In that we have no control over the correct use, installation, application, or maintenance of our
products, no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product.
Features:
•
Water-proof and dust-proof for all weather races
•
Small size with built-in capacitor module
•
Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle
signal loss protection.
•
Easily programmed with "jumpers"
Thanks for purchasing our electronic speed controller (ESC). The power system for RC model can be very dangerous, please
read this manual carefully. In that we have no control over the correct use, installation, application, or maintenance of our
products, no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product.
Specification:
Model:
Cont. / Burst Current:
Input
Cars Application
Motor Limit 2S LiPo
5-6Cells NiMH
Motor Limit 3S LiPo
7-9Cells NiMH
Resistance
Built-in BEC
Dimension & Weight
Begin to use:
1.

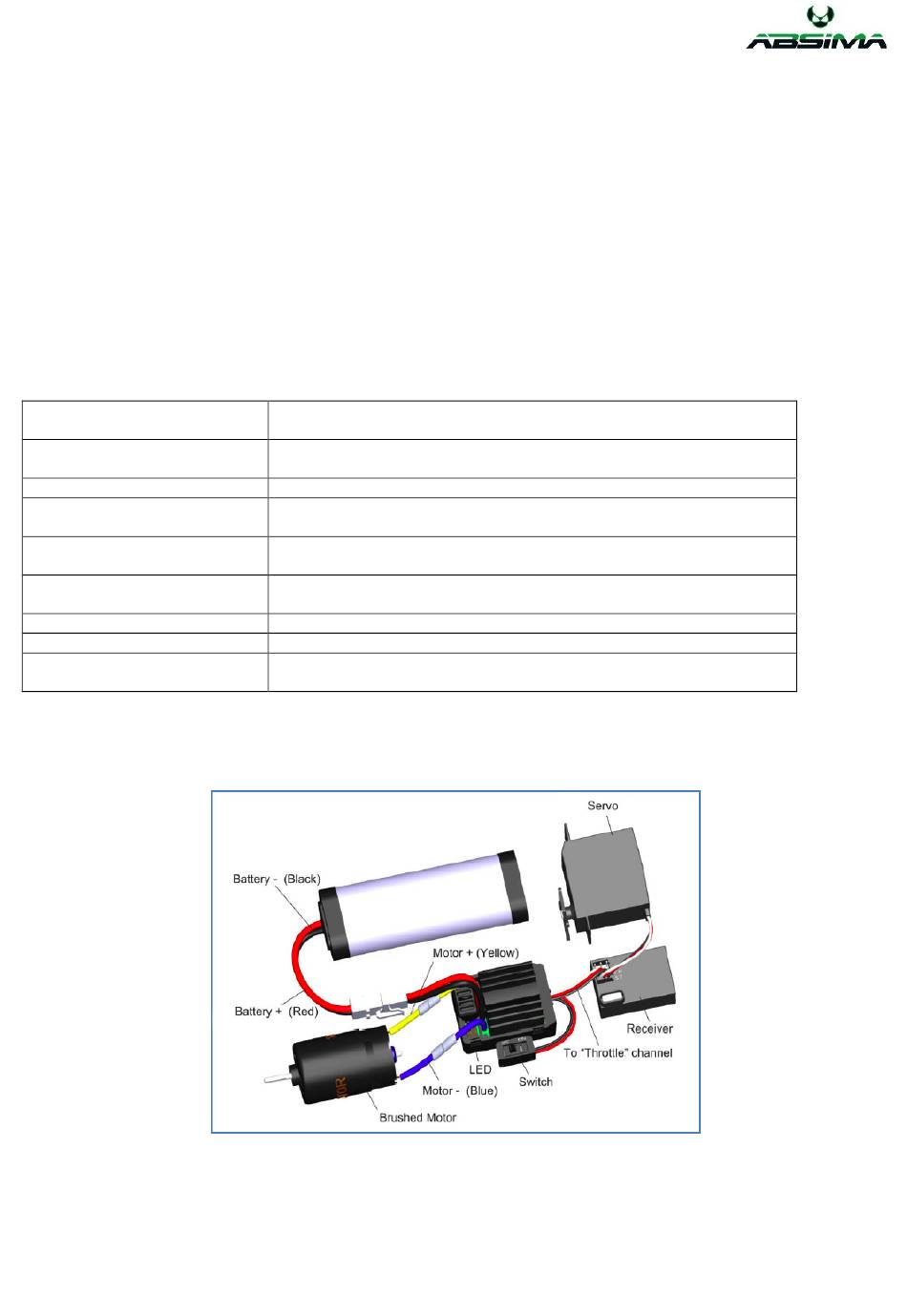

Connect the ESC, motor, receiver, battery and servo according to the following diagram
"+" and "-" wires of the ESC are connected to the battery pack.
ATTENTION: The incorrect polarity will damage the ESC immediately!
The control cable of the ESC (trio wires with black, red and white color) is connected to the throttle channel of the receiver
(usually CH2). The "Motor +" and "Motor –" wires are connected to the ESC without any order. If the motor runs in the opposite
direction, please swap these two wire connections.
WP1040-BRUSHED
WP1040-BRUSHED Crawler & Boat
Forward 40A / 180A
Reverse 20A / 90A
2-3S LiPo / 5-9 Cells NiMH
1:10 On-road, Off-road, Buggy, Truggy, Monster Truck
1:10 Crawler, Tank/Boat
540 or 550 size motor ≥12T or RPM <30.000@7.2V
540 or 550 size motor ≥18T or RPM <20.000@7.2V
Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
2A/6V (Linear mode BEC)
WP1040-BRUSHED 46.5*34*28,5mm 65g
WP1040-BRUSHED Crawler & Boat 46.5*34*28,5mm, 70g
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Absima WP1040-BRUSHED
- Page 1 2A/6V (Linear mode BEC) Dimension & Weight WP1040-BRUSHED 46.5*34*28,5mm 65g WP1040-BRUSHED Crawler & Boat 46.5*34*28,5mm, 70g Begin to use: Connect the ESC, motor, receiver, battery and servo according to the following diagram “+” and “-“ wires of the ESC are connected to the battery pack.
- Page 2 Set the transmitter Please set the D/R, EPA and ATL to 100% for throttle channel (for transmitter without LCD display, please turn the knobs to the maximum value), and set the TRIM of the throttle channel to 0 (for transmitter without LCD display, please turn the TRIM knob to neutral position).
- Page 3 Output reduces 50% at 4.5V Output cuts off at 6.0V, cannot be recovered cuts off at 9.0V, cannot be recovered off at 4.0V, cannot be recovered LVC protection for WP1040-BRUSHED Crawler & Boat 2S LiPo 3S LiPo 5-9 Cells NiMH Output cuts off at 6.5V.
- Page 4 Check the driving system of the car. Declaration of conformity: For the products manufactured by Absima GmbH mentioned in this manual the compelling and relevant EC Directive will apply: Directive: 2004/108/EG Declaration of conformity is ready for download under the following link: http://wp.absima.com/en/index.php/downloads/erklaerungen/...
