Page 25
Safety Notes CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK) The lightning flash with arrowhead symbol,with in an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
Page 26
With USB DAC function which can play music from computer by USB jack. USB jack can connect other USB DAC, and output high bit rate or even DSD audio through USB. Built-in high-efficiency and low-noise switching mode power supply. With earphone monitoring function. Note: Firmware and driver download: http://www.smsl-audio.com...
Page 27
Specifications Input mode: USBx2 / USB Audio / micro SD / Bluetooth DLNA/ SAMBA(NAS) Output mode: Line / balanced / headphone / optical fiber / coaxial / AES / Bluetooth USB / USB out / I S THD+N: 0.00015% Dynamic range: 130dB(A-Weighted)...
Page 28
Specifications DSD DOP: Top support DSD 256 DSD Native: Top support DSD 256 Digital outputDOP output: Top support for DSD64 PCM: Top support 384kHz File system: Support FAT/FAT32/NTFS micro SD Capacity of card: Top support 256G USB drive/Hard disk: Top support 4T USB Maximum output current: 2A(The sum of two USB output currents) USB A maximum output current: 2A...
Page 29
Formats Sampling rate* Format Support Level Bit width Remarks √ √ Fast 384K 16-24bit √ √ Normal 384K 16-24bit √ APE** High 384K 16-24bit 176/192K √ Extra high 16-24bit Nonsupport × Insane √ √ 384K 16-32bit not support √ 16-24bit √...
Page 30
ON/OFF Mute VOL UP Note Play/Pause/Ok Next 1.Press “ B ” first , when using DP5 for Previous the first time! VOL Down 2. In any interface during music playback, Function button long press the function key to return to Return/exit the "...
Page 31

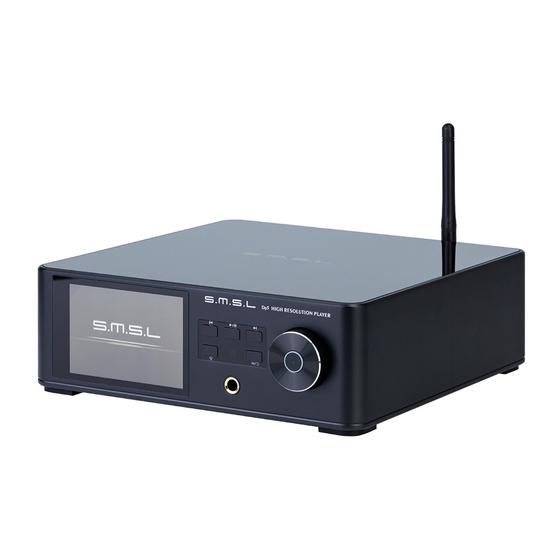

Parts names and functions Display screen AES output Power button, long press ON / OFF, Line output short press turn off display. Balance output "Previous" button, short press the previous Micro SD card slot song, long press to rewind. Power AC input Play / pause Network interface "Next"...
Page 32
Connecting your equipment Connect headphone and active speakers. Active Speaker...
Page 34
Device Connection” is displayed, and at the same time, the digital signal is output from this USB interface, and the other output of the DP5 are silent. When unplugged, “Audio Device Disconnect” is displayed, and the original output is restored.
Page 35
Connecting your equipment wall outlet with grounding Note: Please use a power outlet with a good grounding wire to ensure safety and avoid noise.
Page 36
Display 1.Main interface HiBy Link Playback/pause Current page Bluetooth volume Output mode Playback mode WIFI My Music Now Playing File browsing My music System setup Playback Network setup settings 2.Playback interface Sampling rate File format bit width MQA Studio 352.8kHz/24Bit Song name How Long Blues Singer...
Page 37
Operation: "Multifunction knob":In playlists,long press knob to delete a song. Please pay attention: The maximum number of DP5 song scans is 30,000, and it will not be scanned after exceeding. (Note: the "function key" of the remote control is the same as the machine...
Page 38
Display 4. File browsing interface The contents of the file browsing menu are: File Browser 1.Micro SD card folder. SD Card 2.LAN folder. 3.USB folders. (The display corresponds to the OTG_1 inserted U disk socket) OTG_2 Operation: "Multifunction knob": long press to Delete files . 5.
Page 39
SD card.) 2. Update music: Click start scan I S inverting D 2P memory devices connected to Fixed sample rate output DP5. 3. Output mode: DSD Output Mode headphone output USB Mode Line output. (Digital output is not affected)...
Page 40
Display 7.B-type USB mode: The B-type USB interface is set to “USB mode”. The unit is connected to the computer through the B-type USB interface to access and modify the micro SD card data of the machine. Please pop up before disconnecting. Please Eject Before Disconnecting USB Connected The B-type USB interface is set to “DAC mode”, the B-type USB interface...
Page 41
1.Bluetooth 1.1、HiBy Link: The HiBy Link function in the mobile device opens the HiBy player and docks with Dp5. The mobile device can browse the storage device in the unit and can be used as a Bluetooth remote controller. (Note: When using Bluetooth to input audio, be sure to turn off the HiBy Link of the...
Page 42
Display 1.2、High sound quality: Using advanced algorithms, the sound quality of Bluetooth transmission is improved. 1.3、Bluetooth scanning: Scan nearby devices that can connect to Bluetooth, you can choose to connect devices. Select the connected device and press and hold the “Multi-Function Middle Button” to delete the pairing. 2.WiFi: Select "searching Wifi"...
Page 43
Search for Serve r MUSI C BOX 3. DLNA: Dp5 connects to the network, the mobile device installs and opens “Bubble UPnP”, plays the song, pull the playback layout to the right, and selects to push to play on “SMSL DP5”.
Page 44
Select “ SMSL DP5 ” 4.AirPlay: As long as the DP5 is connected to the same local area network with your iOS device (iPhone、 iPod、 iTouch、 iPad or iTunes), it will appear in the AirPlay device list. You can simply send the audio stream to DP5 by selecting it.
Page 45
MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. The DP5 includes MQA technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording.
Page 46
4.Sending it back to our company for repairing. 5.Contact your S.M.S.L Audio reseller for a Return or replacement. Foshan Shuangmusanlin Technology Co., Ltd. Address: Rm205, 14th Building, Zhifu Industrial Park, Erhuan Rd, Xingtan, Shunde, Foshan, Guangdong, CN Tel: +86-757-27789994 http://www.smsl-audio.com/...
