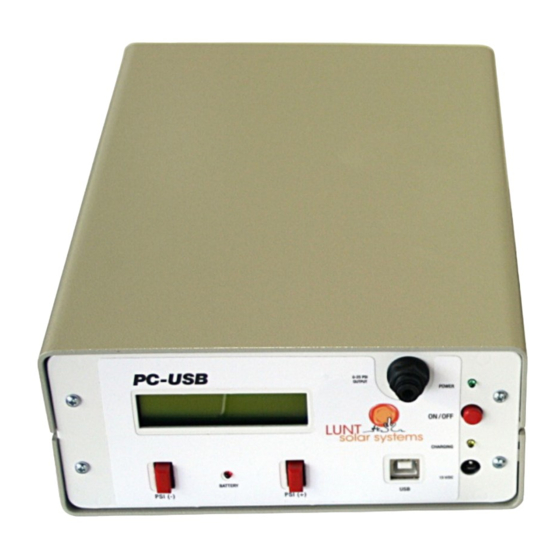

Instruction Manual PC-USB
Electronic Control unit with USB for one LUNT Pressure-Tuner system
The PC-USB is a microprocessor controlled pressure control system for the LUNT Pressure-
Tuner (PT) tuning technique. All existing LUNT Pressure-Tuner systems can be retrofitted to the
PC-USB controller via an included adapter. The controller can be manually operated, or via a
computer by USB connection.

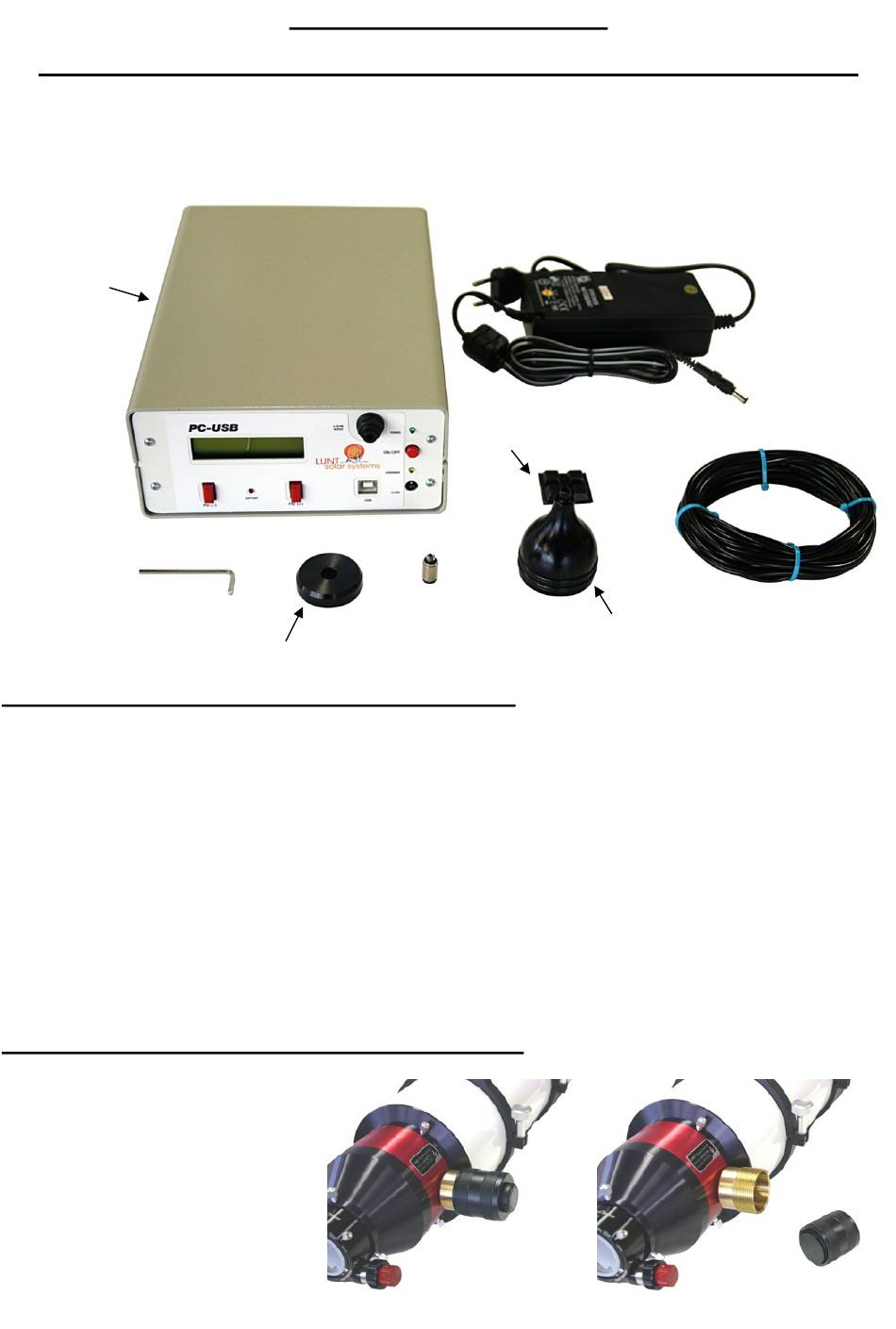

PC-USB
AC Adapter
with Cable
glueable
Pedestals
Hexagon-Wrench
Connecting-
Piston
Air-Pipe
Cover-Cap
Sleeve
Power connection and charging the internal battery
The PC-USB controller needs 15 V DC. The controller can be connected to a power socket with
100 to 240 V AC by using the included AC adapter. Simply insert the supplied AC adapter into
the power connection located at the front of the PC-USB (labeled with "15 VDC").
The PC-USB controller can also operate using the internal battery. If the PC-USB controller is
connected with an external power source, the internal battery will start charging and the
indicator light "Charging" will illuminate. The battery will also continue charging if the PC-USB
controller is off. After a full charge is performed the PC-USB controller should operate for more
than 8 hours under normal conditions without external power source.
The charger circuit will stop when the battery has reached full capacity. The AC adapter could
also be left in indefinitely if necessary.
Installing the PC-USB controller at a Pressure-Tuner
Remove the black handle from
the
brass-cylinder
of
the
Pressure-Tuner system at your
instrument.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lunt Solar Systems PC-USB
Summary of Contents for Lunt Solar Systems PC-USB
- Page 1 Power connection and charging the internal battery The PC-USB controller needs 15 V DC. The controller can be connected to a power socket with 100 to 240 V AC by using the included AC adapter. Simply insert the supplied AC adapter into the power connection located at the front of the PC-USB (labeled with “15 VDC”).
- Page 2 Pressure-Tuner. Make sure the air pipe is well seated in the connecting sleeve. At the front of the PC-USB controller you will also find a connecting sleeve for the air pipe (labeled “0-25 PSI Output”). Insert the other end of the air pipe into this connecting sleeve at the PC-USB controller.
- Page 3 "Goto center PSI?" to find the optimum setting instantly. When the PC-USB controller is turned off, it can of course remain still installed at the Pressure- Tuner. A new assembly and disassembly is not necessary every time.
- Page 4 Operating the PC-USB controller by computer The PC-USB can be connected to a computer by a USB cable (USB cable not included). At the front of the PC-USB you will find a USB-B port. At the description of the PC-USB on our...
