- Page 1 Flo™ 1700 Series Mobile Computing Workstation Operations Manual 400210 Revison H Copyright © 2005-2009 InterMetro Industries Corporation www.metro.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation...
- Page 3 This device must accept any interference received, including interference that may cause undesired operation. Regulatory Compliance This system was tested and complies with UL 60601-1, CAN/CSA C22.22 No.601.1 and IEC/EN 60601-1-1 medical safety standards. Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation...
- Page 4 Caution: To reduce the risk of electric shock, unplug the Flo 1700 Series Mobile Computing Workstation AC cord from an AC outlet and switch the ON/Extended Storage Switch to the Extended Storage (OFF) position before attempting any maintenance or cleaning. Turning off computers or disconnecting the AC power cord alone will not reduce the risk of electric shock because the Power Supply is internally powered by a battery.
- Page 5 DANGER: Risk of Explosion The Flo 1700 Series Mobile Computing Workstation and the Power Supply are not for use in hazardous (classified) locations. Do not use the Flo 1700 Series Mobile Computing Workstation, nor recharge the Power Supply battery, in oxygen enriched areas;...
- Page 6 3. Added Reference Documents table, including added power supply MPS-4007. 4. Corrected procedure for lowering and raising work surface. 5. Added additional Notices and caution to Power Savings section. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation...
-
Page 7: Table Of Contents
..........................21 Tilting Keyboard Tray Option ......................21 Storage Options ..........................23 Foot Rest Base ..........................24 Casters ..........................24 Flat Panel Display............................25 Computer ..............................27 Powering up the computer.........................28 Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... - Page 8 Computer Settings ..........................33 Flat Panel Display Settings ........................33 Troubleshooting ............................34 Technical Specifications ....................35 Flo 1700 Series Cart – Model 1750 Overall Cart ..................35 Flo 1700 Series Cart – Model 1760 Overall Cart ..................36 Power Supply............................36 Computer Equipment..........................36 Contacting InterMetro Industries Corporation ..............37 InterMetro Industries Corporation Contact Information................37...
-
Page 9: References
Flo MPS-4007 Li-Nano Power Supply Operations Manual Supplement 402547 Flo MPS-3111 SLA Power Supply Operations Manual Supplement 402548 Flo MPS-4002 NiMH Power Supply Operations Manual Supplement Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... -
Page 10: Introduction
In addition to being wireless, Flo 1700 Series contains its own power supply with rechargeable batteries, making it completely mobile and eliminating entangling power cords. -
Page 11: Features
Equipment Classification The Flo 1700 Series Mobile Computing Workstation is CSA certified with respect to electric shock, fire and mechanical hazards only in accordance with UL 60601-1 and CAN/CSA 22.2 No. 601.1 as Type B Patient Care Medical Equipment suitable for use in patient vicinities. -
Page 12: Important Product Notices
Important Product Notices The Flo 1700 Series Mobile Computing Workstation is only CSA certified if the equipment is left in its original configuration as shipped from InterMetro Industries Corporation. If the user alters the Mobile Computing Workstation by changing components on, adding components to, or deleting components from the workstation, this will void the CSA certification of the Mobile Computing Workstation and is expressly prohibited by InterMetro Industries Corporation. -
Page 13: Getting Started
Turning on the Power Supply If so equipped, the Power Supply of the Flo 1700 Series Mobile Computing Workstation must be turned on to power all the workstation equipment. The Power Supply is controlled by the “ON/Extended Storage” Switch located on the Power Supply that is typically mounted on the bottom of the workstation. - Page 14 AC cord is disconnected from an AC outlet. Please refer to the respective supplemental operations manual included with the Mobile Computing Workstation for the Power Supply installed for the proper way to completely remove DC power. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation...
-
Page 15: Powering Up The Computer Equipment
CD are shipped with the Mobile Computing Workstation. For setting-up the wireless LAN and connecting to the hospital network, consult your IT department. Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... -
Page 16: Operation
Operation Description of Major Components Depending on your order, your Flo 1700 Series Mobile Computing Workstation will be delivered in a specific configuration. The configuration will employ each of the following components: • Flo 1700 Base The Flo 1700 Base is common among all the different configurations. It is made of steel and aluminum with a pneumatic lift and employs a large work surface. -
Page 17: Flo 1700 Base

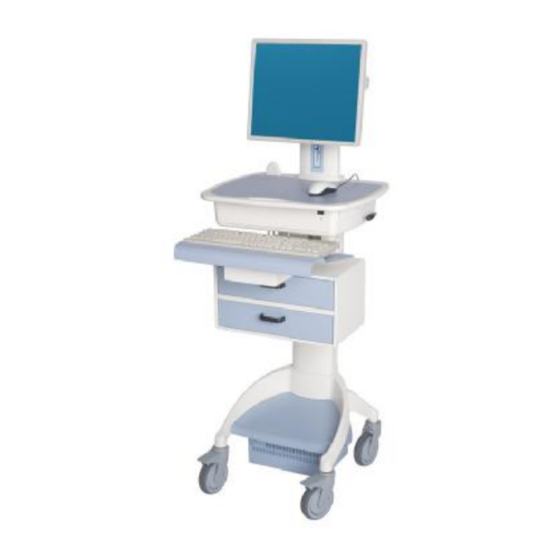

Flo 1700 Base The Flo 1700 Base is the backbone of every Flo 1700 Series Mobile Computing Workstation. Flo 1700 Series Base (shown with Monitor and Optional Storage Cabinet) The Base features casters to wheel it around easily, provides mounting hardware to mount the... -
Page 18: Writing Surface
If you need to lift a Flo 1700 Mobile Computing Workstation off the ground, pick it up at the wheelbase. Generally, this task requires two (2) people. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation... -
Page 19: Height Adjustment
While holding the height adjustment handle up, lift the writing surface to the desired height and then release the height adjustment handle. Flo 1700 cart at the highest position Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... - Page 20 While holding the height adjustment handle up, push the writing surface down to the desired height and then release the height adjustment handle. Flo 1700 cart in the lowest position Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation...
-
Page 21: Keyboard Tray
Use caution when moving the keyboard tray to avoid trapping fingers between the keyboard and the workstation base. Tilting Keyboard Tray Option The Flo 1700 Series Mobile Computing Workstation can be deployed with an optional tilting keyboard tray for ergonomic comfort. Tilting Keyboard Tray When the tray is fully extended, it can be adjusted by lifting the front edge until a click is heard, indicating the first and lowest tilt position, and then releasing it. - Page 22 Do not push the keyboard tray in while it is in a tilted position. Lift the tray all the way up and drop it back to the bottom position while holding the front edge of the tray before pushing it in. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation...
-
Page 23: Storage Options
Storage Options The Flo 1700 Series Mobile Computing Workstation can be deployed with storage designed to carry documents, accessories or supplies needed by a nurse or doctor. The basket is very sturdy and can hold virtually anything up to a maximum weight of 10 lbs. -
Page 24: Foot Rest Base
Foot Rest Base The base deck of the Flo 1700 Series Mobile Computing Workstation is designed to be used as a footrest while either standing or sitting. Placing your feet on the deck will not cause any problems with the power supply. -
Page 25: Flat Panel Display
The monitor position can be adjusted in all three axes: tilt up or down, Monitor Position swivel left to right, and rotate monitor face. Flo 1700 Monitor Position Adjustment Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... - Page 26 To rotate the monitor face, grab the sides with each hand and move in a circle to the position desired. Flo 1700 Monitor Turned to Right Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation...
-
Page 27: Computer
Mobile Computing Workstation. The computer is installed in the technology bay of your Flo 1700 Series Mobile Computing Workstation. In addition to the computer, the technology bay houses all the necessary cabling for monitor, mouse, keyboard, power conditioning to power the computer hardware and optional equipment, like barcode scanners or ELC-100 Electric Latching Cabinet. -
Page 28: Powering Up The Computer
If your problem is not addressed in the computer’s user manual, please consult your IT department. If the IT department determines a hardware defect, please contact InterMetro Customer Service. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation... -
Page 29: Power Supply
Supply that is typically mounted on the bottom of the Mobile Computing Workstation. In the “ON” position, the power supply provides power to the Flo 1700 Series Mobile Computing Workstation systems. In the “Extended Storage” position, power is removed from the workstation equipment. -
Page 30: Extended Storage
Notice: The functions of the Remote Fuel Gauge are detailed in the respective supplemental operations manual included with the workstation for the Power Supply installed. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation... -
Page 31: Maintenance
Mobile Computing Workstation for the Power Supply installed for requirements and details of periodic air filter cleaning and replacement. Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... -
Page 32: Power Supply Fuse Replacement
Please refer to the respective supplemental operations manual included with the Mobile Computing Workstation for the Power Supply installed for requirements and details on battery preparation for the Power Supply. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation... -
Page 33: Power Savings
Mobile Computing Workstation. See “Adjusting Monitor Parameters” in “Flat Panel Display” section above. Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... -
Page 34: Troubleshooting
Additional troubleshooting details are also provided in the Power Supply Operations Manual Supplement for the Power Supply and may be included in other manuals for equipment and software applications included with the workstation. Flo 1700 Series Mobile Computing Workstation Operations Manual InterMetro Industries Corporation... -
Page 35: Technical Specifications
FCC Part 15 Subpart B, Class A, Industry Canada Class A UL60601-1 and CSA C22.2 No. 601.1 Select models carry the following additional approvals: IEC/EN 60601-1-1 (Safety, Medical Equipment) IEC/EN 60601-1-2 (EMC, Medical Equipment) Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation... -
Page 36: Flo 1700 Series Cart - Model 1760 Overall Cart
Flo 1700 Series Mobile Computing Workstation. Computer Equipment For computer equipment, like computer, monitor, mouse, keyboard, etc. please refer to the equipments’ user manuals, which are supplied with your Flo 1700 Series Mobile Computing Workstation. Flo 1700 Series Mobile Computing Workstation Operations Manual... -
Page 37: Contacting Intermetro Industries Corporation
• Return the equipment to: InterMetro Industries Corporation 5801 Goshen Springs Road, Suite A Norcross, GA 30071 Flo 1700 Series Mobile Computing Workstation Operations Manual, Doc. No. 400210 Rev H InterMetro Industries Corporation...
