Summary of Contents for Commend G8-IAX Series
- Page 1 PRODUCT MANUAL ENGLISH G8-IAX G3-IAX VERSION 3.0/0616...
- Page 2 G8-IAX / G3-IAX Manufacturer’s reference: This equipment fulfils the requirements of the EU directive 2014/30/EU (EMC). Therefore, this equipment is CE-labelled. Keep this description in safe custody! Legal notice: The manufacturer guarantees the functionality of its products as described in the datasheets and/or tech- nical documentation.
-
Page 3: Table Of Contents
G8-IAX / G3-IAX Content Planning information Auto-dialler mode Features Call numbers and dialling sequences System requirements Outgoing call from Intercom system Network requirements Incoming call to the Intercom system Technical data Configuration CCT 800 – auto-dialler mode LED status indication Extent of supply PABX mode Outgoing phone call from Intercom system... -
Page 4: Planning Information

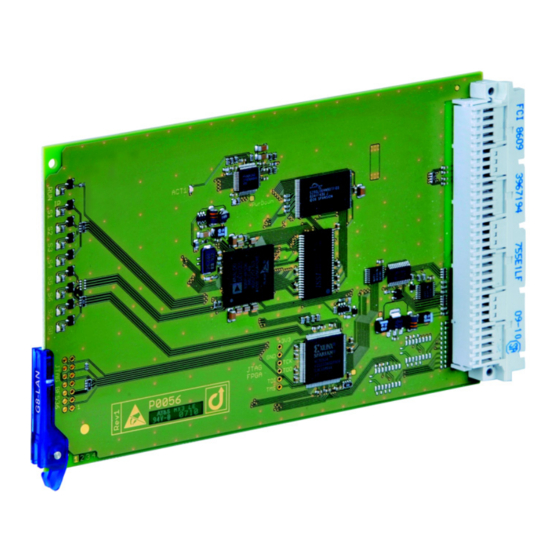

Planning information G8-IAX / G3-IAX Planning information The VoIP cards G8-IAX and G3-IAX allow integration of various VoIP standards via an IAX-capable VoIP server. Therefore, the VoIP cards provide a flexible VoIP interface for IAX connections – e.g. to G8-VOIPSERV. G3-IAX rev. -
Page 5: System Requirements
G8-IAX / G3-IAX Planning information Card versions and feature levels The VoIP card is available in the following versions and can be upgraded with the listed licences: G3-IAX-2B G8-IAX-2B L3-IAX-2C L8-IAX-4C L3-IAX-2D L8-IAX-4D L3-IAX-4B L8-IAX-8B L3-IAX-4C L8-IAX-8C L3-IAX-4D L8-IAX-8D Short overview available features The VoIP card is available in the feature levels B, C and D: ... -
Page 6: Technical Data
Planning information G8-IAX / G3-IAX Technical data Technical data G8-IAX Operating temperature range: 0 °C to +50 °C (32 °F to 122 °F) Storage temperature range: –20 °C to +60 °C (–4 °F to 140 °F) Relative humidity: 20% to 80% Plug: 96-way PC board connector according to DIN 41612 Network connection:... -
Page 7: Led Status Indication
G8-IAX / G3-IAX Planning information LED status indication Status-LEDs: G8-IAX G3-IAX (left) and G8-IAX (right) Blue LED: status VoIP card IAX (“RUN”): LED blinks in rhythm of one second: card is working correctly LED is permanently off: no power or hardware fault ... -
Page 8: Installation
Installation G8-IAX / G3-IAX Installation G8-IAX GE 800 NOTES: Installation of a G8-IAX to a GE 800 The G8-IAX card can be inserted in the slots “1” to “14”. Per GE 800, max. 14 cards can be installed. ... -
Page 9: G3-Iax
G8-IAX / G3-IAX Installation GE 300 NOTES: Installation of a G8-IAX to a GE 300 When using a GE 300 Intercom Server for the G8-IAX card, an interface housing GEI 300 is required (one GEI 300 per GE 300; the GEI 300 offers place for two interface cards). ... -
Page 10: System Overview
System overview G8-IAX / G3-IAX System overview The following section gives a short overview of the basic features of a Gx-IAX card. On the subsequent pages, the different features of the card are described in detail. (Phone) calls Calls in auto-dialler mode NOTES: Auto-dialler mode ... - Page 11 G8-IAX / G3-IAX System overview Phone calls in PABX mode NOTES: PABX mode In PABX mode, it is possible to make a phone call between Intercom station and VoIP phone. By pre-dialling the respective call number of the channel of the Gx-IAX card, it is possible to dial to a telephone within the VoIP network.
-
Page 12: Pre-Notes For Start-Up
Pre-notes for start-up G8-IAX / G3-IAX Pre-notes for start-up Speech channels Individual configuration per channel It is possible to carry out a separate individual configuration for each channel of the Gx-IAX card. This means, a separate speech connection to a VoIP server with individual features is available for each channel. -
Page 13: Speech Control
G8-IAX / G3-IAX Pre-notes for start-up Speech control A conversation between a VoIP phone and an Intercom station can be held in the modes duplex, full duplex (standard) or simplex. ATTENTION: Analogue subscribers When using full duplex for conversations with analogue subscribers, echo may occur depending on the respective volume level and constructional circumstances (e.g. - Page 14 Pre-notes for start-up G8-IAX / G3-IAX Alphanumeric caller ID For Intercom subscribers, it is possible to define a so-called “display text EE 811” as alphanumeric caller ID (at Subscriber > Naming). Indication of “display text EE 811” of an Intercom station For an outgoing call from the Intercom system, the configured caller ID of the calling station is indicated on the display of the VoIP phone.
-
Page 15: Pre-Configuration Voip Server
G8-IAX / G3-IAX Pre-notes for start-up Display indication dot-matrix display A configured “display text EE 811” of an IAX channel, via which the respective call is set up, is indicated on the display of dot-matrix display Intercom stations – besides the dialled call number and/or the call number of the caller. -
Page 16: Trunk Connection
Trunk connection G8-IAX / G3-IAX Trunk connection The coupling between Intercom Server and VoIP server is called trunk connection. In order to establish this connection, pre-configurations of the VoIP server and via CCT 800 are required. This required con- figuration as well as additional planning information are specified in the following sections. Planning information for IAX trunk connection Prior to the establish and configuration of a trunk connection between Intercom Server and VoIP server, the following questions shall be clarified:... - Page 17 G8-IAX / G3-IAX Trunk connection Overview and example The schematic illustration below shows an example with the following specifications: Three Gx-IAX cards – each registered at the VoIP server with a separate “user account”, i.e. with a separate user name and password: ...
-
Page 18: Configuration Cct 800 - Trunk Connection
Trunk connection G8-IAX / G3-IAX Configuration CCT 800 – trunk connection The network connection to the VoIP server has to be configured for the 1st channel of the Gx-IAX card: Interfaces > Gx-IAX > General Settings General IAX settings via CCT 800 ... -
Page 19: Auto-Dialler Mode
G8-IAX / G3-IAX Auto-dialler mode Auto-dialler mode A call from an Intercom station or an input message will be transferred to a pre-defined call number. If the call is not answered by this telephone or if the telephone is busy, the call will be transferred to an- other call number after a configurable time. -
Page 20: Outgoing Call From Intercom System
Auto-dialler mode G8-IAX / G3-IAX Outgoing call from Intercom system Initiate call For an outgoing call in auto-dialler mode, four possibilities are available: Call via dialling interface: Dial the call number of the respective channel of the Gx-IAX card at the Intercom station. - Page 21 G8-IAX / G3-IAX Auto-dialler mode Restart of the dialling sequence In case the call is taken over by none of the configured call numbers of the respective dialling sequence, two possibilities for restarting the sequence are available: Reissue of call by pressing the call button If a call request is not answered, this call remains at the Intercom station and the control desk –...
-
Page 22: Incoming Call To The Intercom System
Auto-dialler mode G8-IAX / G3-IAX Incoming call to the Intercom system Initiate call From the VoIP phone, a call to an Intercom station can be built up by means of the respective dial prefix (see page 20) or other functions can be carried out in the Intercom Server. ... -
Page 23: Configuration Cct 800 - Auto-Dialler Mode
G8-IAX / G3-IAX Auto-dialler mode Configuration CCT 800 – auto-dialler mode It is possible to carry out a separate, individual configuration for each channel of a Gx-IAX card (see also ”Speech channels” on page 12). ATTENTION: Auto-dialler mode For auto-dialler mode, min. feature level “D” is required. For further information, see page Password and switch-off times ... - Page 24 Auto-dialler mode G8-IAX / G3-IAX Call numbers and dialling sequences In the column call numbers, enter up to 8 different call numbers (max. 24 digits). Thereby, the char- acters “0” to “9”, “*” and “#” are allowed. In the column Sequences, enter up to 8 different dialling sequences with which the order of the up to 8 entered call numbers are defined (max.
- Page 25 G8-IAX / G3-IAX Auto-dialler mode In the example on the previous page (screenshot), one input triggers the switch-over of the dialling se- quences “1” and “2” for the channels “1” to “4” (of a Gx-IAX card): Level input: Break (dialling sequence “1” is active) ...
-
Page 26: Pabx Mode
PABX mode G8-IAX / G3-IAX PABX mode Outgoing phone call from Intercom system Phone call by dialling channel manually At the Intercom station, dial the call number of a channel of the Gx-IAX card. As soon as the call to the respective channel is set up, the Intercom station receives the “dial tone” signal. - Page 27 G8-IAX / G3-IAX PABX mode Dialling timeout (“block dialling”) The dialling of a call number in PABX mode is carried out after a short timeout by default (whether the channel is dialled manually or direct outward dialling is used – “block dialling”). ...
-
Page 28: Call Request In Pabx Mode
PABX mode G8-IAX / G3-IAX Call request in PABX mode For call requests and input messages, it is possible to combine auto-dialler mode with PABX mode. This means, at initiation of a call request or input message, automatically a switch-over to “Auto-di- aller mode”... -
Page 29: Configuration Cct 800 - Pabx Mode
G8-IAX / G3-IAX PABX mode Configuration CCT 800 – PABX mode It is possible to carry out a separate individual configuration for each channel of a Gx-IAX card (see also ”Speech channels” on page 12). Password and switch-off times Interfaces > IAX > Telephone functions > Call number channel PABX mode via CCT 800 ... - Page 30 PABX mode G8-IAX / G3-IAX Phone call by dialling channel manually For initiate a phone call by dialling the respective channel manually, no particular configuration is required (at the Intercom station, the call number of the channel and the VoIP phone has to be di- alled).
- Page 31 G8-IAX / G3-IAX PABX mode After dialling at telephone – outgoing phone call For outgoing phone calls initiated by dialling the channel manually, after dialling on the VoIP phone can be enabled. Interfaces > IAX Activate the checkbox After-Dial from telephone for the respective channel via which the call to the phone shall be set up (therewith, e.g.
- Page 32 PABX mode G8-IAX / G3-IAX Call request in PABX mode NOTE: Further information For further information about the configuration of the features listed below, see manual “PRO 800 Basic”. Configure the “Dialling Sequences” and “call numbers” as described at “Configuration CCT 800 –...
-
Page 33: Audio Streaming
G8-IAX / G3-IAX Audio streaming Audio streaming ATTENTION: Audio streaming In order to use the audio streaming function, a corresponding pre-configuration of the VoIP server is required. GOOD TO KNOW: VoIP – audio streaming For each audio streaming function, appropriate scripts on the VoIP server have to be programmed with a corresponding dial number for activation of the respective script (e.g. - Page 34 Audio streaming G8-IAX / G3-IAX Define channels as recorders In order that speech recording is possible, the desired channels have to be configured as recorders beforehand. For these channels, configure the “Auto-dialler mode” as “trigger” for the corresponding “dial number” to activate speech recording on the VoIP server. This also means that this “dial number” is configured as “call number”...
- Page 35 G8-IAX / G3-IAX Audio streaming Avoiding double recordings By switching channels in parallel to a master channel, it is possible to avoid double recordings of the same audio signal. This feature is available for all recordable audio signals, i.e.: conversations, alarms, all calls and group calls as well as conferences and radio conferences.
-
Page 36: Audio Streaming By Feed-In (4T, 6T)
Audio streaming G8-IAX / G3-IAX Audio streaming by feed-in (4T, 6T) The channels of the Gx-IAX card can be configured for feed-in of audio signals (e.g. music, news or stock exchange information). The respective audio signal can be switched on at multiple “receivers” (depending on the configuration), i.e. -
Page 37: Configuration Cct 800 - Audio Streaming
G8-IAX / G3-IAX Audio streaming Configuration CCT 800 – audio streaming Define channels as recorders Subscriber > Speech recording > Audio channel - allocation Audio channel allocation via CCT 800 Right click on the desired channel of the Gx-IAX card and select Add Audio channel - allocation in order to activate the recorder function for this channel. - Page 38 Audio streaming G8-IAX / G3-IAX Define subscribers for speech recording Subscriber > Speech recording > Recording Selecting recorders via CCT 800 In the drop-down lists Conversation, Alarm, All/Group Call and Conference, select recorders for the required function. NOTE: Master recorders only In this drop-down lists, it is only possible to select master recorders.
-
Page 39: Appendix
G8-IAX / G3-IAX Appendix Appendix After dialling functions On the VoIP phone, the following “after diallings” (similar to an Intercom station) are available: ATTENTION: Outgoing phone calls by dialling channel manually In order to be able to use the after dialling function on the VoIP phone in PABX mode, an appropriate configuration via CCT 800 is required (see ”After dialling at telephone –... -
Page 40: Line Fault Monitoring For A Channel
Appendix G8-IAX / G3-IAX Line fault monitoring for a channel For a channel of the Gx-IAX card allocated to a central control desk (for which a call request to a central control desk is configured), “line fault monitoring” can be configured (in the same way as for a Inter- com station subscriber). -
Page 41: Conferences (6T, 7T And 8T)
G8-IAX / G3-IAX Appendix Conferences (6T, 7T and 8T) NOTE: Further information For further information about conferences, see manual “PRO 800 Basic”. The following features of conferences are available for VoIP subscribers connected to a Gx-IAX card: 6T: radio conference ... -
Page 42: Technical Support
Technical Support G8-IAX / G3-IAX Technical Support For more information about our products and services, visit: www.software-manuals.com 3.0/0616...
