Shur-Co Drivemaxx Owner's Manual

Swing auger drive kit
Hide thumbs

Advertisement

Quick Links

Download this manual
P/N 1127298 Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Drivemaxx and is the answer not in the manual?

Questions and answers

Summary of Contents for Shur-Co Drivemaxx

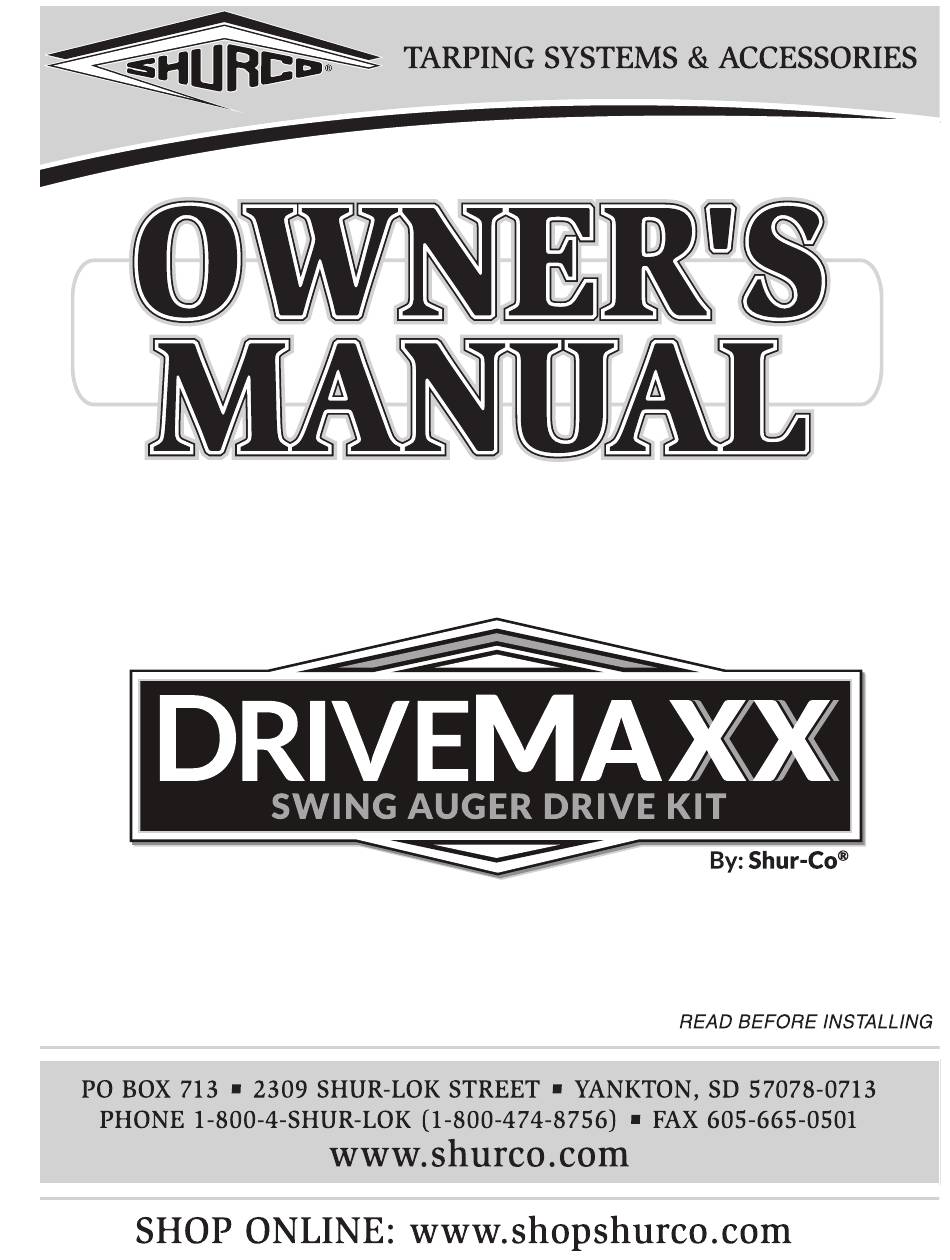

  • Page 1 P/N 1127298 Rev. B...
  • Page 2 Shur-Co , LLC products will void this product warranty. ® at 866-748-7435, and sent, with freight paid by us, to Shur-Co , LLC, 2309 ® *Certain products have specifi c warranties that differ from this warranty, for example motors and elec- Shur-Lok St., PO Box 713, Yankton, SD 57078.

  • Page 3: Table Of Contents

    DriveMaxx™ - Swing Auger Drive Kit P/N 1127298 Rev. B MESSAGE TO OWNERS TABLE OF CONTENTS Thank you for buying this tarping system from Shur-Co . We appreci- ® Hardware Identification ...............1 ate your confidence in our products. Please read and thoroughly un- Drive Brace Installation ..............2-3...

  • Page 4: Hardware Identification

    Hardware Identification P/N 1127298 Rev. B Inspect all parts in your DriveMaxx™ electric kit upon arrival. 1704308 Flanged Screw #10 x 1/2" 1705913 Nylon Lock Nut - 1/2" - Black 1705920 Cap Screw - 1/2″ x 1-1/2″ - Black 1705911 Flat Washer - 1/2" - Black 1701042 Cap Screw 1/2"...

  • Page 5: Drive Brace Installation

    Drive Brace Installation P/N 1127298 Rev. B Item Part # Description 1. 1127464 Drive Brace - 10″ to 11″ 1127468 Drive Brace - 11″ to 12″ 1127229 Drive Brace - 12″ to 13″ 1127424 Drive Brace - 13″ to 14″ 1127273 Drive Brace - 14″...
  • Page 6 Drive Brace Installation - continued P/N 1127298 Rev. B STEP 3A: If distance “A” is greater than 3-1/2″ from flange or STEP 3C: Distance “A” is less than 2-1/2″ from flange, remove if there is no flange, remove existing hardware. Drill existing hardware.

  • Page 7: Jack Installation

    Jack Installation P/N 1127298 Rev. B Item Part # Description 1. 1128470 Main Beam 2. 1127235 Jack 2-Hole 3. 1128578 Jack 2-Hole Dual E. 1705914 Cap Screw - 1/2″ x 3-1/4″ F. 1705913 Nylon Nut - 1/2″ STEP 1: Remove bolt and nylon nut from main beam.

  • Page 8: Main Beam To Swing Auger Installation

    Main Beam To Swing Auger Installation P/N 1127298 Rev. B Item Part # Description 1. 1127230 Wheel Counter-Clockwise 2. 1127234 Wheel Clockwise 3. 1127291 Tube Band Jack Mount - 8″ 1127250 Tube Band Jack Mount - 10″ 1127252 Tube Band Jack Mount - 12″ 1127293 Tube Band Jack Mount - 13″...
  • Page 9 Main Beam To Swing Auger Installation - continued P/N 1127298 Rev. B STEP 3: Tighten nylon nuts STEP 6: Turn jack handle until jack is in fully down position. at transition box. Then back nuts off 1/4 turn so drive brace can rotate on bolt. jack fully down pivot brace...
  • Page 10 Main Beam To Swing Auger Installation - continued P/N 1127298 Rev. B STEP 8: Secure jack plate to tube band jack mount using hex STEP 10: Both 14" and 16" auger tubes will use two tube band bolt , two flat washers between tube band jack jack mount bands.
  • Page 11 Main Beam To Swing Auger Installation - continued P/N 1127298 Rev. B STEP 13: Remove wood block and lower drive wheels to ground. NOTE: Next two steps for 14" and 16" augers only. STEP 11: Lower main beam down to wooden blocks. Adjust left side jack so it is extended to same length as righthand jack.

  • Page 12: Control Box Installation

    Control Box Installation P/N 1127298 Rev. B Item Part # Description 1. 1128570 Control Panel Mounting Plate 2. 1128576 Control Assembly SMART2™ w/SMART2™ LiteALL™ 1128575 Control Assembly SMART3™ w/SMART3™ LiteALL™ 3. 1128572 LiteALL™ w/Magnetic Mount A. 1704308 Flanged Screw - #10 x 1/2″ H.
  • Page 13 Control Box Installation - continued P/N 1127298 Rev. B STEP 4: Insert slotted half of hose clamp fashener into STEP 6: Insert WeatherPack™ end of LiteALL™ into open square hole of lower bands, approximately 3-1/5" hole of bottom of control panel and secure with flange from end of screw half of hose clamp fastener screws STEP 5: Insert end of slotted fastener into end of screw fastener...
  • Page 14 Control Box Installation - continued P/N 1127298 Rev. B STEP 9: Run SMARTwire™ from rear of control box under STEP 11: Working up swing auger tube, gently pull SMART- swing auger tube and plug female end into male end. wire™ snug (under swing auger tube) and secure with 60″...

  • Page 15: Decal Installation

    4. When direction of travel has been verified, run swing auger in both directions, verifying it moves freely and along intended work path. NOTE: If DriveMaxx™ wheels spin but do not move swing auger, turn jack handle to lower wheels to increase tranction.
