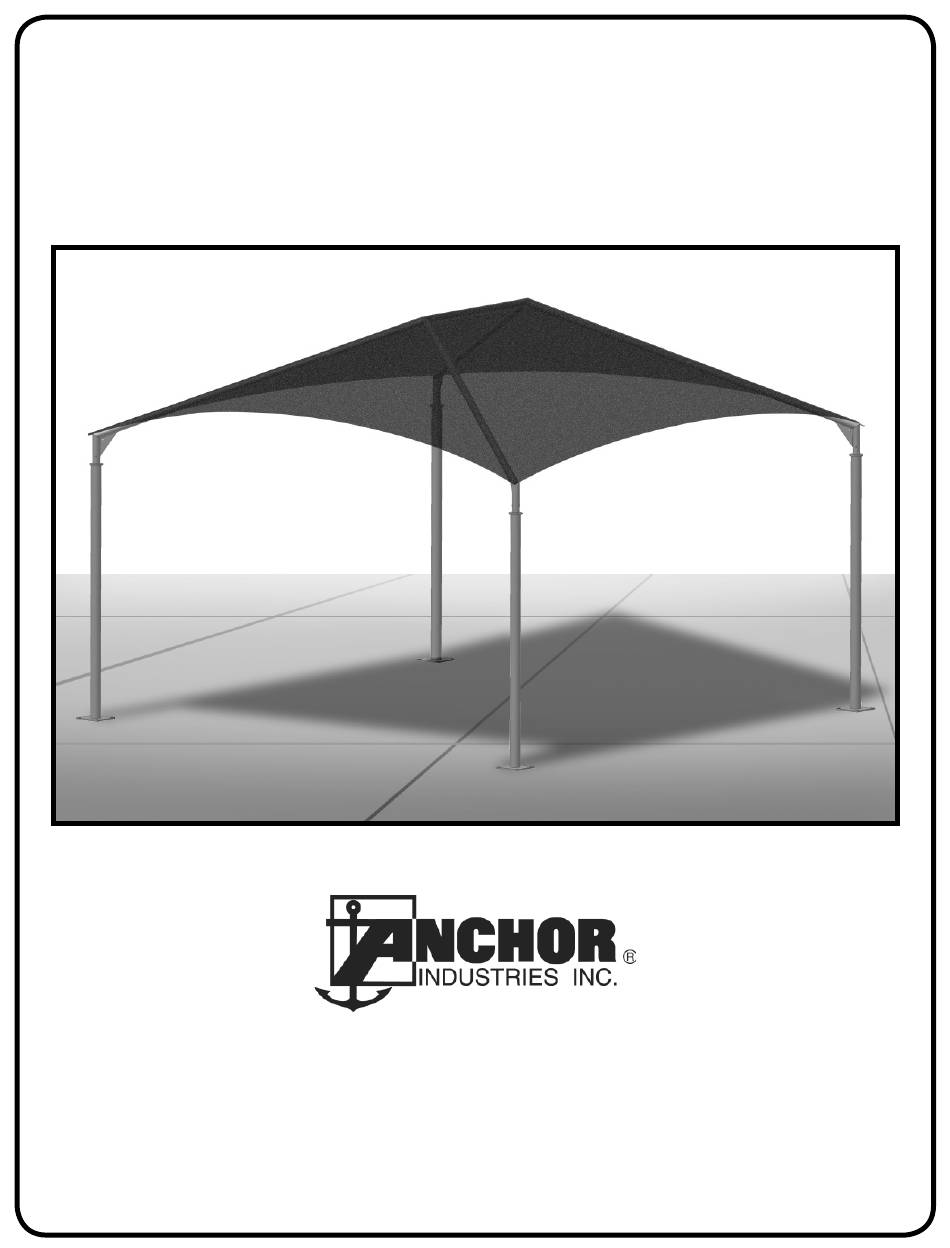

- Page 1 Perfectshade ® Assembly Instructions PHONE: 800-322-8368 SALES OFFICES: or 812-867-2421 PRODUCTION FACILITIES: 7701 HIGHWAY 41 N FAX: 812-867-4636 EVANSVILLE, IN EVANSVILLE, IN 47725 USA EMAIL: custdiv@anchorinc.com www.anchorinc.com PS 1014 EC 4829...
- Page 2 Warning: The Perfect Shade Structure is intended for concrete Install only. Installer is solely re- sponsible for evaluating the quality of the concrete and its suitability for this structure. Concrete installation surface must be level. Manpower Required: Three experienced installers should be able to assemble any size frame with fabric in two hours. Caution: Please read through this assembly manual completely before beginning your installation.
- Page 3 Step 1: Choice of 1/2” diameter anchoring devices are at the discretion of the customer and not supplied by Anchor Indus- tries. Place anchoring devices as shown on the plan view below. (4) anchoring devices per base plate. Note: For Your Convenience, (1) Template is supplied at the center of this manual.
- Page 4 Note the orientation of the corners to the ridge. Base plates MUST be laid out in this order. -- AA, BB, CC and then DD. Peak Weldments Corner CC Base Plate Template Corner DD Base Plate Ridge Template Corner BB 1st Base Plate Template Corner AA...
- Page 5 Step 5 Figure 5 Attach the fi rst hip. Lift the Peak end of the hip up by climb- ing a ladder (ladder placed at the approximate position of the peak) (See Figure 5). Another person at the upright on a ladder must direct the person at the peak end of the hip so that it may be slipped into place on the upright.
- Page 6 Step 13 Seam running Remove fabric from bag. Do not drag over concrete or Ridge perpendicular other rough surfaces as this could damage the fabric. to ridge. Carry the fabric up the ladder to the ridge. Throw the fabric over the ridge as shown in Figure 9. Be certain that the fabric is right side up with the seams run- ning perpendicular to the ridge.
- Page 7 Step 20 For 20’ frame, attach the ropes from the installation kit (sold separately) to the eyebolts by slipping one end of the rope through the eyebolt and then slip the other end through that loop so that the rope is extended its full length. At- tach the loose end of the come-a-long to the end loop and expand the come-a-long all the way out so it is close to the wire rope connection corner as shown in Figure 14.
- Page 8 PERFECT SHADE EMBEDDED IN CONCRETE ALTERNATE INSTALLATION INSTRUCTIONS This page must be used in conjunction with standard Perfect Shade Installation Instructions When installing a frame that will be embedded in concrete, frame must be assembled prior to setting in concrete. Step 1 Alternate Using Dimension Chart in Step 1, dig (4) 1’-3”...
- Page 9 Regardless of the number of stakes we suggest, we make no representation or warranty as to whether this speci c number of stakes will meet the local tent code. Anchor does not, nor can it make any suggestions, representation, or warranties about the adequate staking required at each speci c installation site.
