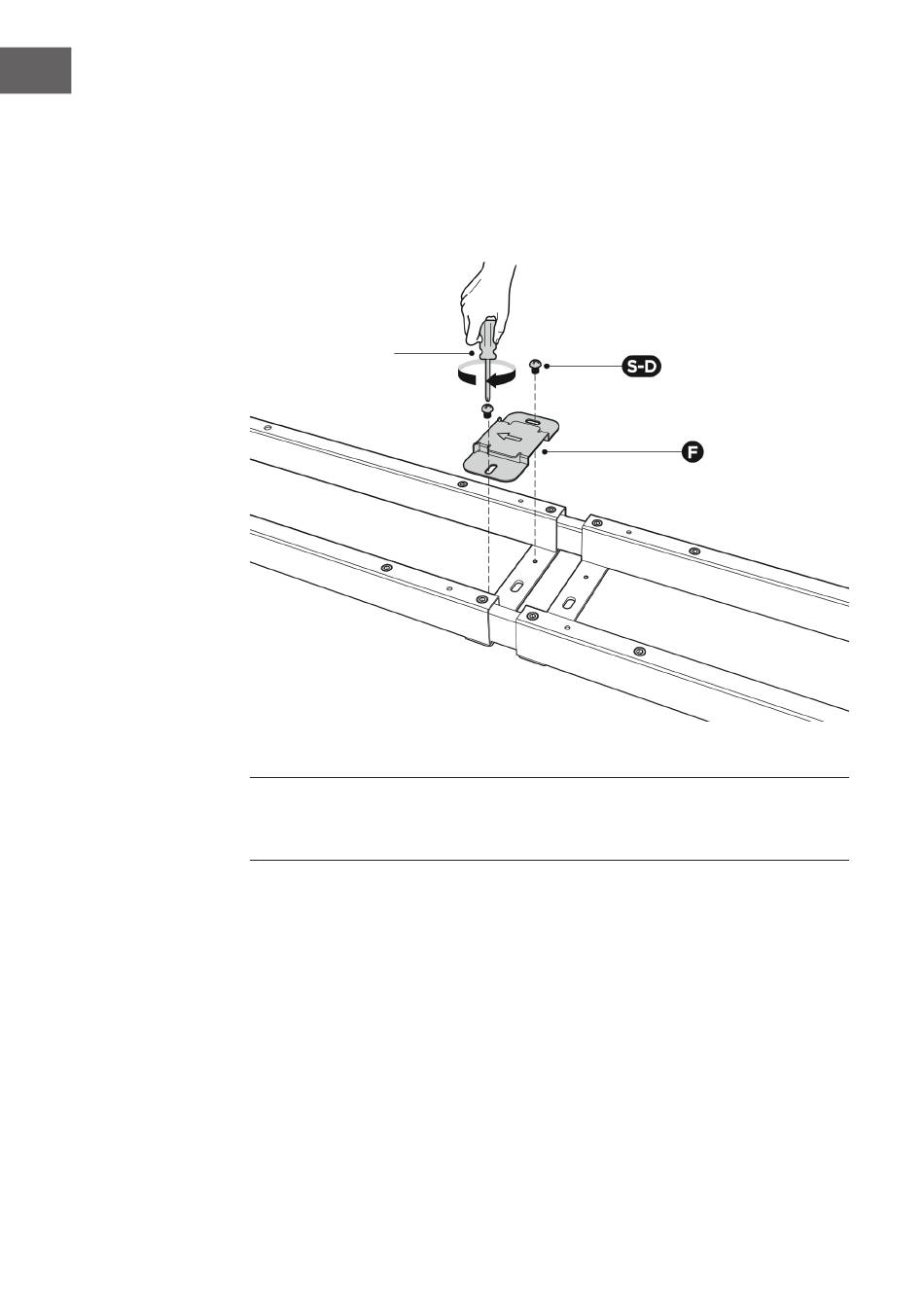

Assembling the Fixing Plate
Align the mounting holes on the fixing plate with the screw holes as shown.
Attach the fixing plate (F) on the center of the crossbar with 2 screws (S-D)
using a Phillips screwdriver.
Phillips
Screwdriver
NOTE: The arrow on the fixing plate indicates the direction of sliding in the
control box. Follow the direction of the arrow to mount the control box in the
next step.
