Summary of Contents for Omicron VBO3

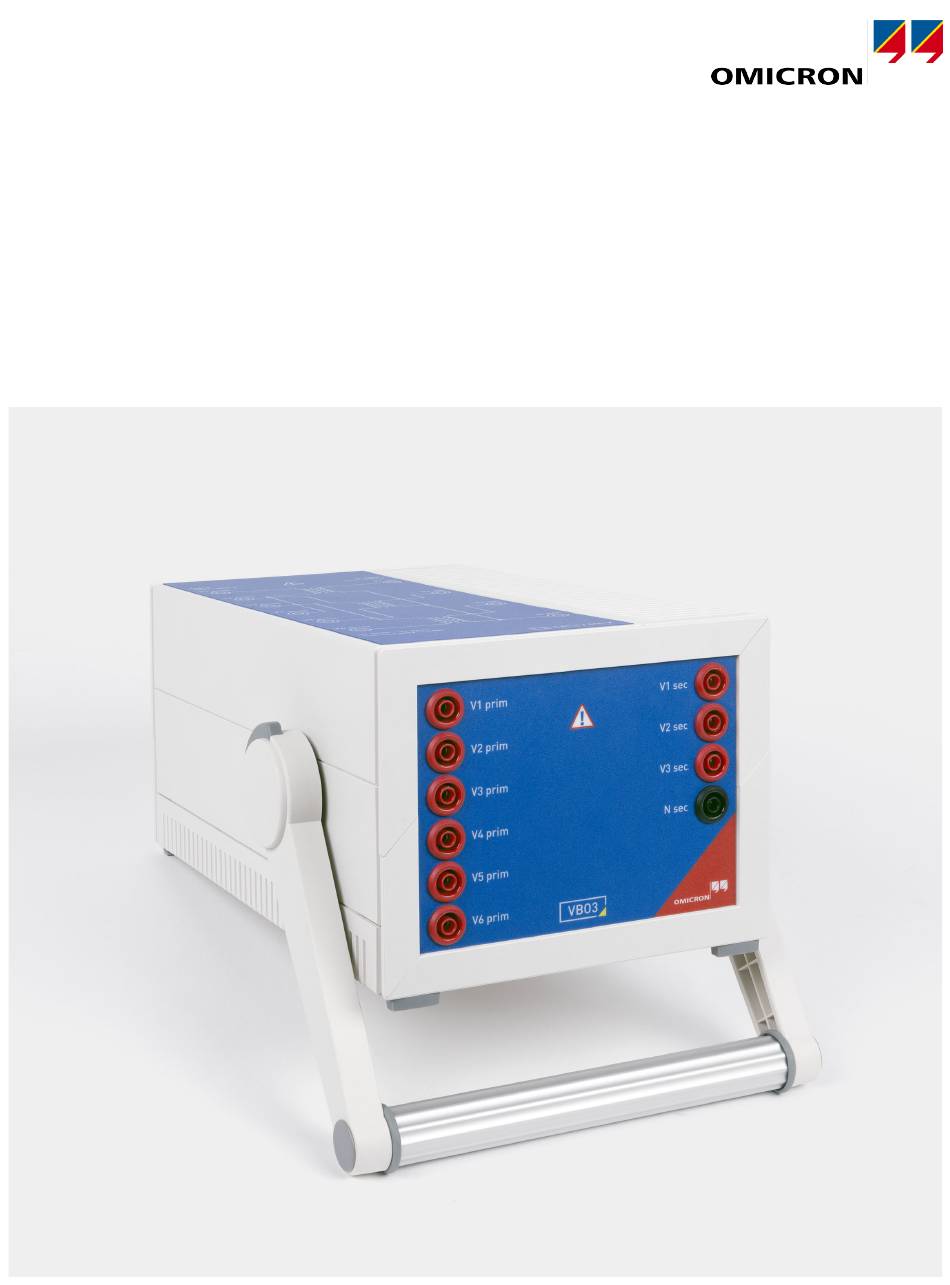

- Page 1 VBO3 User Manual...
- Page 2 The user is responsible for every application that makes use of an OMICRON product. OMICRON electronics translates this manual from the source language English into a number of other languages. Any translation of this manual is done for local requirements, and in the event of a dispute between the English and a non-English version, the English version of this manual shall govern.
-
Page 3: Table Of Contents
Safe operation procedures ....................Operator qualifications ....................... Device overview ....................... Circuit diagram ......................... 10 Wiring ..........................11 Connecting VBO3 to a CMC 430 ..................12 5.1.1 Max. 300 V output voltage ......................... 5.1.2 Max. 600 V output voltage ......................... Connecting VBO3 to other CMCs ..................14 Configuring VBO3 in the control software .............. -
Page 4: About This Manual
About this manual The purpose of this user manual is to familiarize you with VBO3 and to show you how to use it safely, properly, and efficiently. Following the instructions in this user manual will help you to prevent danger, repair costs, and possible down time due to incorrect operation, and it will help you to maintain the reliability and life of VBO3. -
Page 5: Introduction
VBO3 is a voltage transformer and used as an accessory for OMICRON's CMC test sets. The device is intended for use with CMC test sets only. VBO3 transforms a CMC's output voltages of 0 ... 300 V to 0 ... 600 V. -
Page 6: Cleaning And Disposal
VBO3 User Manual Cleaning and disposal 1.4.1 Cleaning To clean VBO3, use a cloth dampened with isopropanol alcohol. Prior to cleaning, always disconnect VBO3 from the CMC test set and from the test object. 1.4.2 Information for disposal and recycling This device (including all accessories) is not intended for household use. -
Page 7: Safety Instructions
Equipment damage or loss of data possible. Rules for use ► VBO3 and its accessories must only be used when in a technically sound condition. Its use must be in accordance with the safety regulations for the specific job site and application. -
Page 8: Safe Operation Procedures
► Only work in well lit areas. If there is not enough daylight, use a strong light to make sure that you see everything and so ensure your safety. ► Keep your work area clean to avoid accidents. ► If VBO3 seems to be functioning improperly or has visible damages, please contact the OMICRON Technical Support (→ page 23). Operator qualifications ►... -
Page 9: Device Overview
Voltage input triple 2 0 ... 300 V (without N) Handle (detachable) If required, you can create the neutral phase for input triple 1 by short-circuiting the phases V4 prim, V5 prim, and V6 prim (→ Wiring on page 11). OMICRON... -
Page 10: Circuit Diagram
VBO3 User Manual Circuit diagram Input Output max. 300 V max. 600 V V1 prim V1 sec V2 prim V2 sec V3 prim V4 prim V3 sec V5 prim V6 prim N sec OMICRON... -
Page 11: Wiring
Wiring Wiring You can connect VBO3 to CMC 430 test sets as well as to other OMICRON CMC test sets (CMC 256plus, CMC 310, CMC 353, and CMC 356). Note, however, that the wiring and the configuration in the Test Universe software are different depending on the respective use case. For more information on how to configure the control software, see page 17. -
Page 12: Connecting Vbo3 To A Cmc 430
5.1.1 Max. 300 V output voltage There is no star point at the VBO3 voltage inputs. Usually, a star point is not necessary for use with a CMC 430 test set. However, if you would like to use the CMC 430 like one of OMICRON's other CMC test sets and require an output voltage of only max. -
Page 13: Max. 600 V Output Voltage
5.1.2 Max. 600 V output voltage There is no star point at the VBO3 voltage inputs. However, a star point is not necessary for use with a CMC 430 test set when an output voltage of 0 ... 600 V is required. You can simply connect the voltage outputs of the CMC 430 to the VBO3 inputs using connection cables with 4 mm safety banana plugs (included in the delivery). -
Page 14: Connecting Vbo3 To Other Cmcs
Connecting VBO3 to other CMCs There is no star point at the VBO3 voltage inputs. Therefore, you need to create one when connecting a CMC test set other than the CMC 430 (i.e., the CMC 256plus, CMC 310, CMC 353, or CMC 356): •... -
Page 15: Configuring Vbo3 In The Control Software
Configuring VBO3 in the control software Configuring VBO3 in the control software Configuration in Test Universe To configure the voltage outputs in Test Universe: 1. Launch a Test Universe module of your choice, and go to the Hardware Configuration. 2. On the General tab, select your CMC from the Test Set(s) list. - Page 16 VBO3 User Manual • CMC 430 with max. 150 V output voltage: Select a 3 x 150 V configuration. Example: • CMC 430 with max. 600 V output voltage: Select a 3 x 300 V configuration. Example: 5. Click the Connect VT button.
-
Page 17: Calculation Of Voltage Ratio
Configuring VBO3 in the control software Calculation of voltage ratio Without load, the voltage ratio between the primary and secondary side of VBO3 is roughly 1 : 2.16. In real-life testing scenarios with load, however, the voltage ratio will be lower. To ensure accurate testing conditions, you need to determine the true voltage ratio under load conditions and enter the corresponding value in Test Universe. - Page 18 1. Connect the CMC test set to VBO3 (as shown in section Wiring on page 11). 2. Connect the load by connecting the VBO3 secondary outputs to the test object. 3. Connect the multimeter as shown in the example below. Multimeter...
- Page 19 Configuring VBO3 in the control software 6. In Test Universe, go to the Output Configuration Details dialog (→ page 15), click the Connect VT button, and enter the average ratio in the Amplification field. OMICRON...
-
Page 20: Setup With Omicron Transport Case
Setup with OMICRON transport case If you are using VBO3 in combination with a CMC 430, you can create a joint test setup with both devices in an OMICRON transport case. Simply detach VBO3's handle to conveniently use the voltage transformer without needing to take it out of the transport case. -
Page 21: Transportation With Omicron Trolley
Transportation with OMICRON trolley Transportation with OMICRON trolley VBO3 is delivered with a carry bag that can easily be placed on an OMICRON trolley (order number VEHP0029) together with a CMC 430 test set and an additional accessory bag (order number VEHP0030). -
Page 22: Technical Data
50/60 Hz Nominal power 33 VA per phase Protection class of VBO3 voltage transformer II (for CAT III / 300 V , CAT II / 600 V) Measurement category for VBO3 cables CAT III / 300V , CAT II / 600 V... -
Page 23: Support
Americas: +1 713 830-4660 or +1 800-OMICRON Asia-Pacific: +852 3767 5500 Europe / Middle East / Africa: +43 59495 4444 Additionally, you can find the OMICRON Service Center or OMICRON Sales Partner closest to you at www.omicronenergy.com Customer Portal - stay informed www.omicronenergy.com/customer... - Page 24 VBO3 User Manual OMICRON...
- Page 25 ENU 1210 05 02...
