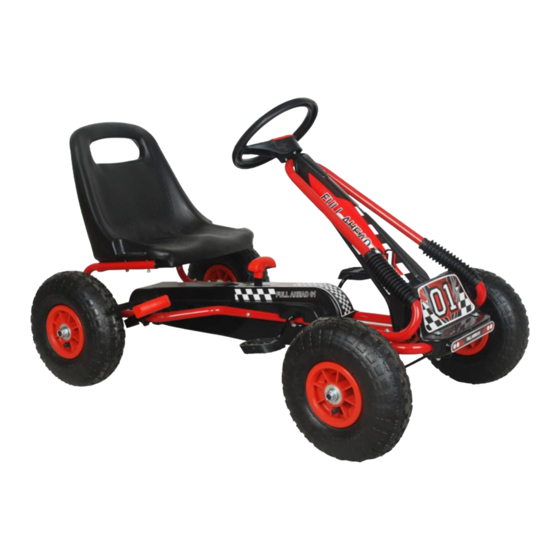

Summary of Contents for Oypla Kids Red Pedal Go Kart

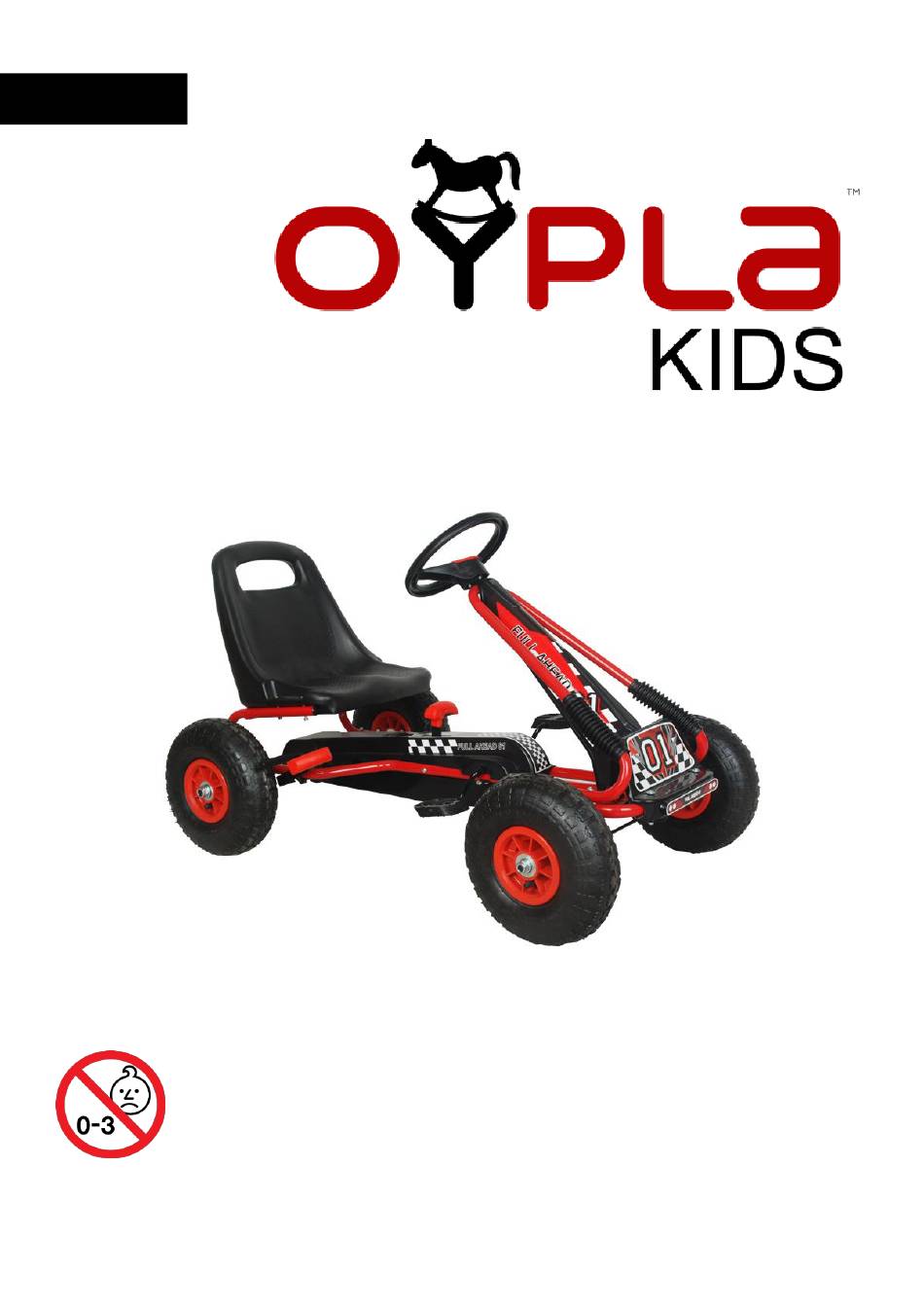

- Page 1 User Manual Red Pedal Go Kart User Manual – 3643 – V1.1...
- Page 2 Safety Instructions Notice: Ensure you read and fully understand instructions before use While every attempt is made to ensure the highest degree of protection in all equipment, we cannot guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold on this condition, which no representative of the company can waive or change ...
- Page 3 Assembly Instructions Parts List: Please check you have all parts below before attempting to assemble this product. If you are missing any of the below parts, please contact Oypla customer services: cservice@oypla.com Steering Wheel Seat Steering Column Front Frame Front Panel Nose Plate 2x M5*50 Bolts 2x M5*45 Bolts...
- Page 4 1. Attach the front frame to the car chassis and secure by using M5*45 bolts 2. Install the seat to the kart frame by attaching the four M5*40 bolts to the seat support Note: The seat can be installed on two different levels, the seat support has four holes on each side, two holes on each side are used to attach the seat using two M5*40 bolts on each side.
- Page 5 5. Push the steering wheel onto the end of the steering column and fix into place with one M8 nut. Replace the cap onto the steering wheel after tightening the nut. 6. Fix the nose plate to the front of the kart by using two 5*50 screws Imported by Oypla.com LLP, Uxbridge, UB8 2FX USER MANUAL Model No: 3643 –...
