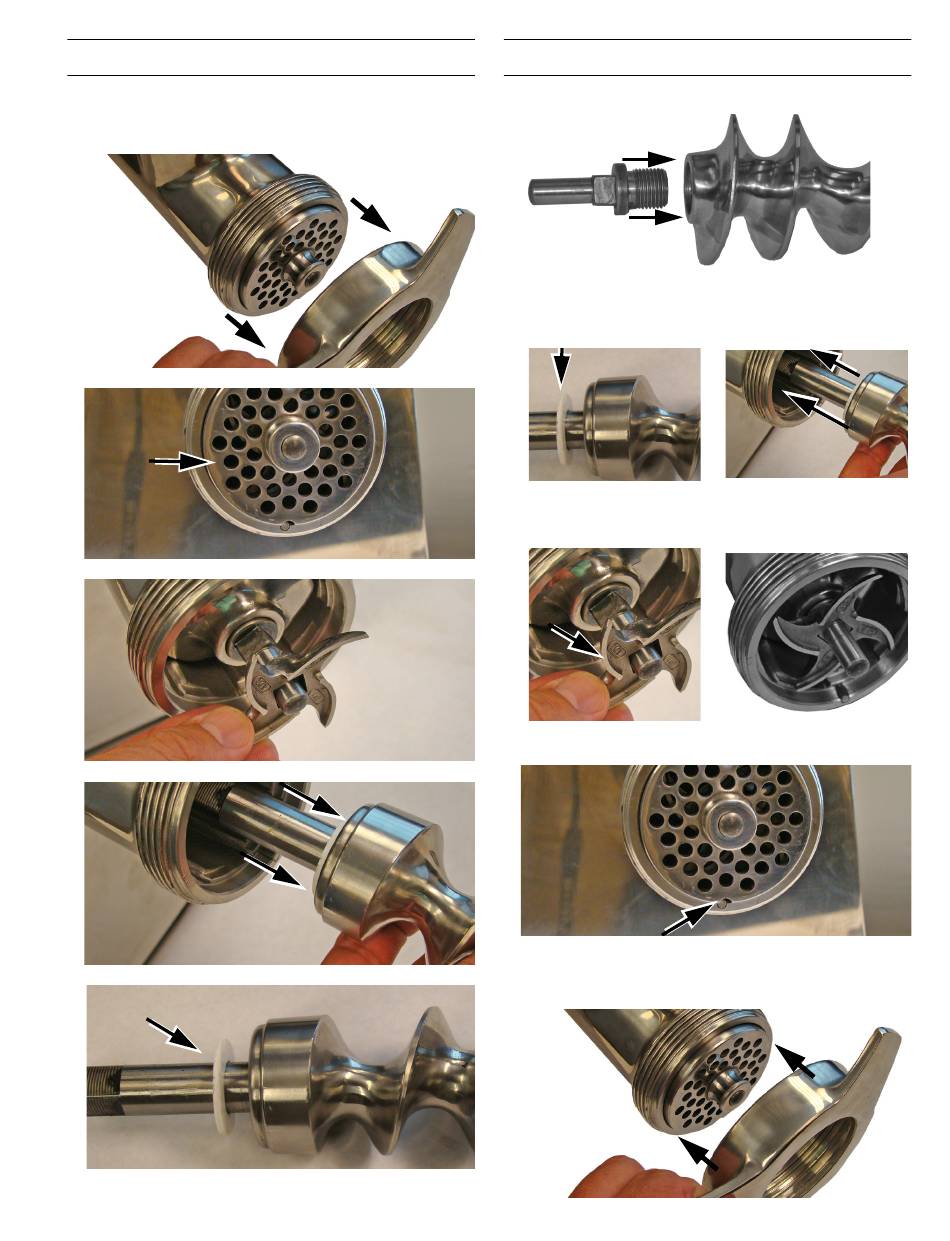

DISASSEMBLY

1. Turn the control switch to the "OFF" position and unplug the grinder.
2. Remove the grinder chamber assembly from the body of the grinder.
3. Unscrew the faceplate from the grinder head assembly.
4. Remove the grinder plate from the blade shaft.
5. Carefully remove the knife blade from the blade shaft.
6. Remove the worm gear assembly from the grinder head assembly.
7. Remove the washer

ASSEMBLY

1. Assemble the blade shaft assembly into the worm gear.
2. Inspect the shaft washer for wear. Replace if necessary.
3. Slide the shaft washer onto the worm gear shaft so that it is seated
against the worm gear assembly. Slide the worm gear assembly into
the grinder chamber until it is seated fully.r
4. Position the knife blade so the flat edges face outward. Then Slide
the knife blade onto the blade shaft so that it seats completely over
the square end of the worm gear
5. Place the grinder plate onto the blade shaft so that the cutout slides
over the locating pin.
6. If using a sausage filler, place it between the faceplate and the
grinder head assembly.
7. Thread the faceplate onto the grinder head
securely.
assembly.
Tighten
3
