DATE: 09-02-2016

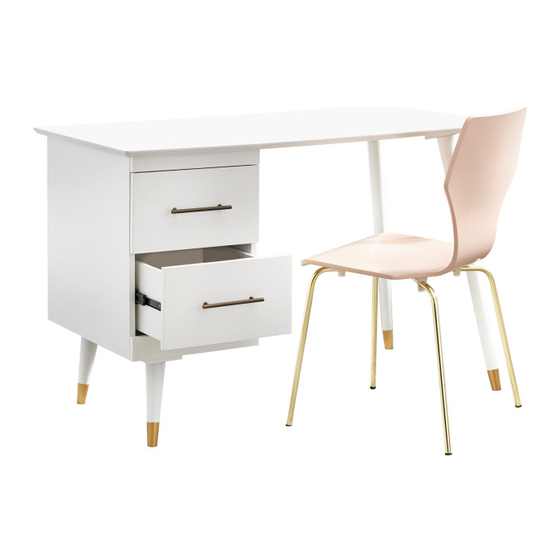

LEON MID-CENTURY DESK
ASSEMBLY
REQUIREMENTS
Thank you for purchasing our product!
Please refer and use this assembly instruction to assemble the product.
Contact our customer service department in case there are any missing or damage parts or hardware.
Replacement parts are normally shipped within 2 or 3 days.
Email: replacementparts@buylateral.com
Within 30 days from delivery date
ASSEMBLY PREPARATION
1. Remove all packaging materials, staples and packing straps from the carton.
2. Refer to Parts List and Hardware List and ensure they are complete before you start assembly.
3. Place all wooden parts on a clean, flat and soft surface (e.g. carpet or rug) to prevent parts from getting scratched.
SAFETY PRECAUTION:
1. KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
2. DISPOSE PLASTIC PACKAGING MATERIAL IMMEDIATELY TO AVOID ANY RISK OF SUFFOCATION TO
CHILDREN AND ANIMALS.
TIPS FOR ASSEMBLY:
1. Allow ample room for assembly and in close proximity to where product will be placed.
2. Assemble the product on a surface that does not scratch or damage the exterior gloss and finish of the furniture.
3. Please check all of the parts and quantities are included before assembly. Contact customer service for missing parts.
4. Identify all of the parts, hardware and quantities required for each step.
5. During assembly, do not over-tighten any fittings as this may cause damage.
6. DO NOT USE POWER TOOLS TO ASSEMBLE THIS PRODUCT.
7. Always place the product on a flat surface.
8. Do not sit or stand on the partially assembled product; only use the product for which it is intended.
CARE AND MAINTENANCE
- Use a slightly damp cloth to clean the product. Do not use bleach or abrasive cleaning material.
- Check all the fittings periodically and re-tighten as necessary. Do not use the product if any of the parts is
damaged or broken.
- Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to warp or delaminate.
- Do not place hot items (e.g. hot drinks) directly onto the wood surface.
- Do not drag and/or pull the furniture.
This product is for indoor and household use only - not for commercial use.
1/13
ASSEMBLY INSTRUCTIONS
2 -Person Assembly
2 HOURS
Assembly Time
(Approximate)
Tools Required (Not Provided):
Phillips Screwdriver
Flat Head Screwdriver
We appreciate your business!
ITEM# 82007
Made In China
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Angelo LEON MID-CENTURY DESK 82007
- Page 1 DATE: 09-02-2016 ASSEMBLY INSTRUCTIONS LEON MID-CENTURY DESK ITEM# 82007 2 -Person Assembly Tools Required (Not Provided): ASSEMBLY 2 HOURS Assembly Time Phillips Screwdriver REQUIREMENTS (Approximate) Flat Head Screwdriver Thank you for purchasing our product! Please refer and use this assembly instruction to assemble the product. Contact our customer service department in case there are any missing or damage parts or hardware.
-
Page 2: Hardware List
ASSEMBLY INSTRUCTIONS LEON MID-CENTURY DESK ITEM# 82010 Hardware List ITEM DESCRIPTION PART ITEM DESCRIPTION PART Cam-bolt Drawer Glide 22 pcs 4 pcs 6*35mm Cam-lock Handle 2 pcs 22 pcs 15*12mm Wood Dowel 10 pcs Handle Bolt 4 pcs 8*30mm 4*16mm Screw Screw 8 pcs... -
Page 3: Parts List
ASSEMBLY INSTRUCTIONS LEON MID-CENTURY DESK ITEM# 82010 Parts List ITEM DESCRIPTION PART ITEM DESCRIPTION PART Top Panel Short Leg 2 pcs 1 pc 1 pc Bottom Panel 2 pcs Long Leg Left Side Drawer Front 2 pcs 1 pc Panel Panel Right Side Drawer Left... - Page 4 ASSEMBLY INSTRUCTIONS LEON MID-CENTURY DESK ITEM# 82010 Parts Assembly Overview 4/13...
- Page 5 Instructions For Fastening CAM-BOLT AND CAM-LOCK CAM-BOLT CAM-LOCK CAM-BOLT Place Cam-bolt onto the designated pre-drilled hole on the panel. Use a Phillips Screwdriver to turn Cam-bolt vertically until shoulder is snug and flushed with panel. Do not over-tighten or under-tighten Cam-bolt. See illustrations below. SHOULDER Shoulder is flushed Shoulder is...
- Page 6 STEP 1 4 pcs Drawer Glide (F) consists of 2 parts - Slide (F1) and (F2). To detach F1 from F2, use one hand to hold (F2), and the other hand to press down the lever on (F1) and slide out (F1) at the same time. STEP 2 2 pcs 12 pcs...
- Page 7 STEP 3 20 pcs Attach Cam-bolt (A) to the designated pre-drilled holes on Bottom Panel (2), Bottom and Top Front Connect Bar (5 & 6), Top Panel (1) and Drawer Front Panels (11) as shown. Refer to page 5 on how to screw-in Cam-bolt. DO NOT USE POWER TOOLS 7/13...
- Page 8 STEP 4 8 pcs DO NOT USE POWER TOOLS Fasten Drawer Left and Right Panel (12 & 13) to Drawer Back Panel (14) by using Screw (D). Do not tighten Screw (D) completely until both screws are in place on each panel. STEP 5 8 pcs 2 pcs...
- Page 9 STEP 6 12 pcs 4 pcs Install Drawer Slide (F1) to Drawer Left and Right Panels (12 & 13) of each drawer. Align designated holes on (F1) as shown to pilot holes on each panel, and fasten with Screw (E). STEP 7 1 pc 1 pc...
- Page 10 STEP 8 1 pc 1 pc a) Attach Right Side Panel (4) to Back Connect Bar (7) with Wood Dowel (C) and Cam-bolt (A). b) Insert Cam-lock (B) into designated hole on (7), then turn clockwise to lock Cam-bolt to fasten Right Side Panel (4).
- Page 11 STEP 10 4 pcs a) Attach Bottom and Top Front Connect Bar (5 & 6) to Left and Right Side Panels (3 & 4) with Cam-bolts (A). Next, Insert Cam-lock (B) into designated holes on (3 & 4) then turn clockwise to lock Cam-bolt to fasten Connect Bar (5 &...
- Page 12 STEP 12 14 pcs Place Back Panel (8) as shown and identify the pilot holes. Use Screw (I) to fasten Back Panel (8). STEP 13 Screw in Leg (9 & 10) in a clockwise direction untill snug as shown to attach legs to the desk. 12/13...
- Page 13 STEP 14 Insert the Drawers. To insert the drawers: a) Hold the drawer level in front of the cabinet. b) Align Drawer Slide (F1) on drawer sides to Drawer Tracks (F2) on Side Panels. c) Place the ends of (F1) into opening of (F2). d) Push drawer in squarely and gently into place, allowing (F1) to slide into (F2).
