Assembly Instructions
LFT7000FS
Fixed stand
Thank you for purchasing AVFI's LFT7000FS fixed stand.
This stand is designed for TV setups totaling up to 280lbs.
Confirm all hardware is included before you begin assembly.
Read these instructions start to finish before beginning installation.
Note: If you cannot understand these instructions or are concerned about safety
of the installation contact a qualified contractor or contact AVFI at 1-877-834-3876.

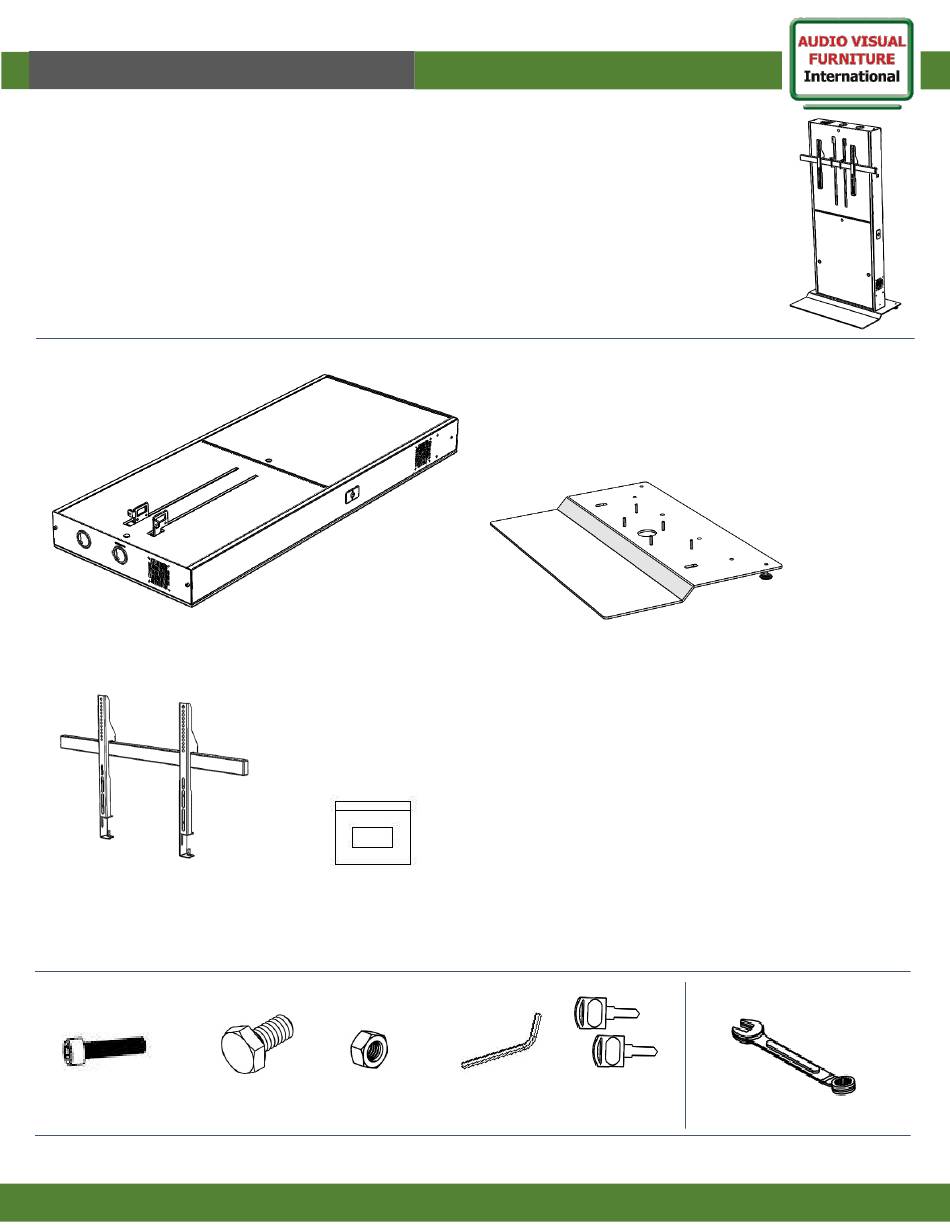

Supplied Parts
Tower
Fixed Base
Box 1
Box 2
TV Brackets
TV Hardware bag
x2 if dual mount
S (shown)/XL/D
Box 3+ Tube
Not all hardware supplied will be used.
Supplied Hardware (additional to hardware bags)
Tools required
Allen Keys found
M8 X 40
M8 Nut
Keys
1/2 X 1
Wrench or Socket set
(6)
In hardware bag
(4)
(6)
(2)
1
www.video-furn.com
190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876
Advertisement
Related Manuals for AVFI LFT7000FS
Summary of Contents for AVFI LFT7000FS
- Page 1 Confirm all hardware is included before you begin assembly. Read these instructions start to finish before beginning installation. Note: If you cannot understand these instructions or are concerned about safety of the installation contact a qualified contractor or contact AVFI at 1-877-834-3876. Supplied Parts Tower...
- Page 2 Assembly Instructions LFT7000FS Stand Unlock and remove front panels. Attach base using Included nuts and Bolts. TIP: Attach all fasteners before tightening. www.video-furn.com 190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876...
- Page 3 Assembly Instructions LFT7000FS Stand Install rack equipment and run wiring. Unlock and remove rear top panel. Pull panel straight out, keep parallel. Insert Tube into carriage openings. Plug in and test run unit up and down. Then install and lock front top panel.
- Page 4 Assembly Instructions LFT7000FS Stand Install TV brackets onto back of TV. Remove top bolts if present Lower to bottom position To hang TV. Hang TV onto See step 8.1 before tube. proceeding. www.video-furn.com 190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876...
- Page 5 Assembly Instructions LFT7000FS Stand Lock TV onto tube. www.video-furn.com 190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876...
- Page 6 Assembly Instructions LFT7000FS Stand Confirm all cable clearances when moving up and down. Reinstall and lock rear panel. Levelers x2. Use small wrench to adjust. Floor anchoring holes x4. (optional step) Finished. www.video-furn.com 190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876...
