Megaman FONDA Instruction Manual

®
MEGAMAN FONDA
F51100SM/F51300SM
Instruction Manual

TECHNICAL SPECIFICATION

Article Number MM77110
Model Number F51100SM
Wattage 10.5W
220-240V~
Voltage
Frequency 50/60Hz
Power Factor >0.5
IP66
IP Rating
IK Rating IK10

CAUTIONS

• Read the entire manual carefully before installation and operation.
• It is recommended that the installation or maintenance be performed by a licensed
and qualified electrician.
DO NOT disassemble the luminaire. Doing so may result in lamp damage or
•
malfunction.
• Switch off the power source before installation, replacement and cleaning.
Wearing gloves during installation is suggested for keeping the lamp in the best
condition.
•

ATTENTION

• Instant start is allowed.
• Designed for outdoor application.
• The operating temperature of the luminaire is -30° C to + 40° C.

PART LIST

A1 M4.5 screw A2
Screw raw plug
4 pcs 4 pcs

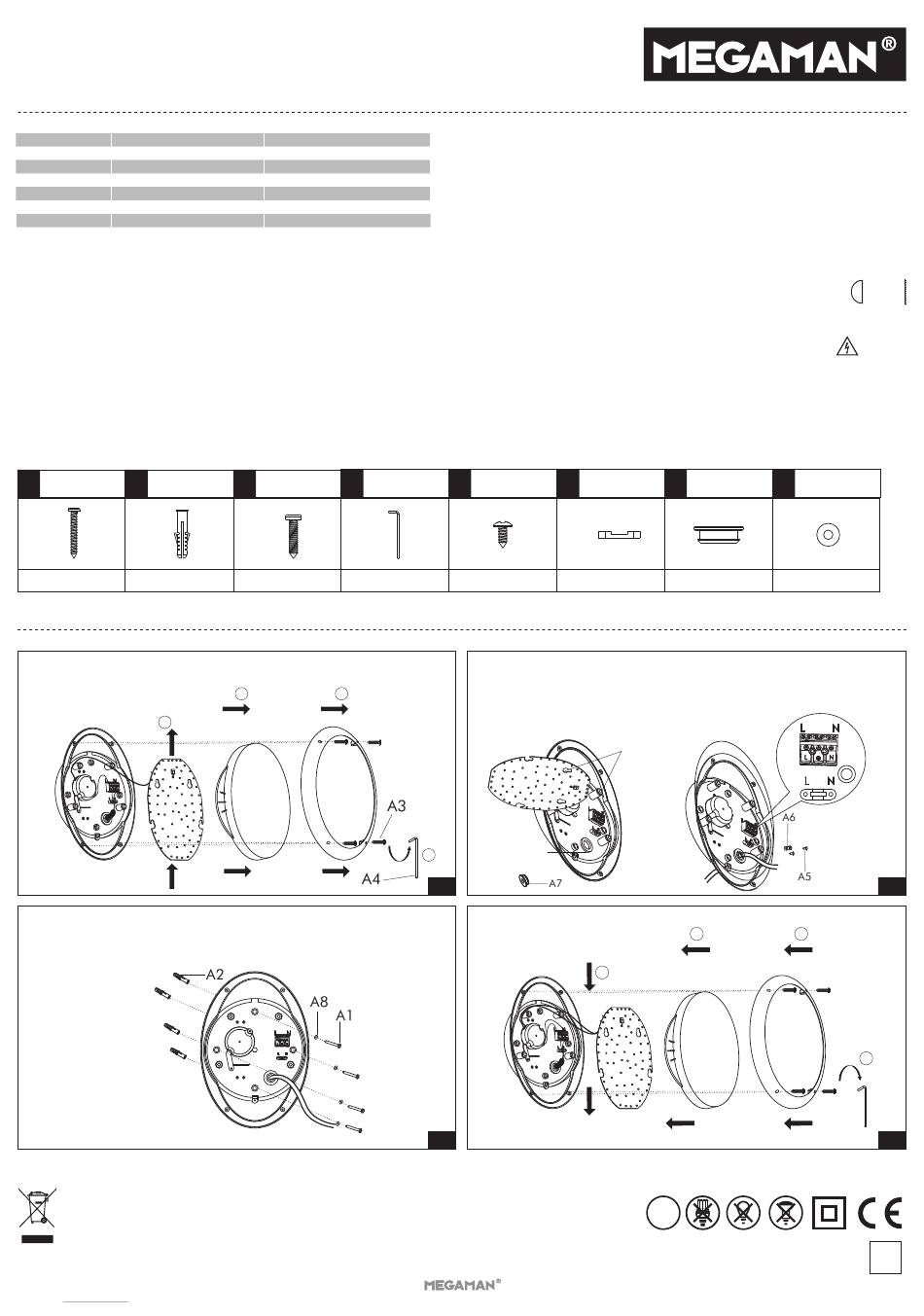

Installation

Please refer to the diagram before installation.
•
Remove the ring, cover and light source plate
chip on the light source plate.
4 Push upward to unlock
the light source plate
Secure the luminaire to the wall with the M4.5 screw
•
the screw raw plug (A2). The screws and cover should be installed properly to
ensure the waterproof protection.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device,please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental safe
recycling.
IDV GmbH
Birkenweiherstr. 2
D-63505 Langenselbold
Germany
www.megaman.de

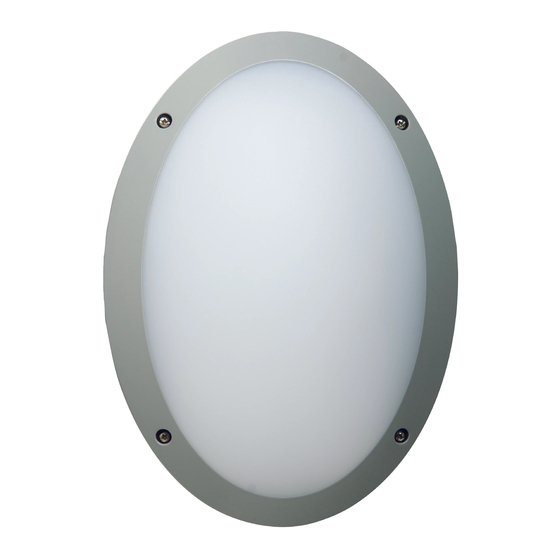

Outdoor Integrated LED Bulkhead
MM 771 11
F51300SM
10.5W
220-240V~
50/60Hz
>0.5
IP66
IK10
Theft-proof Theft-proof
A4
A3
screw screw driver
4 pcs 1 pcs
for wiring. DO NOT touch the LED
3 2
(A1) , rubber ring (A8)
•
Before replacement of luminaire or lamp, turn off and allow them to cool down.
Heat-resistant gloves are mandatory when handling the luminaire or lamp.
The minimum safety distance from the illuminated object is 0.1m.
•
• The manufacturer accepts no liability for any damage resulting from the misuse of the
luminaire or from when it is used with inappropriate equipment.
• Consult your dealer if you have any enquiries.
Caution to the risk of electric shock during installation or maintenance.
•
• The screws and cover should be installed properly to ensure the waterproof
protection.
A5 A6
Wire bushing
M3 screw
2 pcs
• Put the
light source plate
plate will not dangling freely and prevent wire damage during installation.
• Secure the cable gasket (A7) into the cable entry hole. Pass the power cable
through the cable gasket and fix the power cable with M3 screws (A5) and
wire bushing (A6).
Cable entry
1
hole
Step1
and
Step3
A7
Cable gasket
1 pcs 1 pcs
back on one of the studs to ensure the
Studs
2
Push downward to
1
lock the light source plate
LED
---
0.1m
A8
Rubber ring
4 pcs
light source
Step2
3
4
Step4
GB
8010ZTK03A
