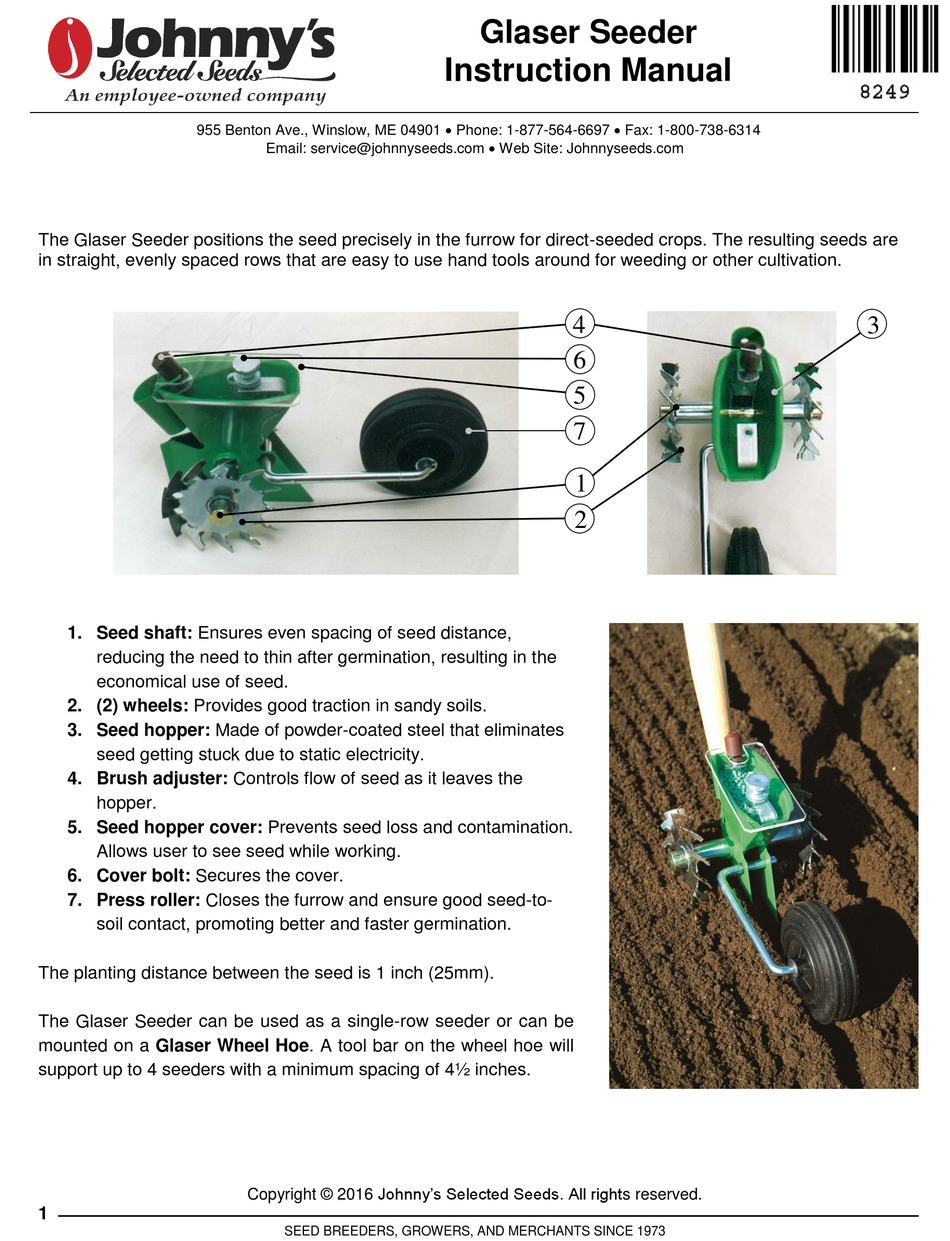

Johnny's Selected Seeds Glaser Seeder Instruction Manual

955 Benton Ave., Winslow, ME 04901  Phone: 1-877-564-6697  Fax: 1-800-738-6314
The Glaser Seeder positions the seed precisely in the furrow for direct-seeded crops. The resulting seeds are
in straight, evenly spaced rows that are easy to use hand tools around for weeding or other cultivation.
1. Seed shaft: Ensures even spacing of seed distance,
reducing the need to thin after germination, resulting in the
economical use of seed.
2. (2) wheels: Provides good traction in sandy soils.
3. Seed hopper: Made of powder-coated steel that eliminates
seed getting stuck due to static electricity.
4. Brush adjuster: Controls flow of seed as it leaves the
hopper.
5. Seed hopper cover: Prevents seed loss and contamination.
Allows user to see seed while working.
6. Cover bolt: Secures the cover.
7. Press roller: Closes the furrow and ensure good seed-to-
soil contact, promoting better and faster germination.
The planting distance between the seed is 1 inch (25mm).
The Glaser Seeder can be used as a single-row seeder or can be
mounted on a Glaser Wheel Hoe. A tool bar on the wheel hoe will
support up to 4 seeders with a minimum spacing of 4½ inches.
1
Email: service@johnnyseeds.com  Web Site: Johnnyseeds.com
Copyright © 2016 Johnny's Selected Seeds. All rights reserved.
SEED BREEDERS, GROWERS, AND MERCHANTS SINCE 1973
Glaser Seeder
Instruction Manual
4
6
5
7
1
2
3
