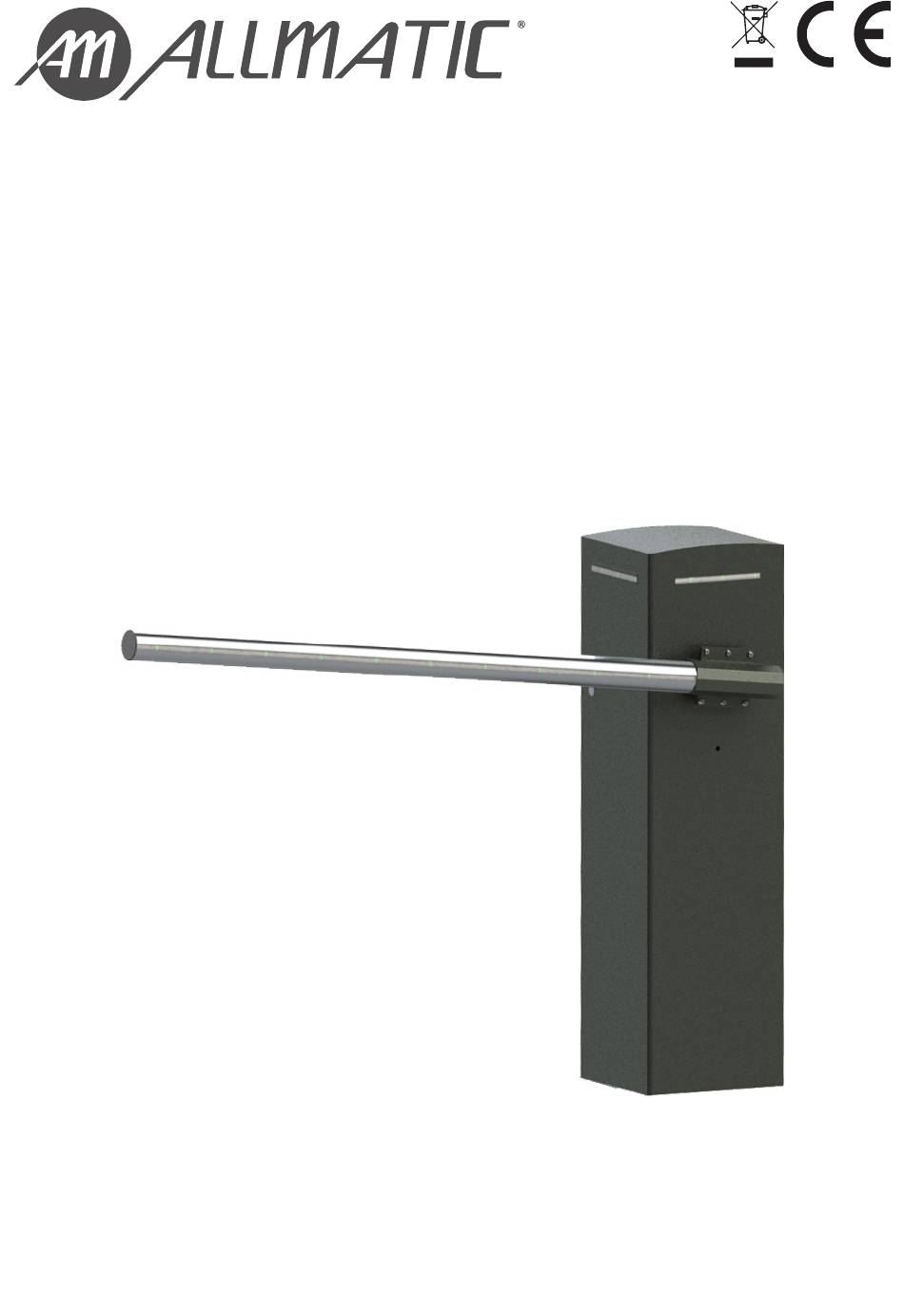

BOOMY
12007336 - BOOMY 4
12007336 - BOOMY 4
12007337 - BOOMY 4 LED
12007337 - BOOMY 4 LED
Ambidextrous irreversible operator for driveways
rev.0 12/10/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOOMY 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Allmatic BOOMY 4

Summary of Contents for Allmatic BOOMY 4

  • Page 1 BOOMY 12007336 - BOOMY 4 12007336 - BOOMY 4 12007337 - BOOMY 4 LED 12007337 - BOOMY 4 LED Ambidextrous irreversible operator for driveways rev.0 12/10/2020...
  • Page 2 INDEX: GENERAL SAFETY WARNINGS pag. 3 DESCRIPTION AND COMPATIBLE ACCESSORIES pag. 4 PACKAGING LIST AND DIMENSIONS pag. 5 PRELIMINARY VERIFICATIONS AND TECHNICAL CHARACTERISTICS pag. 6 CABINET INSTALLATION AND ADJUSTMENTS pag. 8 MANUAL HANDLING OF THE BOOM pag. 10 ELECTRICAL CONNECTIONS AND INITIAL OPERATION pag.
  • Page 3 (for example by installing inside a locked board). 2° - For the section and the type of the cables ALLMATIC advices to use a cable of H05RN-F type with 1,5 sqmm minimum section and, however, to keep to the IEC 364 and installation standards in force in your country.
  • Page 4 3 digital inputs for photocells, 3 digital inputs for coils, wired inputs for commands STOP - OPEN - CLOSE - SS and two 24vdc outputs for accessories and flashing lights. In addition, a 433mhz radio receiver with ALLMATIC encoding is already installed on board, allowing remote control of the automation.
  • Page 5 BIOS1 24 BOOMY. set of three keys and control unit BIOS1 24 BOOMY. • • 12007337 - BOOMY 4 LED 12007337 - BOOMY 4 LED CABINET including gear motor with rocker and spring already installed, tie rod, screws, set of...
  • Page 6 4. PRELIMINARY VERIFICATIONS AND TECHNICAL CHARACTERISTICS The installation must be carried out only by qualified personnel, in compliance with laws, rules and regulations and as stated in these instructions. Before proceeding with the installation make sure that all the material to be used is in excellent condition and suitable for the intended use.
  • Page 7 H - Unlocking plug with key lock I - Boom L - Hub M - Fixing “U” shape profile TECHNICAL CHARACTERISTICS U.M. BOOMY 4 BOOMY 4 LED Control Unit power supply Frequency Control Unit BIOS1 24 BOOMY Motor power supply Motor power consumption Motor power Opening time at 90°...
  • Page 8 Take out the box of the control unit and remove the lid by unscrewing the screws. ATTENTION! Make sure the board is not powered before making connections. Install the LED interface card in the appropriate location (in the BOOMY 4 LED version the card is already installed). Pierce the black plastic cap that will covers the bottom of the boom.
  • Page 9 Drill two 5mm holes in the boom with the drill at the groove on the joint, at least 30 mm apart from each other starting from the boom head. Make a 10 mm socket on the holes just made and fix with two screws supplied the joint to the boom. Insert in the joint the second pole of 2 meters, if necessary help yourself with a plastic-head hammer.
  • Page 10 Making sure that there are no people and objects within the range of the barrier, lightly press down the boom. Insert the supplied ALLMATIC hexagon wrench and rotate it half a turn to unlock the engine. WARNING! This operation unlocks the engine brake from the boom.
  • Page 11 8. INSTALLATION OF ACCESSORIES TO THE CONTROL UNIT LOOP + 24V 230V 50Hz FLASHING LAMP 24Vac 25W FUSE STOP DRY CONTACT N.C. TRANSFORMER 230V / 23V 50Hz +24V 11 12 13 14 15 16 17 18 19 LED STATUS LED STATUS LED RADIO ...
  • Page 12 ATTENTION! If not used, the photocell inputs should be disabled by setting in ON position DIP2 for PH1, DIP3 for PH2 and DIP4 for PH3 respectively. 8.2 MAGNETIC LOOP CONNECTIONS The ALLMATIC A1H-U loop detector must be installed to connect a magnetic loop to the control panel. Please also refer to the A1H-U Occupancy Detector Instruction Manual. 1: ground...
  • Page 13 9. CONTROL UNIT PROGRAMMING AND FUNCTIONALITY 9.1 DISPLAY By pressing the “DOWN” button the following parameters can be read on the display.  DISPLAY DESCRIPTION Description of the status of the plant. Refer to the table CONTROL View status (--, OP, CL, ...) UNIT STATUS for the description of individual operating states.
  • Page 14 9.3 ALERTS DURING OPERATION DISPLAY DESCRIZIONE It is displayed while learning transmitters. It is displayed when a new transmitter is learned or at the end of a reset. It is displayed when a button is learned from an already learned transmitter. Appears when a transmitter is deleted.
  • Page 15 9.5 LEARNING OF TRANSMITTERS The learning of a transmitter can be activated through the “UP” button of the control unit or through the hidden button of a transmit- ter already stored. The control panel BIOS1 24V BOOMY always associates to the button of the transmitter the function STEP-BY-STEP. DOWN MENU Make sure you are out of the programming menu.
  • Page 16 9.6 LEARNING WITH THE HIDDEN KEY OF AN ALREADY LEARNED TRANSMITTER With stationary automation it is possible to press the hidden button of an already learned transmitter to open the radio memory of the control unit. This is equivalent to pressing the «UP» button on the control unit. Then follow the learning procedure from point 3 to 5 of the previous paragraph.
  • Page 17 9.8 BASE MENU You can access a BASE MENU for modifying the main parameters of the control unit. To enter the menu, proceed as follows. WARNING! - after 2 minutes of inactivity the control panel automatically exits the menu. Example of access to the basic menu for modifying the tCL parameter. ...
  • Page 18 DEFAULT PARAMETER DESCRIPTION CUSTOM SPLo Slow-down speed during opening. SPLc Slow-down speed during closing. SS configuration: 0 = normal (AP-ST-CH-ST-AP-ST…). 1 = alternated with STOP (AP-ST-CH-AP-ST-CH…). 2 = alternated (AP-CH-AP-CH…). Behaviour after blackout: 0 = no action. 1 = performs opening movement. 2 = performs closing movement.
  • Page 19 FULLY OPERATIONAL SPEED SPn (50 – 100 %) default = 100% Adjust the speed to ensure the correct operation of the automation. You can adjust the speed percentage from a minimum of 50% to a maximum of 100%. SLOW-DOWN SPEED DURING OPENING or CLOSING SPLo e SPLc (10-100 %) default = 30% Adjust slow speed to ensure correct operation of the automation.
  • Page 20 9.9 ADVANCED MENU This menu allows a more detailed customization of some parameters. To enter, press and hold the “MENU” key for at least 5 seconds. To change the parameters proceed as indicated for the base menu. WARNING! - after 2 minutes of inactivity the control panel automatically exits the menu. DEFAULT PARAMETER DESCRIPTION...
  • Page 21 DEFAULT PARAMETER DESCRIPTION CUSTOM Led output management mode in closing movement: 0 = output disabled 1 = LED fixed on and OFF at the end of the movement 2 = LED fixed on and ON at the end of the movement 3 = LED flashes and OFF at end of movement 4 = LED flashes and ON at end of movement Flashing mode of the Leds:...
  • Page 22 DEFAULT PARAMETER DESCRIPTION CUSTOM DEAD-MAN MODE: 0 = disabled 1 = enabled Cycle threshold for assistance request. Once the threshold is x1000 reached, the next cycles will be executed with fast flashing (if Fpr is active). cicli 0 = disabled Enabling continuous flashing for assistance request (function performed only with closed automation): 0 = disabled...
  • Page 23 same and then begins. MODE OF ACTIVATION OF THE CLOSING PROCEDURE ICM (0 – 1) default = 0 If you have selected that an accessory commands the closing (IAC parameter) you can determine when this happens. Value 0 = The opening procedure begins when entry is committed. Value 1 = Once the commitment has been received in the selected entry, the opening procedure awaits the disengagement of the same and then begins.
  • Page 24 DEVICES FUNCTIONALITY TEST tPh (0 – 7) default = 0 It gives you the option to choose which devices to test on. Enabling the test function is carried out the functional verification of the same before each movement that starts with stationary automation. WARNING! It is not performed in the case of fast reversals. Value 0 = No device to test.
  • Page 25 DELETING SINGLE TRANSMITTER TRC By accessing the trc voice you can erase a single stored transmitter from memory. To perform the function access the item, then confirm with the extended press of the “MENU” button. Hold down until the display prints the value 0, release the button. Select the location in the transmitter’s memory. Press and hold the “MENU”...
  • Page 26 10. RESOLVING PROBLEMS The anomalies, or error states, are reported by turning on both red and green Leds (if the LED strips are installed) and displaying a message in the display of the control unit. In case of alarm/error of the control unit, the LED outputs are managed in fixed mode and not following the settings of the OLM, CLM and blm parameters.
  • Page 27 12. DECLARATION OF CONFORMITY ALLMATIC S.r.l 32026 Borgo Valbelluna - Belluno – Italy Via dell’Artigiano, n°1 – Z.A. Tel. 0437 751175 – 751163 r.a. http://www.allmatic.com - E-mail: info@allmatic.com DICHIARAZIONE DI CONFORMITÁ - DECLARATION OF COMPLIANCE DÉCLARATION DE CONFORMITÉ UBEREINSTIMMNUGSERKLARUNG DECLARACION DE CONFORMIDAD Dichiariamo sotto la nostra responsabilità...
  • Page 28 The liability of the manufacturer for damage caused to anyone by accidents of any nature caused by our defective products, are only those that derive from the Italian law. ALLMATIC S.r.l 32026 Borgo Valbelluna - Belluno – Italy Via dell’Artigiano, n°1 – Z.A. Tel. 0437 751175 – 751163 r.a. Fax 0437 751065 www.allmatic.com - E-mail: info@allmatic.com...
