Summary of Contents for EL-CELL EL-Cut

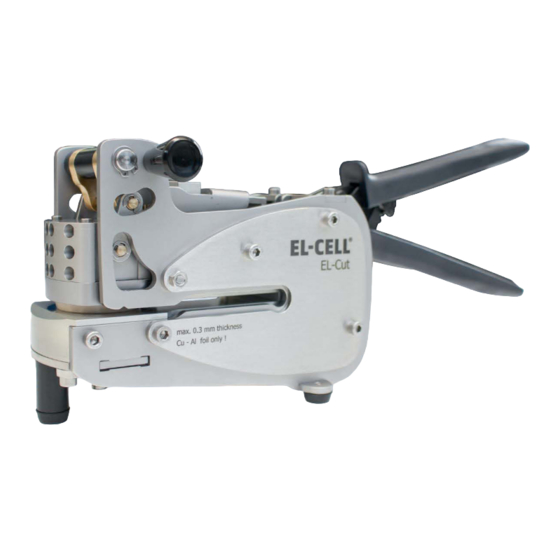

- Page 1 User Manual Release 1.2 EL-Cut High precision cutting pliers © 2020 EL-Cell GmbH...
- Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-Cell GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -Cell GmbH does not assume any liability arising from the use or application of this product.
- Page 3 User Manual EL-Cut Content 1 Product description ............................4 2 Technical data ..............................4 3 Features ................................5 4 Mode of operation ............................5 5 Guidelines for intended use ........................6 6 Cleaning ................................6 7 Technical support ............................7 8 Warranty ................................
- Page 4 In contrast to conventional punching (stamping), electrodes being cut (fine blanked) by the EL-Cut are produced by three active forces and in tools with a few microns cutting clearance. The fine blanking process results in electrodes having clean cutting surfaces without torn or chipped edges and being almost perfectly flat.
- Page 5 User Manual EL-Cut 3 Features The diameter of the tool can be between 6 and 40 mm. Different shapes, e.g. squared, are possible Specifically designed for cutting electrodes coated on Al and Cu foil High-accuracy and durable cutting unit.
- Page 6 These punch pliers are designed for use with Cu and Al foils in 0.1 to 0.3 mm thickness. If you would like to use them for other materials or thicknesses, please contact us in case of doubt. (e-mail: info@el-cell.com) Do not punch lithium metal foil with the pliers. ...
- Page 7 8 Warranty For a period of one year from the date of shipment, EL-Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return...
