Iron logic Z-2 USB MF User Manual

Z-2 USB MF
www.ironlogic.me
Z-2 USB MF
Desktop RFID reader/writer 13.56MHz with USB connection
User Manual

1. OVERVIEW

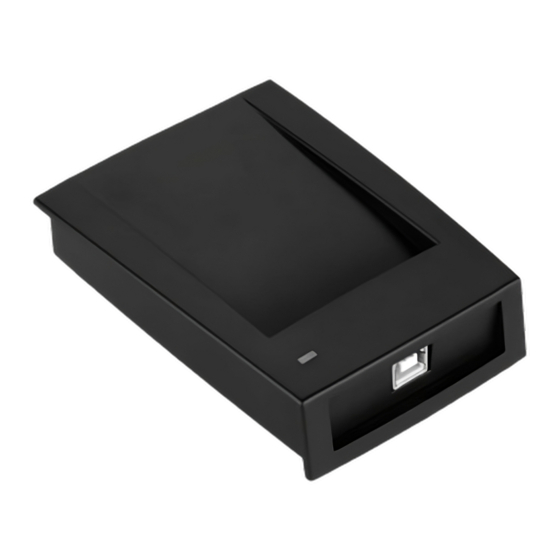

Adapter Z-2 USB MF is a device that can read serial numbers from MIFARE tokens (cards, key fobs
etc.) of ISO/IEC 14443 Type A standard, read and write protected memory sectors of MIFARE
Classic 1K/4K and Ultralight. It exchanges the data with a computer system via USB interface.

2. FACTS

- Adapter can not only read MIFARE token serial numbers, but also read and write protected
memory sectors of MIFARE™ Classic 1K/4K and Ultralight tokens;
- Connects to computer systems via USB;
- Allows the users to perform firmware updates on their own;
- Can be used in loyalty and reward points schemes, payment systems, access control systems,
rental shops, ID systems, customisation, and other applications using RFID-based technologies.
Software Development Kit (SDK-Z2USB MF) is available, allowing to quickly start working with the
adapter.

3. MOUNTING AND CONNECTION

- Please set the adapter onto your desk in a convenient location to present the cards;
- Connect the adapter to your PC via supplied USB cable;
- Install the device drivers from a supplied CD onto your PC.

4. OPERATION

After the driver installation is complete, the PC detects the device as a new virtual COM port, which
then can be used to exchange data between adapter and that PC.
If adapter is powered up and operational, its LED shines red.
When a token is placed into adapter working zone, the LED shortly changes colour to green and the
buzzer sounds.
When a token is held within adapter working zone, a green LED is lit and data exchange session
between the adapter and the token ensues. The session includes reading the serial number from,
or reading/writing data from protected memory sectors of, a MIFARE token.
To verify proper adapter operation, please use HyperTerminal or similar software supporting serial
port connectivity.
- Set up a serial connection with the following parameters: Baud rate 9600, Data bits 8, Parity
NONE, Stop Bits 1, Flow control NONE.
- To display the adapter information, press "I" button on your keyboard.
- Each adapter has its own serial number. The user requires it to update adapter firmware.
- When the adapter is touched by a token, its type and Wiegand-26 formatted serial number are
displayed.
page 1
