Title: Mechanical Installation Manual of the EA4-COUNTRY
QM-Form (5368 / 2018-05-29 vl): qm_allg_txt_en.odt

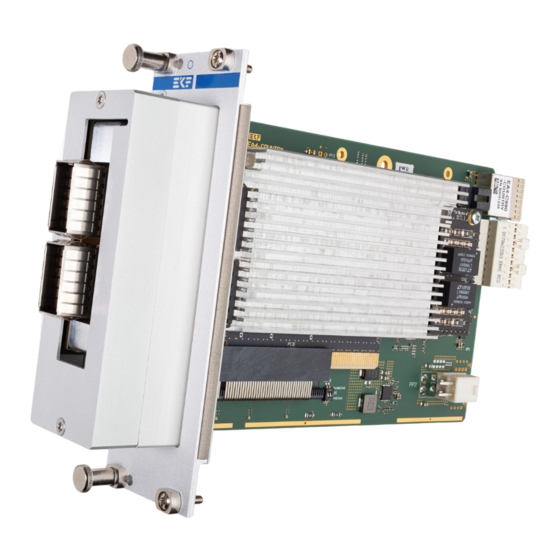

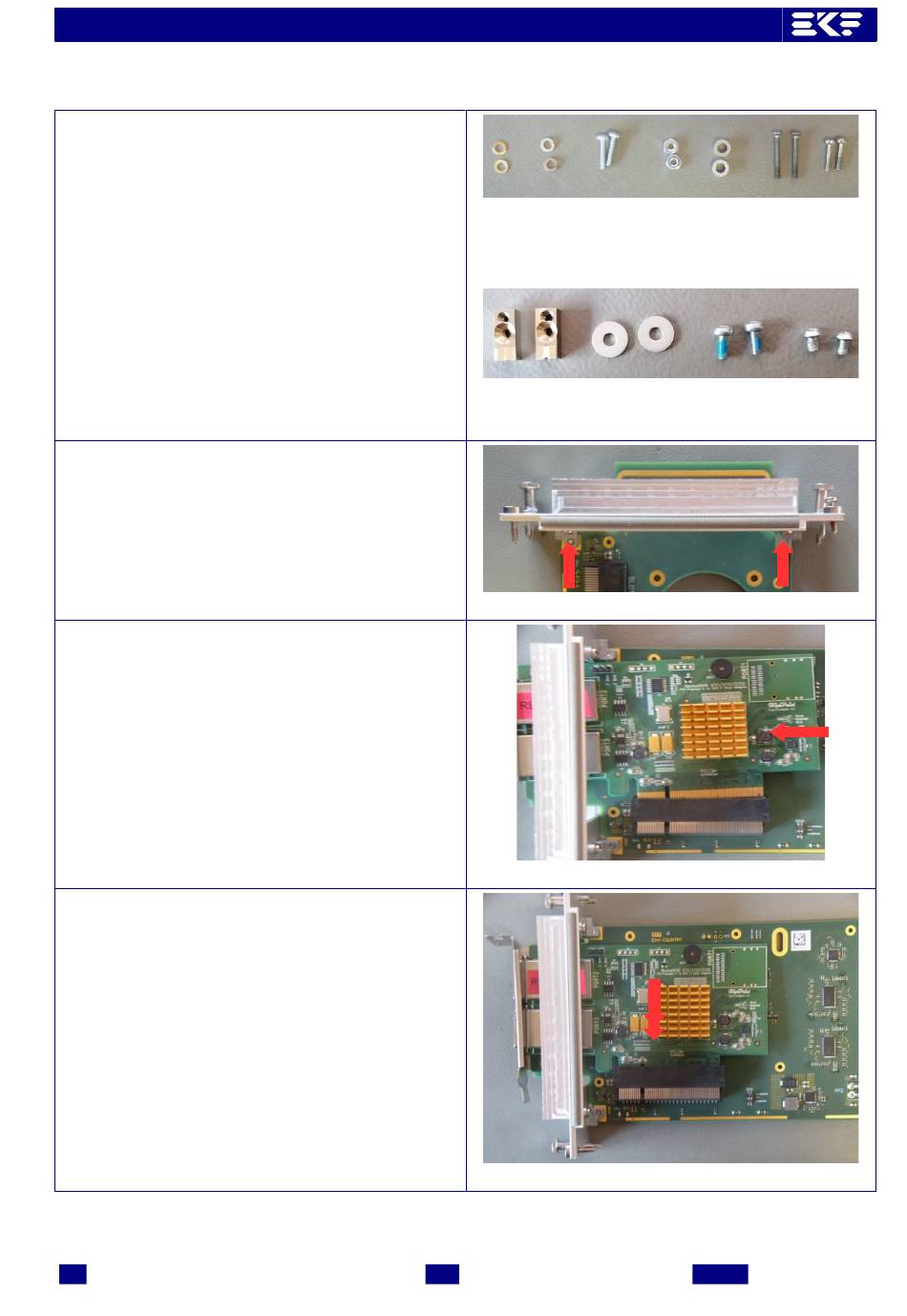

1. The incidentals and their numbers are
shown on the right.
2. Tighten the two screws (7)
with the adapter cover.
3. Remove first the front bracket of your
PCI Express Card.
Push the express card through the front of
the EA4 (from right to left).
4. Plug in carefully the Express Card in the
Express Card Slot of the EA4.
File:
ea4_mim.odt
1
2
8
Page
1 of 3
3
4
5
(similar picture)
9
10
(similar picture)
(similar picture)
(similar picture)
(similar picture)
Release:
2020-06-19, mja
6
7
11
