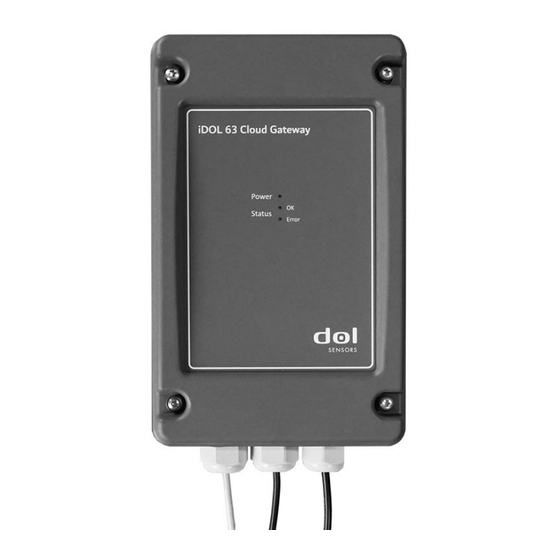

- Page 1 63 Technical User´s Guide For other language variants of this document we refer to www.dol-sensors.com or your local dealer. dol-sensors a/s Agro Food Park 15 - 8200 Aarhus N - T: +45 7217 5888 - F: +45 7217 5959...
-
Page 2: Product Description
MOUNTING The iDOL 63 must be mounted in the walking area or control room, not directly inside the stable area together with the animals. Mount the sensors inside the stable area according to the installation instructions found in the sensor documentation. -
Page 3: Electrical Installation
ELECTRICAL INSTALLATION The electrical connections must be made as specified below. Figure 2: Inside of the iDOL 63 box. Make sure that cables and wires are connected as illustrated Internet The box needs access to the internet via the ethernet port (RJ45 internet connector). The ethernet cable must not exceed 100m. The network must provide a dynamic allocated IP for the iDOL 63. - Page 4 Min. 1.0 mm Min. 17 AWG Front LED On completion of mounting, installation and powering up, the tree LEDs on the front will indicate the status of the iDOL 63. Power LED – Green, ON iDOL 63 is powered Status LED – Green, ON iDOL 63 is connected to the internet Status LED –...
-
Page 5: Maintenance
Figure 5: Table for registration of location. Typically, the sensors are mounted at section level, then simply skip filling in the Pen MAINTENANCE The iDOL 63 iself do not need maintenance. When clean iDOL 63, use water and a brush. Do not use: • High-pressure cleaner •... - Page 6 dol-sensors a/s Agro Food Park 15 - 8200 Aarhus N - T: +45 7217 5888 - F: +45 7217 5959 www.dol-sensors.com...
