Summary of Contents for Snap-On TreadReader

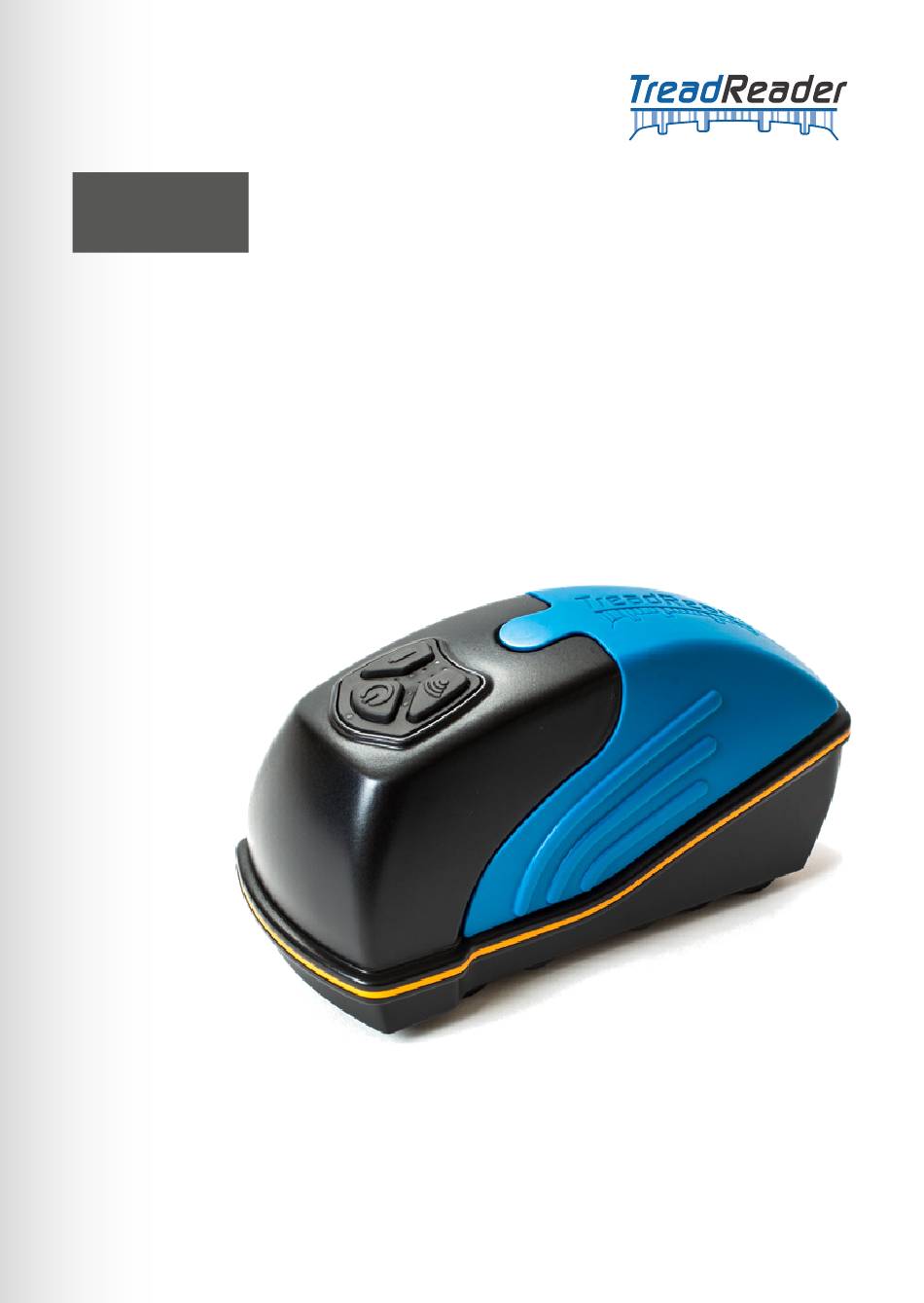

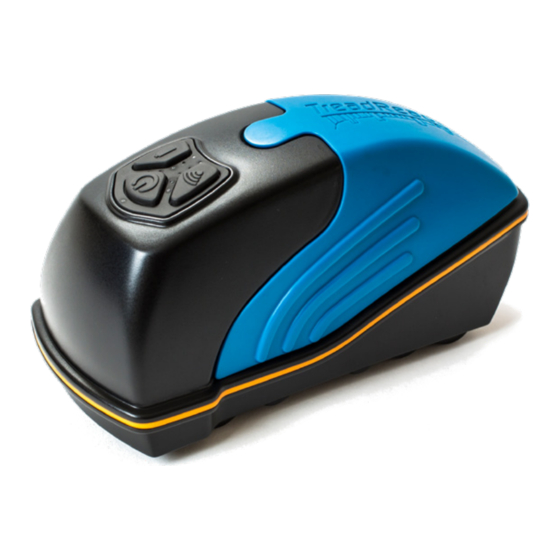

- Page 1 QUICK GUIDE TREADREADER HANDHELD 3D SCANNER...
-
Page 2: Table Of Contents
Redefining tire measurement CONTENT 01 Warnings 02 CE marking and declaration of conformity 03 Disclaimer 04 Safe use of a laser product 05 Label and label position 06 Specifications 07 Contents 08 Scanner keypad and leds 09 Switching the scanner on and off 10 How to connect to the smartphone/tablet 11 Login/upload to TREADMANAGER... -
Page 3: Warnings
Visible beam, low power. Blink response of eye affords protection. Hazardous when collecting optics used. Snap-on Equipment S.r.l. Via Prov. Carpi, 33 2015 Correggio (RE) Italy Class 3R Direct intra beam viewing is hazardous, but the risk is lower than Class 3B. -
Page 4: Specifications
The following label is affixed to this product in accordance with the relevant EU This product comprises: directives. 1 x TREADREADER 3D hand held scanner 1 x Mobile device, software license (TREADREADER hand held scanner app is downloaded from App Store) 1 x Rigid plastic carry case 1 x Calibration check piece... -
Page 5: Switching The Scanner On And Off
Network mode: Allows the scanner to connect to an external wi-fi network (stand alone router). The phone or tablet will access the scanner in the same way that any other device is accessed on a wi-fi network, such as a printer. TREADREADER provides mobile... -
Page 6: Login/Upload To Treadmanager Tm In The App
TreadManager. Android 6.0 or later is required for this option to be available. 1. When starting the app, the landing page will have a login to TREADREADER button below the direct mode/network mode option. 2. Ensure the Android device is connected to the internet when pressing the login button. -
Page 7: Entering Vehicle Registration
The 3D scan will be shown on the results screen together with color-coded tread depth measurements (red, amber, green) and icons to indicate tire type (summer or winter) and if uneven wear is detected. TREADREADER HANDHELD • QUICK GUIDE... -
Page 8: Charging
To empty stones or grit, which have entered between the wheel assembly and the base of the scanner, though the gap directly above the viewing window, open the wheel assembly according to the TREADREADER HANDHELD • QUICK GUIDE... -
Page 9: Calibration Check
While the scanner is ON, hold simultaneously the POWER and wi-fi buttons for 5 seconds. The device will buzz for 3 seconds and switch off and restart automatically. 18 • FURTHER INFORMATION Please refer to TREADREADER for the user manual, which includes full user 16 • CALIBRATION CHECK instructions and troubleshooting. - Page 10 Total Shop Solutions , family of Snap-on® Incorporated. © 2020 Snap-on Incorporated a unique breadth of solutions to outfit any shop from floor to ceiling. Bluetooth, Android, iOS, Windows are registered trademarks of their respective owners.
