Zone B19 Manual

LED BEACON
WIRING / OPERATION
RED: To +VDC with Fuse (Fuse Rating 5A @12-24VDC)
BLACK: To Chassis Ground (-)
WHITE: Apply +VDC continually for low power operation
YELLOW: Flash patterns & Synchronization
Connect
Note:
All units should be set at the same pattern
Momentarily apply +VDC to
． once for next pattern
． quick 3 times to Flash Pattern 1.
MAGNETIC MOUNT:
PERMANENT MOUNTING
OPEN
1. Remove 2 screws from the base that secures the dome.
2. Remove the dome with a flat-blade screwdriver, then lift the lens with both hands in an upright
direction.
CAUTION: Beware of scratching the inner dome surface.
INSTALLATION
Bolt Mount: 130mm or 144mm
1. Select a mounting surface on the vehicle and the desired mounting diameter (130mm or 144mm).
2. Locate the 3 mounting holes on the inside bottom of the base and remove only 3 screw hole plugs.
Use the base as a template, mark the desired mounting location of these holes onto the mounting
surface. Mark the center position for a wire passage hole. (Use a 3/16'' drill bit)
3. Make necessary mounting holes and wire passage hole; deburr all holes and install a rubber
grommet (customer supplied) to protect the wires.
4. Peel off the backing and paste the adhesive mounting foam pad onto the base.
5. Feed the wires through the mounting pad and wire access hole through the mounting surface
and secure the beacon on to the surface with 3 screws.
YELLOW wires of beacons together for synchronization
YELLOW
BUTTON 1 -ON/OFF
BUTTON 2 -Flash Pattern Selection (Standard Model)
-Low Power Operation (TB2 Model)

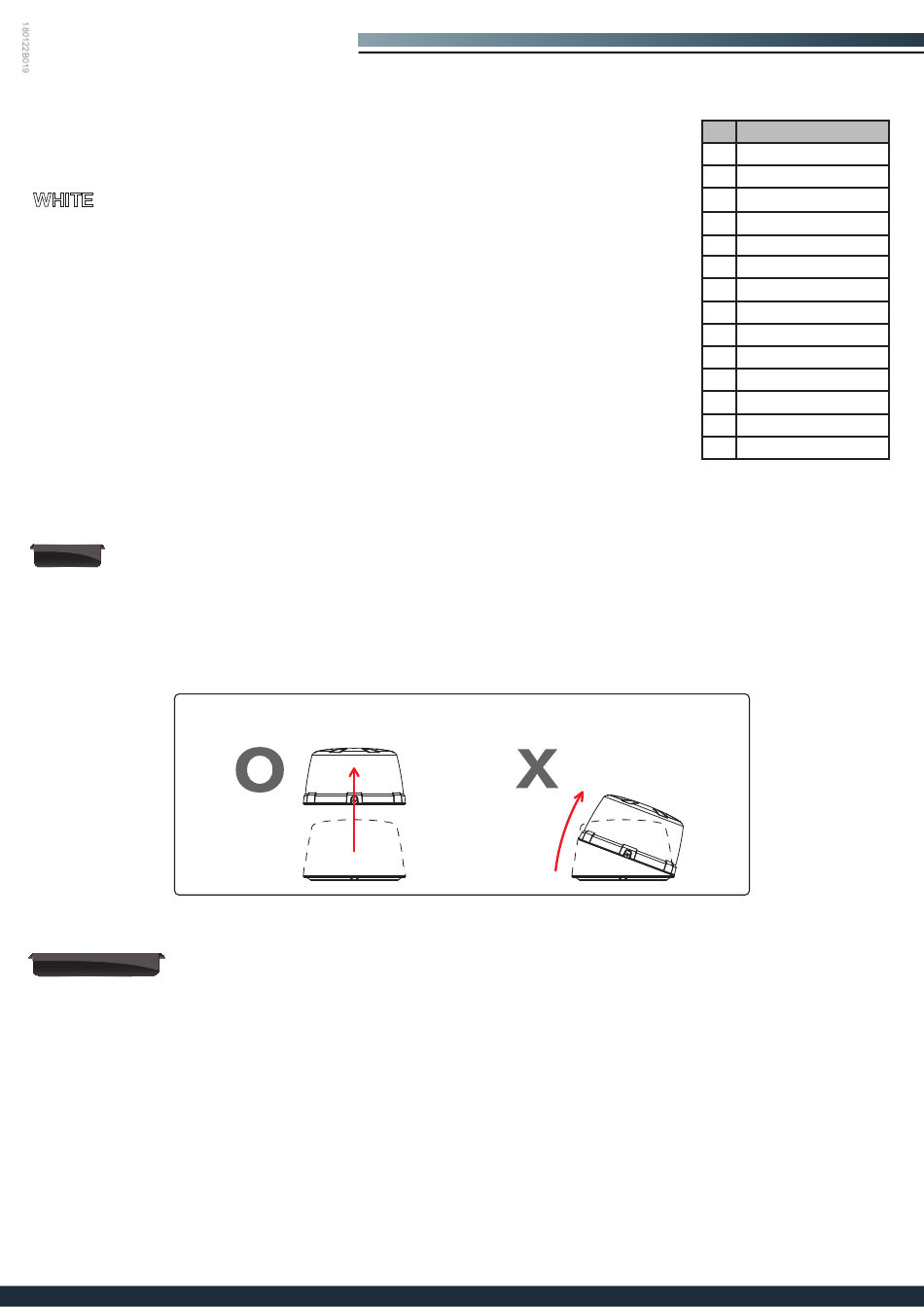

CAUTION: Lift with both hands in an upright direction!
wire:
FP# FLASH PATTERNS
1
Double [R65]
2
Single [2Hz]
3
Quad [2Hz]
4
Single [SAE] [CA 13]
5
Double [SAE]
6
Quad [SAE]
7
Quint [SAE]
8
Mega
9
Ultra [SAE]
10
Single-Quad
11
Single H/L
12
Rotator x1
13
Rotator x2
14
Rotator x2 - Quint
*Actual approval will be based on model ordered.
