Summary of Contents for AvLab ACEPRO-CEB-8-1

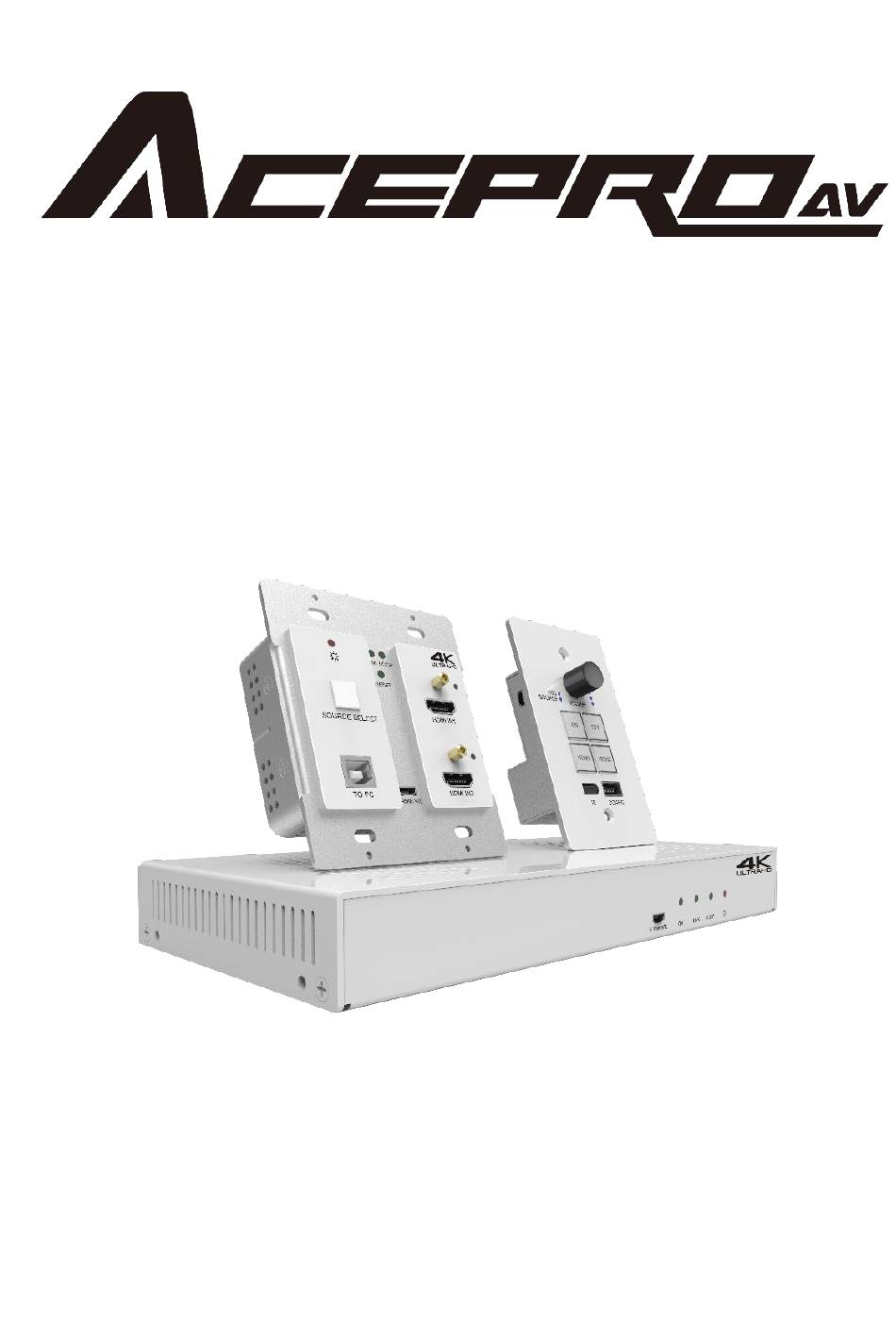

- Page 1 HDMI 4K HDBaseT Wallplate Kit User Manual...
- Page 2 HDMI 4K HDBaseT Wallplate Kit Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 HDMI 4K HDBaseT Wallplate Kit SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing ...
-
Page 4: Table Of Contents
HDMI 4K HDBaseT Wallplate Kit Table of Contents 1. Product Introduction ..................1 1.1 Features ....................1 1.2 Package List ....................2 2. Specification ...................... 3 2.1 HDMI 4K HDBaseT Wallplate Transmitter ..........3 2.2 HDMI 4K HDBaseT Wallplate Receiver ..........4 2.3 HDMI 4K HDBaseT Wallplate Control Panel ........ -
Page 5: Product Introduction
HDMI 4K HDBaseT Wallplate Kit 1. Product Introduction The HDMI 4K HDBaseT Wallplate Kit is a multi-function AV distribution system designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of HDMI-4K HDBaseT Transmitter, HDMI-4K HDBaseT Receiver and HDMI-4K Control Panel. -
Page 6: Package List
HDMI 4K HDBaseT Wallplate Kit 1.2 Package List Transmitter 1x HDMI 4K HDBaseT Wallplate Transmitter 1x HDMI 4K HDBaseT Wallplate Receiver 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x 4-pin Terminal Block Receiver 3x 3-pin Terminal Blocks ... -
Page 7: Specification
HDMI 4K HDBaseT Wallplate Kit 2. Specification 2.1 HDMI 4K HDBaseT Wallplate Transmitter Video Video Input (1) HDMI IN 1, (1) HDMI IN 2 Video Input Connector (2) 19-pin type-A female HDMI (1) PoC IN/HDBT OUT, (1) POWER/RS232 Video Output Video Output Connector (2) RJ45 Control... -
Page 8: Hdmi 4K Hdbaset Wallplate Receiver
HDMI 4K HDBaseT Wallplate Kit 2.2 HDMI 4K HDBaseT Wallplate Receiver Video (1) HDBT IN/PoC Video Input (1) RJ45 Video Input Connector (1) TO DISPLAY Video Output (1) 19-pin type-A female HDMI Video Output Connector Audio Audio Input (1) MIC Audio Input Connector (1) 3-pin terminal block Audio Output... -
Page 9: Hdmi 4K Hdbaset Wallplate Control Panel
HDMI 4K HDBaseT Wallplate Kit Relative Humidity 10%-90% Dimension (W*H*D) 250mm x 31mm x 130mm Net Weight 682g 2.3 HDMI 4K HDBaseT Wallplate Control Panel Port (1) CONFIG, (1) POWER/RS232 Control (1) Type-A USB, (1) RJ45 Control Connector (1) Volume Knob, (4) Buttons (ON, OFF, HDMI 1, HDMI 2), Other (1) Built-in IR sensor Operation Temperature... -
Page 10: Panel Description
HDMI 4K HDBaseT Wallplate Kit 3. Panel Description 3.1 HDMI 4K HDBaseT Wallplate Transmitter LINK RESET SOURCE SELECT HDMI IN 1 TO PC HDMI IN 2 FIRMWARE ① POWER LED: The LED illuminates red when power is applied. ② LINK LED: The LED illuminates green when there is a valid HDBaseT connection with the receiver. -
Page 11: Hdmi 4K Hdbaset Wallplate Receiver
HDMI 4K HDBaseT Wallplate Kit ⑨ HDMI IN 2 LED: The LED illuminates yellow when the source device is connected to the HDMI input 2 port. It will turn green when the HDMI input 2 source is selected as input. ⑩... - Page 12 HDMI 4K HDBaseT Wallplate Kit HDCP: The LED illuminates green when there is HDMI video traffic with HDCP. It will blink green when there is HDMI video traffic without HDCP and will be off when there is no HDMI video traffic. ③...
-
Page 13: Hdmi 4K Hdbaset Wallplate Control Panel
HDMI 4K HDBaseT Wallplate Kit When the switch turns to “LINE”, the microphone input is connected to normal or wireless microphone. There are two different connections: 1) Unbalanced connection: “╧” connects to ground, and “-” connects to signal. 2) Balanced connection: “+”... - Page 14 HDMI 4K HDBaseT Wallplate Kit ② SOURCE LED: The LED illuminates blue when the source audio is selected to be adjusted. ③ VOLUME: Press and hold this button for three seconds to select MIC or SOURCE audio to be adjusted. Rotate the button to turn up or turn down the selected audio.
-
Page 15: System Connection
HDMI 4K HDBaseT Wallplate Kit 4. System Connection 4.1 Usage Precaution Make sure all components and accessories are included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 16: Speaker Wiring Configurations
HDMI 4K HDBaseT Wallplate Kit 4.3 Speaker Wiring Configurations 4Ω Load with 4Ω speakers: 4Ω Load with 8Ω Speakers:... -
Page 17: Poc Connection
HDMI 4K HDBaseT Wallplate Kit 4.4 PoC Connection The system supports PoC, which allows several terminals share the same power supply and eliminates the need for extra power supply at the remote nodes. Connect a 24V DC power adapter to the power port of receiver, the transmitter and control panel can be energized synchronously with PoC solution, see the picture below: C o n tro l P a n e l... -
Page 18: Ir Connection
HDMI 4K HDBaseT Wallplate Kit 4.6 IR Connection The control panel provides a built-in IR sensor and the receiver provides an IR OUT port for IR pass-through control. Connect IR emitter to the IR OUT port of the receiver, and then put the IR emitter close to the display device (e.g. Projector), and put the IR remote of display device close to the built-in IR sensor, the display device can be controlled by pressing IR remote. -
Page 19: Rs232 Connection
HDMI 4K HDBaseT Wallplate Kit 4.7 RS232 Connection The receiver provides an additional RS232 interface to connect the display device, and then the display device can be controlled by sending RS232 commands via GUI. Please refer to 5.3.3 Command Tab. CAT5e 6A Cable Transmitter Receiver... -
Page 20: System Operation
HDMI 4K HDBaseT Wallplate Kit 5. System Operation 5.1 IR Learning The IR learning function allows user to use the buttons of control panel to displace some keys of IR remote which can control display device or other devices. The control panel has four buttons: ON, OFF, HDMI 1 and HDMI 2, but HDMI 1 and HDMI 2 buttons do not support IR learning function, because they are designed for source selection. -
Page 21: Button Control
HDMI 4K HDBaseT Wallplate Kit 5.2 Button Control Select Input Source Press the HDMI 1 or HDMI 2 button on the control panel to select the appropriate source device. Press the SOURCE SELECT button on the transmitter to switch input source. Power On and Off the Display ... -
Page 22: Gui Control
HDMI 4K HDBaseT Wallplate Kit 5.3 GUI Control The web browser control interface is an alternative method to control the system without having to interact with the control panel. The default IP address of the transmitter is 192.168.0.178. This can be changed in the Network settings by an administrator. -
Page 23: Device Control Tab
HDMI 4K HDBaseT Wallplate Kit 5.3.1 Device Control Tab HDMI Switch between HDMI input 1 and HDMI input 2. DISPLAY Turn the display on or off. SYSTEM Turn the system on or off. VOLUME Mute or unmute MIC and SOURCE audio. Volume may be changed by pressing the “+”... -
Page 24: Setting Tab
HDMI 4K HDBaseT Wallplate Kit 5.3.2 Setting Tab To enter the configuration settings, click on the gear icon on the lower left corner of the control interface. PASSWORD Change the password for the admin and user login screen. DISPLAY CONTROL SELECT Select whether the display will be controlled via IR or RS232. -
Page 25: Command Tab (Rs232 Display Control)
HDMI 4K HDBaseT Wallplate Kit I/O MODE SELECT Enable (N.O.)/ disable (N.C.) fire alarm signal input. LABEL Rename the label at the top of the control screen. AUDIO DELAY Set up the audio delay to sync the audio with the video on the display device. The delay time is 0 to 340 ms. - Page 26 HDMI 4K HDBaseT Wallplate Kit Display On Enter the RS232 command to turn on the display. Display Off Enter the RS232 command to turn off the display. Input Select Enter the RS232 command to switch to the input which is connected to the receiver.
-
Page 27: Network Tab
HDMI 4K HDBaseT Wallplate Kit 5.3.4 Network Tab DHCP/STATIC IP Select whether the system will use a static IP or will be provided an IP via DHCP. IP Address Enter the IP address for the system. Subnet Mask Enter the subnet mask for the system. Gateway Enter the gateway address for the system. -
Page 28: Gui Update
HDMI 4K HDBaseT Wallplate Kit 5.3.5 GUI Update Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the desired update file and press Apply, it will start upgrading then. -
Page 29: Copy And Load Control Settings
HDMI 4K HDBaseT Wallplate Kit 5.4 Copy and Load Control Settings The system IR or RS232 configuration can be copied to a USB thumb drive and loaded into additional systems or be saved as a backup. Copy Control Setting 1) Insert a 4GB or smaller FAT32 formatted thumb drive into the CONFIG port on the control panel. -
Page 30: Panel Drawing
HDMI 4K HDBaseT Wallplate Kit 6. Panel Drawing 89.00 mm LINK RESET SOURCE SELECT HDMI IN 1 TO PC HDMI IN 2 FIRMWARE HDMI 4K HDBaseT Wallplate Transmitter 250.00 mm NETWORK INPUT OUTPUT CONTROL AUDIO FROM REMOTE TCP/IP HDBT IN/PoC TO DISPLAY TOUCHSCREEN IR OUT... - Page 31 HDMI 4K HDBaseT Wallplate Kit 69.85 mm 50.00 mm HDMI 4K HDBaseT Wallplate Control Panel...
-
Page 32: Troubleshooting & Maintenance
HDMI 4K HDBaseT Wallplate Kit 7. Troubleshooting & Maintenance Problems Potential Cases Solutions Insert power adapter to Haven’t been powered on. No reaction to the receiver. any operation, Should the replacement power indicator The poor quality of network CAT5e/CAT6a cable of is off cable. - Page 33 HDMI 4K HDBaseT Wallplate Kit The PC’s network segment Unable to login The PC’s network segment has need to be set as the to GUI not been modified. same as the kit’s Static becomes Check the grounding and stronger when bad grounding make sure it is connected connecting the...
-
Page 34: After-Sales Service
HDMI 4K HDBaseT Wallplate Kit 8. After-sales Service If there appear some problems when running this product please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 35 HDMI 4K HDBaseT Wallplate Kit BLANK PAGE...
- Page 36 HDMI 4K HDBaseT Wallplate Kit BLANK PAGE...
