C 390DD MDC
MODULE INSTALLATION
Date:
Document Number:
The DD HDMI-1 and DD AP-1 are both optional modules for the C 390DD model. One or both modules
can be installed in a standard C 390DD unit. The following procedure is presented with both modules
available.

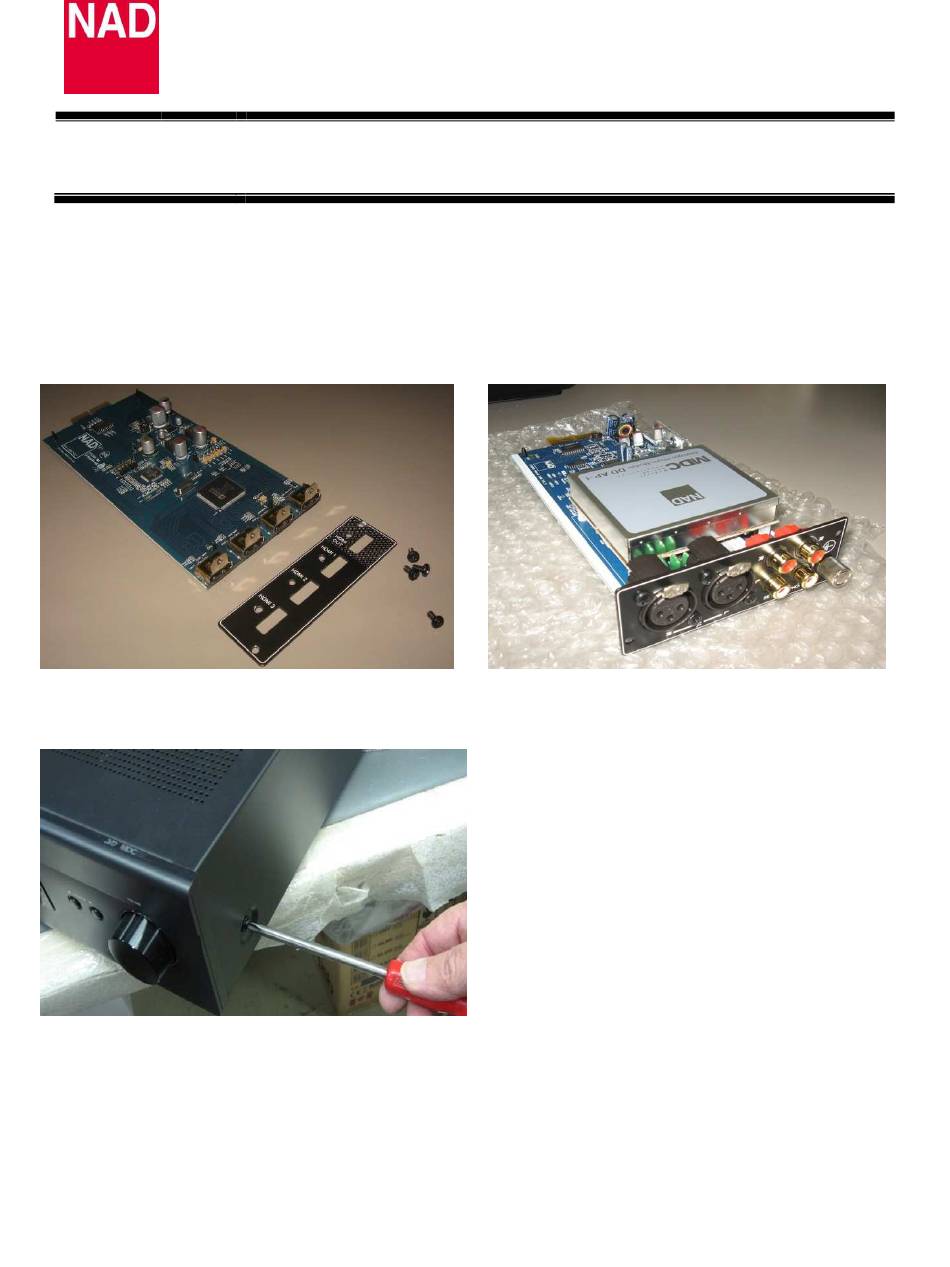

Step 1
Remove the DD AP-1 and/or DD HDMI-1 modules from their boxes. Install their respective back plates
by using the screws provided. Carefully remove the yellow protective tape from the gold connectors.
Step 2
Remove C 390DD's top cover.
June 7, 2012
TD2012-01A- DD HDMI-1/DD AP-1
1
Advertisement
Related Manuals for NAD C 390DD
Summary of Contents for NAD C 390DD
- Page 1 TD2012-01A- DD HDMI-1/DD AP-1 Document Number: The DD HDMI-1 and DD AP-1 are both optional modules for the C 390DD model. One or both modules can be installed in a standard C 390DD unit. The following procedure is presented with both modules available.
- Page 2 Step 3 Install first the DD HDMI-1 module. Loosen and remove the screws of the MDC upgrade panel cover of the unit as shown below. Position and align the DD HDMI-1with respect to the slot. Once aligned with the slot, slide the module along the track. Ensure that the DD HDMI-1 module is completely seated with respect to the connector as shown below.
- Page 3 Repeat Step 3 to 4 for the installation of DD AP-1 module. (If applicable) Please note the DD AP-1 is keyed to be installed in the far left upgrade slot of the C 390DD unit. Ensure that DD AP-1 is completely seated with respect to the connector as shown below.
