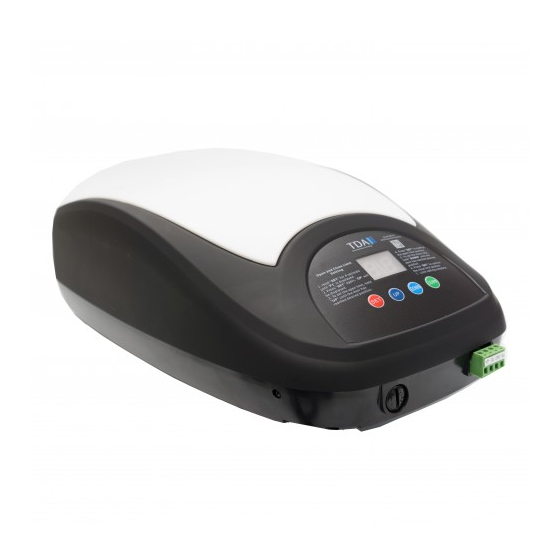

Sectional garage door opener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SECTIONAL GARAGE DOOR OPENER
FBD180/200/220/240
Installation and Users Manual
WARNING
ONLY QUALIFIED AND EXPERIENCED TECHNICIANS
SHOULD ATTEMPT INSTALLATION OR SERVICE TO THIS
UNIT, OTHERWISE, SERIOUS PERSONAL INJURY, DEATH,
OR PROPERTY DAMAGE MAY OCCUR.
SAVE THESE INSTRUCTIONS.
Total Door Automation (Australia) Pty Ltd
www.totaldoorautomation.com.au
sales@totaldoorautomation.com.au
Technical Support 1800 AUSTDA (1800 287 832)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBD180 and is the answer not in the manual?

Questions and answers

Summary of Contents for Total Door Automation FBD180

  • Page 1 ONLY QUALIFIED AND EXPERIENCED TECHNICIANS SHOULD ATTEMPT INSTALLATION OR SERVICE TO THIS UNIT, OTHERWISE, SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE MAY OCCUR. SAVE THESE INSTRUCTIONS. Total Door Automation (Australia) Pty Ltd www.totaldoorautomation.com.au sales@totaldoorautomation.com.au Technical Support 1800 AUSTDA (1800 287 832)

  • Page 2: Table Of Contents

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER TABLE OF CONTENTS Safety Instructions Main Features Technical Parameters Preparation before Installation Packing List Tools needed for Installation Installation and Adjustment Interface Pushbuttons Transmitters Programming P1. Open and Close Limit P2. Adjusting Obstruction Force Sensitivity P3.

  • Page 3: Safety Instructions

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER 1. Safety Instructions THESE ARE IMPORTANT SAFETY INSTRUCTIONS. FOLLOW ALL INSTRUCTIONS AS INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY OR DEATH Locate any fixed control: within sight of door The door opener should be installed and put but away from all moving parts of the door into operation...

  • Page 4: Main Features

    • In the event of power failure, the release device makes it possible to open and close the door manually. • Hopping code remote control with max. 30 pcs hand transmitters. • Wiring terminals for battery, button switch, infrared photocell etc. 3. Technical Parameters Model FBD180 FBD200 FBD220 FBD240 Motor Power 80 W...

  • Page 5: Preparation Before Installation

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER 4. Preparation before Installation • After receiving the product, you should make an unpack-inspection, in which you should check whether the product was damaged. If you have any problem please contact your dealer. • Packing list: 2.

  • Page 6: Installation And Adjustment

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER 5. Installation and adjustment Step 1 • Before installation of the door opener, the door should be carefully checked for being kept well balance. • The door must be in good working order. Open and close the door manually, make sure the door can be moved smoothly.
  • Page 7 FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER Step 2 Insert the shuttle into the groove of the chain drive rail. Ensure it faces the right • direction (the release arm on the shuttle towards the door opener). Fasten the four screws (M6x22mm). Pin and R pin (x1) M6x22mm Screw (x4)
  • Page 8 FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER Step 4 Close the door. • Place the opener in the center of the floor. Lift the front end of the rail up to the • header bracket that has been mounted above the garage door, insert the bolt and secure it with nut.
  • Page 9 FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER Step 6 Align the door bracket on the centre line, measure down100-300mm from the • door top edge, secure the bracket in this position with screws (M6X55) and screw caps (M6). Link the L arm to the door bracket with pin and R pin. Link the straight arm to the •...

  • Page 10: Interface

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER Manual operation If the door has to be operated manually due to a power failure, pull the release rope, open and close the door manually. To reconnect the door, move the door by hand until it engages into the chain shuttle. 6.

  • Page 11: Programming

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER 7. Programming Once the opener is connected to power, the number "88" will be displayed on the LED. And ‘ . ’ indicates the opener is now on normal status. Fig.12 (Fig.13) P1. Open and Close Limit 1.
  • Page 12 FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER Press and hold “SET” button Press “SET” again, ‘OP’ for 4 seconds until ‘P1’ is will be displayed. displayed To set open limit, Press and hold “UP” Press “SET” to confirm the open button, ‘OP’ on the LED display will be limit position.

  • Page 13: P2. Adjusting Obstruction Force Sensitivity

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER (Fig.14) P2. Adjusting Obstruction Force Sensitivity If the door meets an obstruction during closing, it will stop and reverse about 15cm~20cm. 1. Press and hold “SET” button for 4 seconds until ‘P1’ is displayed on LED. 2.

  • Page 14: P3. Infrared Photocell

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER (Fig.15) P3. Infrared Photocell 1. Press and hold “SET” for 4 seconds until ‘P1’ is displayed. 2. Press “UP” button twice until ‘P3’ is displayed. Press “SET” button to confirm. 3. Press “UP” button (‘H1’ will display) to enable the photocell. Press “DOWN” (‘H0’ will display) to disable the photocell.

  • Page 15: P4. Automatic Closing

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER (1~9 minutes adjustable) (Fig.16) P4. Automatic Closing 1. Press and hold “SET” button for 4 seconds until ‘P1’ displayed. 2. Press “UP” button three times until ‘P4’ is displayed on the LED. 3. Press the “SET” button. 4.

  • Page 16: P5. Door Lock Mode

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER (Fig.17, Fig 18) P5. Door Lock Mode 1. Press and hold “SET” for 4 seconds until ‘P1’ is displayed. 2. Press “UP” button for four times until ‘P5’ is indicated on the LED display. And press the “SET”...

  • Page 17: Light Function

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER Light function Press button 4 twice, the LED light on opener will turn on, and press the button 4 once, the light will turn off. Note: • Light function is available only when the Door Lock Mode is disabled. Fig.18 (learn) (Fig.

  • Page 18: Delete Transmitters

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER Delete Transmitters(Fig.20) 1. Press and hold “LEARN” button 2. ‘▬11’ will be displayed, keep holding the “LEARN” button for 8 seconds until ‘dL’ is flashing. 3. All stored transmitters are being deleted. Keep holding the “LEARN” button for 8 seconds until ‘dL’...

  • Page 19: External Terminal Connections

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER 8. External Terminal Connections Motor Lamp AC240V/OUT Transformer AC240V/IN RED(+) BLACK(-) Battery Wall switch +24V Infrared photocell (N.C.) Fig.21 Wicket door(N.C.) and Fire emergency Wicket Door WICKET DOOR FIRE DEPT Fire Emergency Fig.22...

  • Page 20: Maintenance

    FBD120/180/200/220 SECTIONAL GARAGE DOOR OPENER 9. Maintenance Check the garage door every one month to make sure the door is well balanced • and in good working condition. The auto-reverse function should be regularly inspected, and adjusted if • necessary. For service, call an experienced serviceman. We suggest for safety reasons, photocells should be installed on doors.

This manual is also suitable for:

Fbd200Fbd220Fbd240
