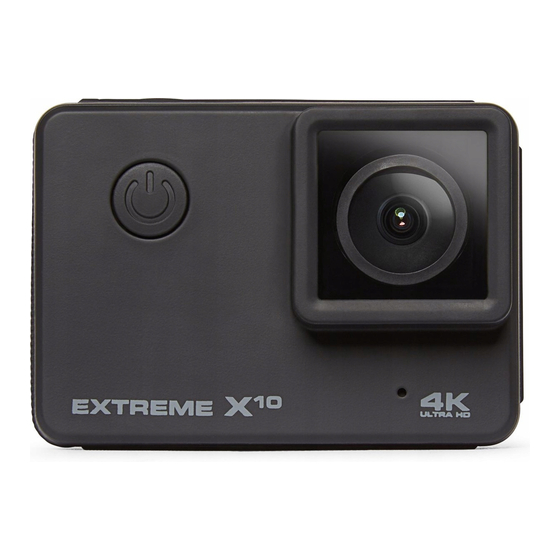

EXTREME X10 Action Cam
USER MANUAL
EN
© Elmarc, 20/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extreme x10 and is the answer not in the manual?

Questions and answers

Related Manuals for VIZU Extreme x10

Summary of Contents for VIZU Extreme x10

  • Page 1 EXTREME X10 Action Cam USER MANUAL © Elmarc, 20/07...

  • Page 2: Table Of Contents

    Content Intended use Safety Labels in this manual 2.2 General safety instructions Preparations for use Unpacking 3.2 Package contents 3.3 Main components 3.4 Placing the screenprotector 3.5 Charging the battery Usage 4.1 Memory Card: Placement and access 4.2 Using the on/off button Main menu Play 4.5 Settings 4.6 Remove the battery 4.7 Connecting the GoLive Cam app 4.8 Connecting a USB to a computer 4.9 Make an HDMI connection. Mount the camera 5.1 Attach to wristband...

  • Page 3: Intended Use

    1 Intended use The Extreme X10 is an actioncam with which you can make pictures and video's. Use the delivered accesoires by example to attach the Extreme X10 on your bike, helmet and belt. The device is intended for consumer use, not for professional use. The Extreme X10 is waterproof without using a waterproof case. 6 Due to the wide variety of products with USB ports, mobile devices and their manufacturer-specific functions we cannot guarantee that all devices will be recognized or all operating options can function.

  • Page 4: Safety

    2 Safety 2.1 Labels in this manual 6 WARNING A warning means that injury is possible if the instructions are not obeyed. 1 CAUTION A caution means that damage to the equipment is possible. 5 A note gives additional information, e.g. for a procedure. 2.2 General safety instructions General 6 To prevent damage or malfunctions: Please take time and read the general safety instructions. This will avoid fire, explosions, electric shocks or other hazards that may result in damage to property and/ or severe or fatal injuries. 6 The manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non compliance with the safety instructions. In such cases, the warranty will be voided. 6 Do not operate the device during driving. 6 Always check that the mains voltage corresponds to the voltage on the rating plate. 6 Only use original accessories from the manufacturer. 6 Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the danger. Always keep children away from the packaging material. 6 It is not permitted to open the product yourself or to have it opened, neither is it permitted to repair the product yourself or to have it repaired. This will void the warranties. Please let any maintenance be...
  • Page 5 6 Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution. 6 Do not put the appliance near a heat source. This could damage the appliance. 6 Do not expose the appliance to direct sunlight. 6 If your product runs on batteries: Incorrect installation can cause battery leakage and corrosion which will damage the appliance. Corrosion, oxidation, battery leakage and any other gradually acidic defect of this nature will invalidate the guarantee. 6 Check the product,cable and (if applicabl) adapter for any damage before use. If there is any visible damage,astrong odour,or excessive overheating of components, unplug the product. 6 The camera contains sensitive components, including the battery. Avoid exposing your camera and battery to very cold or very hot temperatures. Low or high temperature conditions may temporarily shorten the battery life or cause the camera to temporarily stop working properly. Avoid dramatic changes in temperature or humidity when using the camera, as condensation may form on or within the camera. 6 Do not dry the camera or battery with an external heat source such as a microwave oven or hair dryer.
  • Page 6 Remarks 1 If this appliance is equipped with rubber feet to prevent it from moving: The feet are made from non-migrating material specially formulated to avoid leaving any marks or stains on furniture. However, certain types of furniture polishes, wood preservatives or cleaning sprays cause the rubber to soften and leave marks or a residue on the furniture, and potentially risk the surface to become damaged. To prevent damage to wooden surfaces, we recommend that you apply self-adhesive pads to the bottom of the rubber feet before installation. 1 We recommend that you retain the original carton and packaging materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit. If you do dispose of the carton and the packaging materials, please remember to recycle with due care to the environment.

  • Page 7: Preparations For Use

    3 Preparations for use 3.1 Unpacking • Unpack the appliance carefully. • Check the package contents as described below. If any item is missing, please contact your reseller. • We recommend that you retain the original carton and packaging materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit. If you do dispose of the carton and the packaging materials, please remember to recycle with due care to the environment.

  • Page 8: Package Contents

    3.2 Package contents The following items are included in the received package: Component Action camera Bicycle bracket Pedestal 1 Pedestal 2 Pedestal 3 Pedestal 4 Switch support 1 Switch support 2 Switch support 3 Locking pin 1 Locking pin 2 3M sticker 1 3M sticker 2 Micro USB cable Wristband Helmet strap mount 5 If any item is missing, please contact your reseller.

  • Page 9: Main Components

    3.3 Main components POWER / MODE Micro SD Micro USB HDMI Battery On/off indicator Charge indicator Battery door lock 3.4 Placing the screenprotector 1. Clean the display. 2. Remove the protection foil from the screen protector. 3. Place the screen protector onto the display. 5 The screenprotector must be placed on a clean and dust-free surface.

  • Page 10: Charging The Battery

    3.5 Charging the battery 1. Unlock the battery door. 2. Open the battery door. 3. Insert the Micro USB connection in the Micro USB port and the USB connection in the USB input of, for example, a computer. The battery is fully charged within 3,5-4 hours. The LED indicator is blue during charging. When the battery is fully charged the LED indicator is off.

  • Page 11: Usage

    4 Usage 4.1 Memory Card: Placement and access 5 D ue to the great variety of products with external memory connecti on (USB, SD/MMC, etc.) and their someti mes quite manufacturer-specifi c functi ons we can neither guarantee that all devices will be recognised, nor that all operati ng opti ons that are possible in theory will actually work. M emory card slot max. Gb 4.2 Using the on/off butt on 4.2.1 Switch on the product 1.

  • Page 12: Main Menu

    4.3 Main menu Video Time laps Slowmotion Photo Photo laps Burst Video+Photo Video+Photo Car mode Car mode Aqua mode Aqua mode 4.3.1 Video 1. I n the main menu, press "Video". 2. P ress "OK" to start fi lming. 3. P ress "OK" again to stop fi lming. 4.3.2 Timelapse 1.
  • Page 13 4.3.5 Photo Lapse 1. In the main menu, press "Photo Lapse". 2. Press "OK" to start the photo lapse. 3. Press "OK" to stop the photo lapse. 4.3.6 Burst 1. In the main menu, press "Burst". 2. Press "OK" to start a photo burst. 4.3.7 Video+Photo 1. Swipe down. 2. In the main menu, press "Video+Photo". 3. Press "OK" to start the video and the photo lapse. 4. Press "OK" to stop the video and the photo lapse. 4.3.8 Dashcam 1. Swipe down. 2. In the main menu, press "Dashcam". 3. Press "OK" to start filming. 4. Press "OK" again to stop filming. 4.3.9 Aqua mode 1. Swipe down. 2.

  • Page 14: Play

    4.4 Play In the main menu, press the play button. VIZU 1. Mode 2. Next/previous video 3. Play video 4. Delete video or photo 5. Leave the play menu 4.5 Settings 4.5.1 General settings Name Function Power on mode Here you can choose in which mode the camera starts up (video, photo etc.). Power Frequency Here you can set the power frequenty. Distortion Correction Here you can switch the distortion correction on or off. Date & Time Here you can set the date and time. Screen Saver The display turns off after the set time. You can choose from: OFF, 1, 3 and 5 minutes. Auto Power Off Here you can switch the automatic power off function on or off. Power-On Auto Record Here you can switch automatic record on or off.
  • Page 15 4.5.2 Video Name Function Video Resolution Here you can change the resolution of the videos. Here you can change the field of view of the camera. Voice Rec Here you can switch the sound recording during filming, on or off. LIVE Here you can switch a Facebook live stream on or off. Exposure Compensation Here you can change the brightness of the image. Here you can change the light sensitivity of the camera. White Balance Here you can set a preprogrammed white balance. Image Stabilisation Here you can switch image stabilisation on or off. Video File Length Here you can set the maximum recording time Fast Motion Here you can set the fast motion speed. Wind Noise Reduction Here you can switch the wind noise reduction on or off. Date Stamp Here you can switch the date stamp on or off.
  • Page 16 4.5.3 Timelapse Name Function Time Lag Video Interval Here you can set the time in between frames. Time Lapse Video Duration Here you can set the maximum recording time Video Resolution You can change here the resolution of the videos. Here you can change the field of view of the camera. Voice Rec Here you can switch the sound recording during filming, on or off. LIVE Here you can switch a Facebook live stream on or off. Exposure Compensation Here you can change the brightness of the image. Here you can change the light sensitivity of the camera. White Balance Here you can set a preprogrammed white balance. Image Stabilisation Here you can switch image stabilisation on or off. Wind Noise Reduction Here you can switch the wind noise reduction on or off. Date Stamp Here you can switch the date stamp on or off.
  • Page 17 4.5.4 Slow Motion Name Function Slow Motion Video Here you can switch the slow motion effect on or off. Here you can change the field of view of the camera. Voice Rec Here you can switch the sound recording during filming, on or off. LIVE Here you can switch a Facebook live stream on or off. Exposure Compensation Here you can change the brightness of the image. Here you can change the light sensitivity of the camera. White Balance Here you can set a preprogrammed white balance. Video File Length Here you can set the maximum recording time Wind Noise Reduction Here you can switch the wind noise reduction on or off. Auto Low Light Here you can switch auto low light on or off. Date Stamp Here you can switch the date stamp on or off. 4.5.5 Photo Name Function Resolution Here you can set the resolution of the pictures.
  • Page 18 4.5.6 Photo Lapse Name Function Photo time interval Here you can set the time between two pictures. Interval photo duration Here you can set the amount of time the camera is taking photos. Resolution Here you can set the resolution of the pictures. Here you can change the field of view of the camera. Exposure Here you can change the brightness of the image. Here you can change the light sensitivity of the camera. Date Stamp Here you can switch the date stamp on or off. 4.5.7 Burst Name Function Burst Mode Here you can set the number of pictures in a burst. Resolution Here you can set the resolution of the pictures. Here you can change the field of view of the camera. Exposure Here you can change the brightness of the image.
  • Page 19 4.5.8 Video+Photo Name Function Video+Photo Here you can switch the Video-Photo function on or off. Video Resolution You can change here the resolution of the videos. Here you can change the field of view of the camera. Voice Rec Here you can switch the sound recording during filming, on or off. LIVE Here you can switch a Facebook live stream on or off. Exposure Compensation Here you can change the brightness of the image. Here you can change the light sensitivity of the camera. White Balance Here you can set a preprogrammed white balance. Image Stabilisation Here you can switch image stabilisation on or off. Video File Length Here you can set the maximum recording time Wind Noise Reduction Here you can switch the wind noise reduction on or off. Date Stamp Here you can switch the date stamp on or off.
  • Page 20 4.5.9 Dashcam Name Function Video Resolution You can change here the resolution of the videos. Here you can change the field of view of the camera. Voice Rec Here you can switch the sound recording during filming, on or off. LIVE Here you can switch a Facebook live stream on or off. Exposure Compensation Here you can change the brightness of the image. Here you can change the light sensitivity of the camera. White Balance Here you can set a preprogrammed white balance. Image Stabilisation Here you can switch image stabilisation on or off. Video File Length Here you can set the maximum recording time Wind Noise Reduction Here you can switch the wind noise reduction on or off. Date Stamp Here you can switch the date stamp on or off.

  • Page 21: Remove The Battery

    4.5.10 Aqua mode Name Function Video Resolution You can change here the resolution of the videos. Here you can change the field of view of the camera. Voice Rec Here you can switch the sound recording during filming, on or off. LIVE Here you can switch a Facebook live stream on or off. Exposure Here you can change the brightness of the image. Here you can change the light sensitivity of the camera. Image Stabilisation Here you can switch image stabilisation on or off. Video File Length Here you can set the maximum recording time Wind Noise Reduction Here you can switch the wind noise reduction on or off. Date Stamp Here you can switch the date stamp on or off. 4.6 Remove the battery 1. Unlock the battery door. 2.

  • Page 22: Connecting The Golive Cam App

    4.7 Connecting the GoLive Cam app Phone Settings App: Waiting for Wi-Fi Wi-Fi Connection Add New Connection Ready! Camera VIZU VIZU VIZU VIZU Install GoLive Cam EXTREMEX10_xxxxxx Password: 1234567890 1. Download the GoLive Cam app for Android of iOS onto your phone via Google Play or the Apple App Store. 2. Swipe down. 3. Press the WiFi icon. 4. Go to your smartphone settings. 5. Open the WiFi settings.

  • Page 23: Mount The Camera

    5 Mount the camera 5.1 Attach to wristband You can attach the camera to a wristband. To do this, use the supplied accessories. Component Action camera Wristband 5.2 Mount the camera on a smooth surface You can attach the camera at a smooth or slightly curved surface. To do this, use the supplied accessories. Component Action camera Pedestal 1 Pedestal 2 Pedestal 3 Pedestal 4 Switch support 3 Locking pin 1 Locking pin 2 3M sticker 1 3M sticker 2...

  • Page 24: Mount The Camera On The Helmet

    5.3 Mount the camera on the helmet You can mount the actioncam on the helmet. Only use the supplied accessory. Component Action camera Pedestal 1 Pedestal 2 Pedestal 4 Switch support 3 Locking pin 1 Locking pin 2 3M sticker 2 Helmet strap mount...

  • Page 25: Mount The Camera On Your Bike

    5.4 Mount the camera on your bike You can mount the actioncam on your bike. Only use the supplied accessories. Component Action camera Bicycle bracket Switch support 3...

  • Page 26: Cleaning And Maintenance

    6 Cleaning and maintenance • Do not use aggressive chemical cleaning agents such as ammonia, acid or acetone when cleaning the product. • Do not dry the camera or battery with an external heat source such as a microwave oven or hair dryer. • If you do not use the appliance for an extended period, remove the batteries. • Clean the lens with a camera lens brush/blower (not included) if the lens is dirty. • Clean the outside of the appliance with a soft cloth.

  • Page 27: Technical Specifications

    7 Technical specifications • Model number: Extreme X10 • Screen size: 2.0 inch • Resolution: 16 MP • Water resistance: 10 meters • Viewing angle: 170º • Battery type: lithium-ion • Battery capacity: 1.5 hours • Weight: 95 g • Dimensions: 64 x 46 x 29 mm • Connectivity: Micro USB / Micro HDMI / Facebook live streaming / WIFI • Memory: Micro SD-kaart (Max. 64 Gb) • Language options: English, German, French, Spanish, Italian...

  • Page 28: Disposal Of Used Electric And Electronic Equipment

    8 Disposal of used electric and electronic equipment The meaning of the symbol on the material, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical and electronic equipments waste. In the European Union and other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
