Summary of Contents for StoneL DeviceNet CK464002A
- Page 1 Valve Communication Solutions DeviceNet Commissioning kit Configure and test DeviceNet devices at your desk or workbench...
- Page 2 Contains all the hardware and software needed to configure and test DeviceNet devices. • Bench test and commission DeviceNet devices. • This kit is a must for shop testing and for stroke testing DeviceNet devices. © StoneL Valve Communication Solutions...

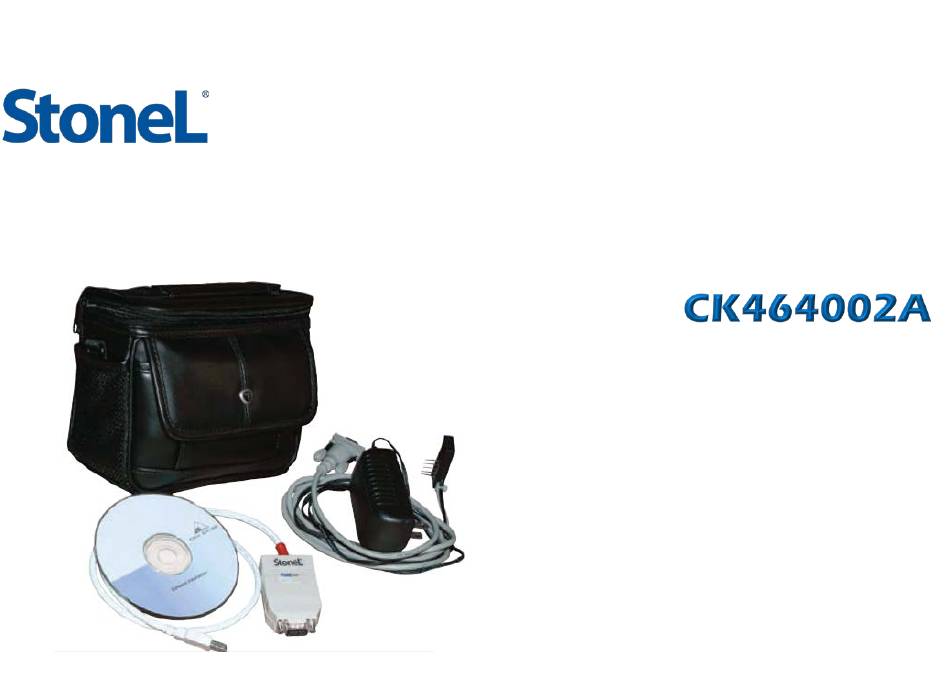

- Page 3 Commissioning kit contents • DeviceNet commissioning cable assembly • Portable 24VDC power supply • DeviceNet master simulator software • Carrying case © StoneL Valve Communication Solutions...
- Page 4 Commissioning kit requirements • 120VAC outlet • Laptop with Windows 7 or later • USB port • At least (1) DeviceNet device • DeviceNet cable © StoneL Valve Communication Solutions...
- Page 5 Install software • Install software before connecting dongle to PC. © StoneL Valve Communication Solutions...
- Page 6 Connect serial cable to Dongle • Connect 5-pin plug into device, ensure correct polarity! • Plug power supply into 120VAC outlet. * If you connect to a different USB port next time, drivers may need to be re-installed © StoneL Valve Communication Solutions...
- Page 7 Start DeviceNet Master Simulator software © StoneL Valve Communication Solutions...
- Page 8 Search for DeviceNet device Search for attached devices Device found at address 63 © StoneL Valve Communication Solutions...
- Page 9 Function: Change Device attributes • Change address (MAC ID) • Change Baud rate © StoneL Valve Communication Solutions...
- Page 10 Change DeviceNet address and/or baud rate © StoneL Valve Communication Solutions...
- Page 11 Change DeviceNet address and/or baud rate • Change address or baud rate of connected device • Cycle power to device to enact change. © StoneL Valve Communication Solutions...
- Page 12 Function: Test device I/O • Read inputs • Write / Set outputs • View device identification attributes © StoneL Valve Communication Solutions...
- Page 13 Start I/O communications After device is found we can start I/O communications © StoneL Valve Communication Solutions...
- Page 14 I/O communication started © StoneL Valve Communication Solutions...
- Page 15 I/O communication - Outputs • View device’s installation manual for bit assignment • For this device: Bit 0 = energize solenoid © StoneL Valve Communication Solutions...
- Page 16 I/O communication - Inputs • View device’s installation manual for bit assignment • For this device: Bit 0 = valve closed © StoneL Valve Communication Solutions...
- Page 17 I/O communication - Inputs • View device’s installation manual for bit assignment • For this device: Bit 1 = valve open © StoneL Valve Communication Solutions...
- Page 18 DeviceNet Commissioning kit • If you have any questions or need additional assistance, contact StoneL tech support: sales@stoneL.com StoneL Tech hotline: (218) 739-0701 © StoneL Valve Communication Solutions...
