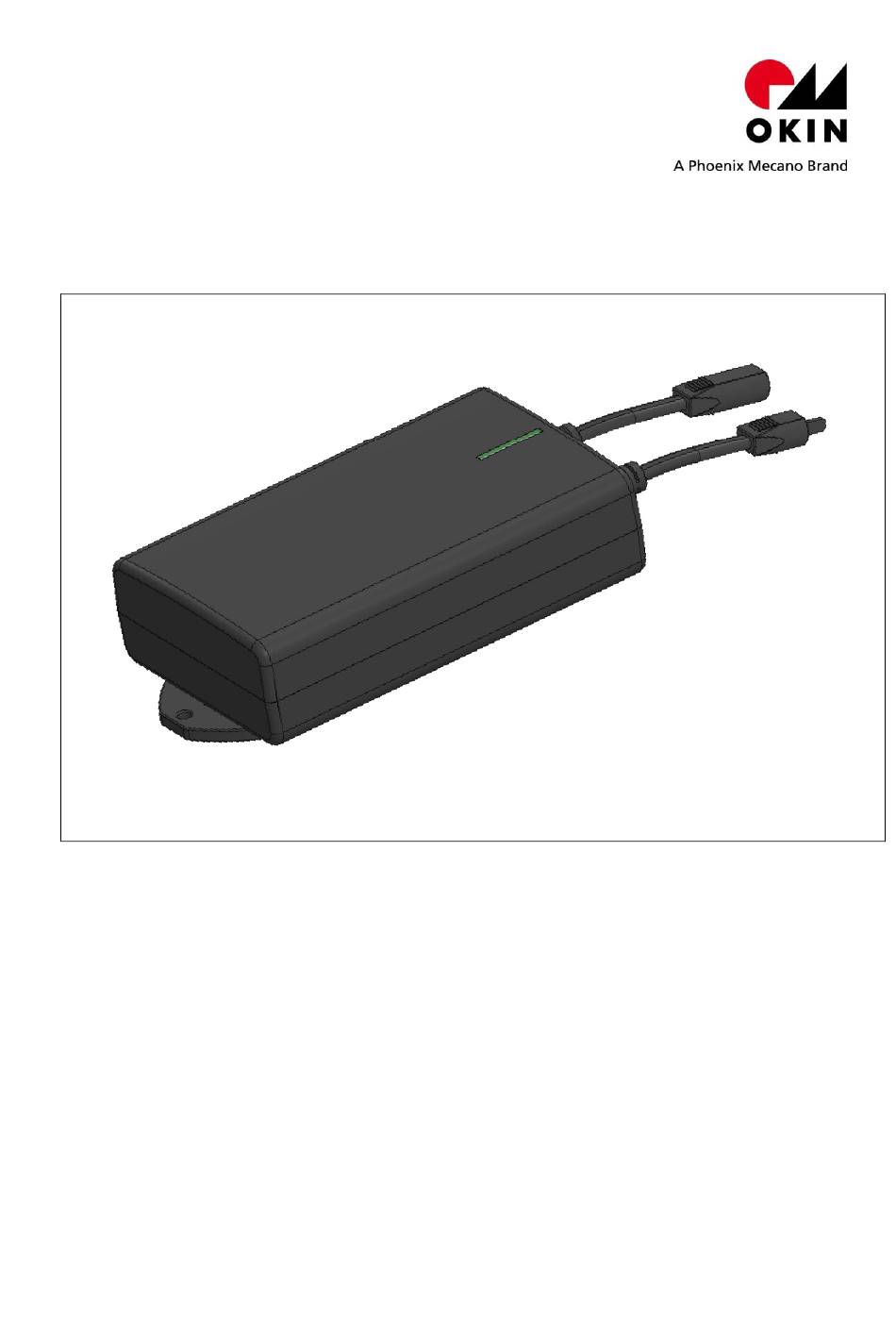

- Page 1 POWER PACK 1800 Installation Instruction (Original installation instruction, translation)
-
Page 2: Foreword
POWER PACK 1800 Foreword Revisions Version Date Changes 12/2017 01/2020 Ratings plate, Mountings plate, EU Declaration of Conformity adjusted Disclaimer and exclusion of liability DewertOkin is not responsible for damage resulting from: failure to observe these instructions, changes made to this product which have not been approved by DewertOkin, or ... -
Page 3: Table Of Contents
POWER PACK 1800 Table of Contents Foreword Revisions Disclaimer and exclusion of liability Creation of a complete operating instruction manual for the entire end product Table of Contents General Conventions used Warranty Selection and qualification of personnel Safety notices Product identification Description Dimentions Connection... -
Page 4: General
POWER PACK 1800 General The manufacturer of the end product must create an operating manual for that end product. The contents and especially the safety notices found in this document can be used in the op- erating instructions for the end product. Read attentively and follow this information carefully before handling the rechargeable batter- ies. -
Page 5: Safety Notices
POWER PACK 1800 Safety notices CAUTION Leaking batteries present a health hazard! Leaking battery fluid can injure your skin or eyes. The fluid is harmful when touched or swallowed. If you come into contact with battery fluid, clean the affected area with water and con- tact a doctor. -
Page 6: Product Identification
POWER PACK 1800 Product identification A ratings plate on each product specifies the exact name and serial number of the product. It also states the technical specifications valid for that particular product. The ratings plate shown is an example; the specifications for your product may differ from this illustration. -
Page 7: Description
POWER PACK 1800 Description POWER PACK 1800 The POWER PACK 1800 serves for mains independent power supply of electro motorical adjustable applications. The POWER PACK 1800 has the following special features: The POWER PACK 1800 is used as a power supply at power failure. ... -
Page 8: Dimentions
POWER PACK 1800 Power Supply PD21 Input: 100-240V AC, 50-60 Hz , 1,6 A Output: 29 V DC, 2 A Fig. 04: Power Supply PD21 Warning: For charging the must be used POWER PACK 1800 PD21 POWER SUPPLY Dimentions POWER PACK 1800 Fig. - Page 9 POWER PACK 1800 Mounting plate (options) 88952 2.0...
-
Page 10: Connection
POWER PACK 1800 Connection As standard the POWER PACK 1300 is charged as needed with the PD21 POWER SUPPLY Fig. 06: Overview of charging NOTICE Should the POWER PACK 1800 be used in combination with operating elements that have a power consumption at rest, such as touch sensors, RF-systems or Bluetooth-adapters it perhaps must be charged more frequently. -
Page 11: Notes For Packaging And Transport
POWER PACK 1800 Notes for packaging and transport CAUTION Damaged POWER PACK 1800 A damaged POWER PACK 1800 must not be connected or taken into operation. Please contact your sales partner/supplier immediately! The POWER PACK 1300 is shipped ex works according to the applicable packaging regula- tions. -
Page 12: Storage
POWER PACK 1800 Storage CAUTION The battery should be stored so that the battery terminals cannot short circuit each other and so the terminals cannot be short circuited by any metal surroundings. NOTICE Rechargeable batteries must be charged at least six months after their production date or charged immediately upon delivery and then after six months of storage. -
Page 13: Operation
POWER PACK 1800 Operation Type of check / Explanation Time interval action To maintain battery performance No longer than six months Recharging after date of manufacture. Recharge during storage to maintain At least every six months. Recharging dur- battery performance capability ing storage Ambient conditions for operation, storage and transport Transport / storage temperature:... -
Page 14: Charging The Battery
POWER PACK 1800 Charging the battery NOTICE Due to the chemical reactions the POWER PACK 1800 warms-up during charging. If the POWER PACK 1800 should become really hot, the protective circuit is defective. In this case remove all connection cables of the drive / control unit and check the unit (POWER PACK 1800 and PD21 POWER SUPPLY) by an authorized technician or producer. -
Page 15: Notes For Operation
POWER PACK 1800 Notes for operation NOTICE If you not use the drive system for an extended period, disconnect the POWER PACK 1800 from the control unit/drive system as well as from the mains supply. It should then be re-connected if you plan to use the system. This will prevent the battery from losing its charge in certain applications. -
Page 16: Cleaning And Care
POWER PACK 1800 Cleaning and care The POWER PACK 1800 is maintenance free. 1 Be sure to unplug all connecting cables before you begin cleaning it! 2 Clean the POWER PACK 1800 as needed using a dry, antistatic cloth. 3 Be sure that you do not damage the connecting cables during the cleaning NOTICE Never clean the POWER PACK 1800 in an automated washing system or with a high-pres- sure cleaner. -
Page 17: Eu Declaration Of Conformity
EU Declaration of Conformity EG-Konformitätserklärung Nach Anhang IV der EMV-Richtlinie 2014/30/EU In compliance with Appendix IV of the EMC-Directive 2014/30/EU Nach Anhang IV der EU-Niederspannungsrichtlinie In compliance with Appendix IV of the LVD-Directive 2014/35/EU 2014/35/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl. - Page 18 DewertOkin GmbH Weststraße 1 32278 Kirchlengern Tel: +49 (0)5223/979-0 Fax: +49 (0)5223/75182 http://www.dewertokin.de Info@dewertokin.de ID-No.: 88952...
