REVELL 1970 Chevelle SS 454 Manual

Step 13
TIRE
★A
CUSTOM WHEEL
CHROME
Step 16
Sticker Placement Guide
OPTIONAL DECALS
5
OPTIONAL
STICKER #7 MAY BE CUT FROM
STICKER SHEET WITH BACKING
AND ATTACHED TO FRONT BUM-
PER USING WHITE GLUE
4
6
NOTE:
When applying stickers, avoid touching the "sticky" side to prevent finger prints on stickers. Bend sticker sheet slightly to lift edge of sticker & use a fingernail to lift
sticker from sheet. Line up sticker on body and press an edge into place, slowly working sticker with a fingernail until sticker is fully on model.
REMARQUE :
Pendant l'application des autocollants, éviter de toucher à la face collante pour ne pas laisser d'empreintes. Plier légèrement la feuille d'autocollants pour relever le
bord d'un autocollant, et le détacher de la feuille avec le bout d'un ongle. Aligner l'autocollant sur la carrosserie, appuyer pour coller un de ses bords, et continuer de
l'appliquer lentement du bout de l'ongle jusqu'à ce qu'il soit complètement collé sur le modèle réduit.
Step 14
METAL AXLE
METAL AXLE
10
CHASSIS
LOWERED
YOU MAY BUILD YOUR '70 CHEV-
ELLE WITH A STOCK OR LOW-
ERED RIDE HEIGHT. INSERT
THE METAL AXLES THROUGH
THE LOWER HOLES FOR A
STOCK
STOCK RIDE HEIGHT OR
THROUGH THE UPPER HOLES
FOR A LOWERED RIDE HEIGHT
8
1
3
2
Step 15
SCREWS
ANY UNUSED PARTS MAY BE DISCARDED
Parts Included
10
9
3
7
17
10
20
8
18
4
19
6
TIRES 5
AXLES
2
SCREWS
13
A
A
11
A
A
14
12
KIT 1932
'70 Chevelle
The 1970 Chevrolet Chevelle
®
most awesome muscle cars that ever prowled the streets.
The biggest, most powerful engine available was the
LS-6 454, which Chevrolet rated at a staggering 450 HP-
the highest horsepower rating of any muscle car. This
engine was capable of pushing the Chevelle to impres-
sive quarter mile times in the mid 13 second range at
around 110 mph. Some Chevelle SS 454s were equipped
with a special "cowl induction" hood with a vacuum oper-
ated flap at the rear of the hood that flipped up to draw
cool air in to the monster engine. Today, because of its
rarity and outrageous looks and performance, the 1970
Chevelle SS 454 is a highly valued collector car.

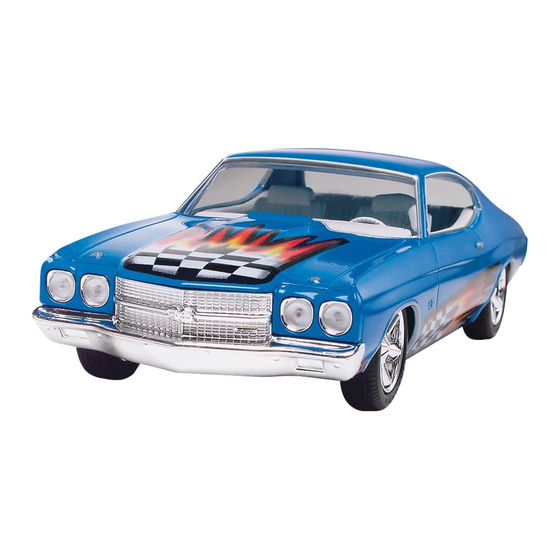

Your Revell kit features easy snap and screw together
assembly, chrome plated parts, a factory stock or low-
ered ride height option, and colorful stick-on graphics.
1 * REPEAT SEVERAL TIMES
* A REPETER PLUSIEURS FOIS
* OPTIONAL PARTS
* PIECES EN OPTION
READ BEFORE YOU BEGIN
• CLEAR A SPACE TO WORK ON
• STUDY THE ASSEMBLY DRAWINGS
BEFORE YOU BEGIN
• EACH PLASTIC PART IS IDENTIFIED BY A
PART NUMBER
• DO NOT OVER TIGHTEN SCREWS
• SEE NOTE ABOUT APPLYING STICKERS
IN STEP #16
CAUTION:
POSITION ALL PARTS IN THIS KIT
CAREFULLY. PARTS WILL ONLY SNAP
TOGETHER ONCE.
If you have any questions or comments, call our hotline at:
or, please write to:
Revell Inc Consumer Service Department, 1850 Howard Street Unit A,
Elk Grove Village, Illinois 60007
Be sure to include the plan number (85193210200), part number, description,
your return address and phone number.
Visit our website: www.revell.com
Revell Inc Elk Grove Village, IL. Copyright © 2009. All rights reserved.
85193210200
SS 454
™
SS 454 is one of the
™ ™
* REMOVE AND THROW AWAY
* A RETIRER ET JETER
* APPLY STICKERS
*APPLIQUEZ LES AUTO-COLLANTS
Á LIRE AVANT DE COMMENCER
• DÉGAGGEZ UN ESPACE POUR TRA-
VAILLER.
• ÉTUDIEZ LES ÉTAPES DE MONTAGE
AVANT DE COMMENCER.
• CHAQUE PIÉCE EN PLASTIQUE PORTE
UN NUMÉRO DE PIÉCE.
• NE SERREZ PAS TROP LES VIS.
• LISEZ LA RE MARQUE CONCERNANT
L´APPLICATION DES AUTO COLLANTS,
´A L´ÉTAPE 16.
MISE EN GARDE:
POSITIONNEZ AVEC PRÉCAUTION TOUTES
LES PIÉCES DE CE MODÉLE RÉDUIT, CAR
VOUS NE POUVEZLES EMBOîTER QU'UNE
SEULE FOIS.
(800) 833-3570
