Thank you for purchasing an Outdoor Revolution product, this product will give years of satisfactory service if basic instructions
are followed, Outdoor Revolution products are designed for durability and for ease of erection.
Spare poles are not warranted but can be purchased to replace broken poles, see our website
** Journey 330ex awnings will not be swapped because of broken poles**

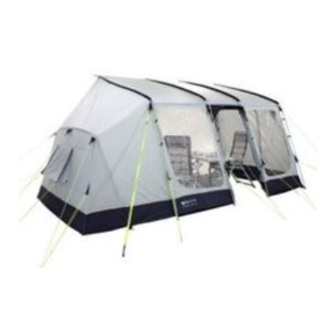

TIP: Refer to the photograph to help when pitching your Journey 330ex.
Please do not leave for your vacation without fully erecting and checking the contents of your porch.
• • • •
• • • • Ideally erect your awning for some period allowing it to weather.
• • • • Please make sure that before erecting, that you site the awning on clear Level ground with no sharp objects
underneath, and that all the zips are fully closed. (We recommend laying a groundsheet down to keep the
awning Dry and clean)
• • • • If you have any issues relating to pitching your awning please contact your dealer for instructions before
going on holiday.
(Make yourself familiar with the awning and its parts before attempting to erect)

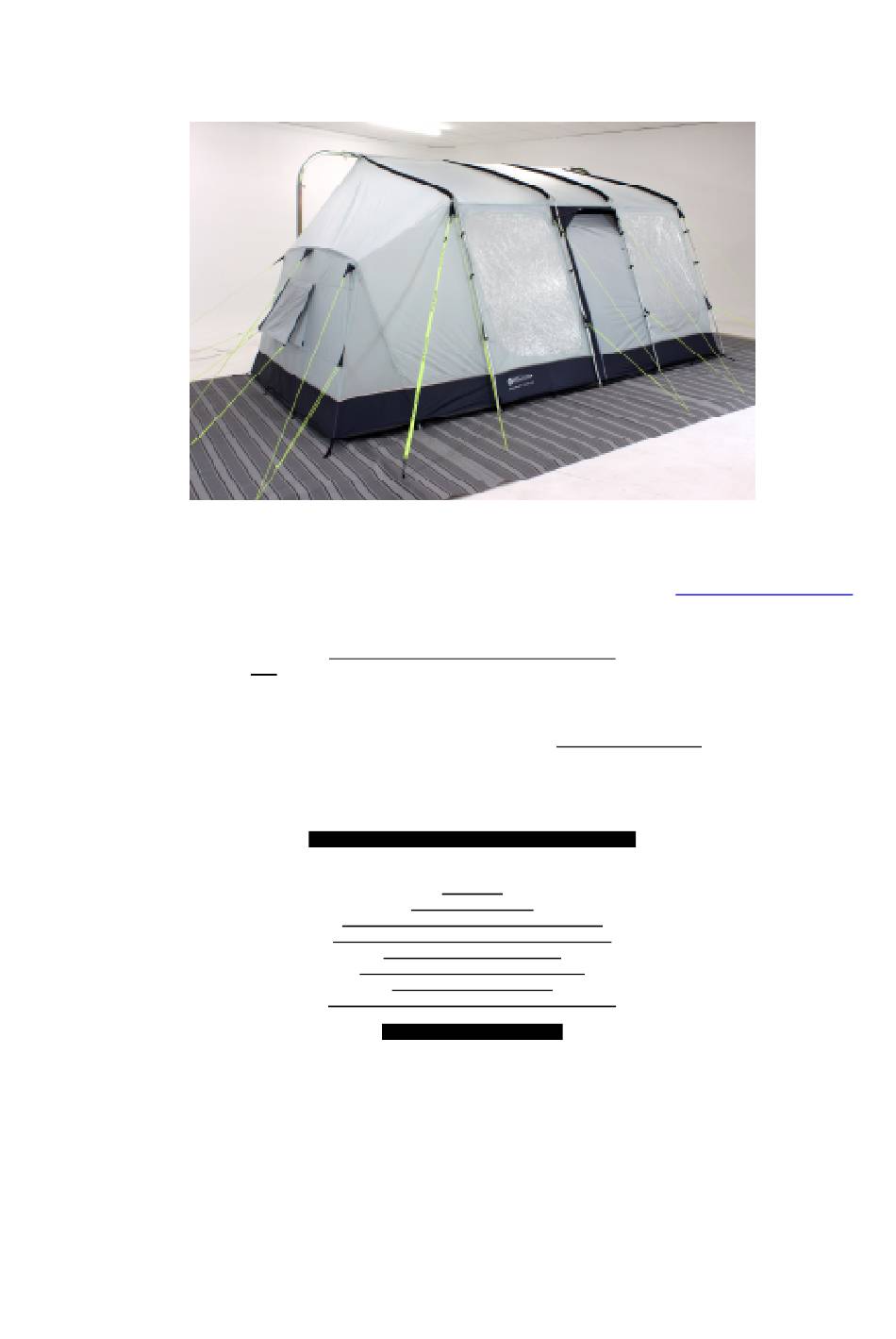

Tip; REFER TO PHOTOGRAPH WHEN PUTTING UP COMPACTALITE PRO 250
1.
Lay the outer/flysheet and spread out on the ground, Ensure all panels are zipped up fully. Before starting to put the
awning on your caravan check the edges of the channel for any sharp corners or damage as this can snag the
fabric and sometimes cause damage to the awning. Slide the awning profile through the caravan rail, and spread
evenly across the caravan roof
2.
Once the awning is in the desired position on your caravan open the pole bag and take out the 4 fibreglass roof poles
and 4 steel poles and lay out on the ground, (Most poles are broken during pitching so take extreme care at this
Please read the following instructions carefully
IMPORTANT PLEASE CHECK YOUR EQUIPMENT

Contents

Flysheet (or outer)
4 x Fibreglass poles (in a separate bag)
4 x steel vertical legs with pre bent angles
Internal adjusting steel bar
Steel annexe frame (in 3 sections)
Pegs (in a separate bag)
Outer carrying bag (with dimension details)

ERECTION INSTRUCTIONS

Ideally this is a 2 person process to avoid awning damage.
MODEL Journey 330ex
www.outdoor-revolution.com
