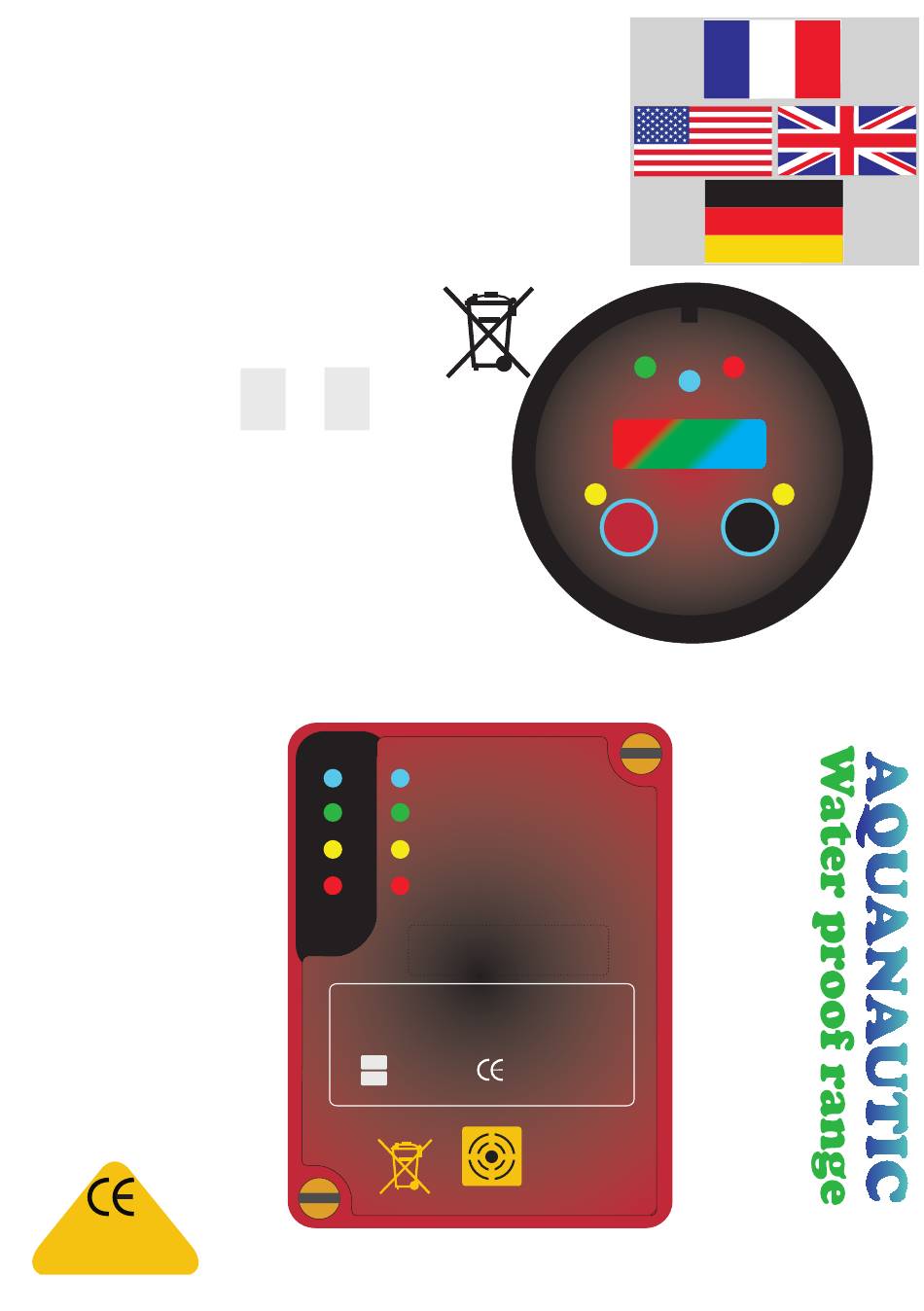

Sterling Power Products Pro Latch R 80 Instructions Manual

Sterling Power Products
12/24 v auto select
Pro
Latching Relay
Selectable,
Magnetically programmable for the following functions:
1) Bidirectional charging relay
2) Battery Protection relay
3) Engine start protection relay
4) Unidirectional charging relay
Models available (amps)
Relay continuous rating (amps)
Instant overload (amps)
P ower consumption of product :
S leep mode ( quiescent current ) 1 mA
Active under power 20 mA
Sleep + Remote sleep 3mA
Unit + remote under power 40mA
Unit + remote + background light LCD 60mA
High Voltage trip 15.5 V at 12 V - 31 V at 24 V
www.sterling-power.com
www.sterling-power-usa.com
Always ensure the continuous rating of this product is larger than the
maximum current available from the current generating device
( i.e. alternator or charger ) otherwise the unit may be damaged.
The battery bank size is not important.
This is unit is fitted with
the latest active
progressive disconnect
algorithm to ensure that
there are no unnecessary
engagement and
disengagements of the
relay. As such there will
be various time delays
between what the
customer has preset as
the turn off point and the
product actually turning
off. The time delay shall
reduce as the voltage
lowers (below that of the
programmed disconnect
voltage) .
RoHS
compliant
Latch R
80 160 240
80 160 240
500 1000 1500
IP 68
Waterproof
Selectable, Latching Relay:
Programmable for: Charging Relay,
Programmable for: Charging Relay,
Engine Start or Battery & Product Protect
Engine Start or Battery Product Protect
Continuous rating: -----
Continuos rating: ----- Intermittent:
www.sterling-power.com www.sterling-power-usa.com www.sterling-power.com www.sterling-power-usa.com
Designed and developed in England
: 80/160/240 amp models
Designed and manufactured in England
Designed and manufactured in England
Relay engaged
Relay engaged
Function selected
Function selected
Solid green = bidirectional charge
Solid charging relay mode
Flash green = battery protect
Flash battery protect mode
2 Flash green = engine start protect
3 Flash green = unidirectional charge
2 Flash engine start protect
Low input voltage
Low input voltage
Fault / High Voltage trip
High voltage trip
Green 12 volt : Yellow 24 volt Green 12 volt : Yellow 24 volt
Sterling
Sterling
Selectable, Latching Relay:
instantaneous:
80 amp 500 amps
80 amp 200 amps
160 amp 1000 amps
160 amp 400 amps
240 amp 1500 amps
Automatic 12/24 v select
Extra help labels
Extra help labels
under lid & under lid &
under box under box
Magnetic swipe
Magnetic swipe
Closed
Sleep
Alarm
Sterling Power Products
V
12.6
In
Back
Select
light
Latching relay
Optional remote control
screen colour changes
with condition
IP68
waterproof
RoHS RoHS
compliant compliant
Warranty:
2 years return to factory
conditional warranty
English
French
Deutsch
Out
