McElroy PolyHorse Operator's Manual

Pipe rack system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's
Manual
PolyHorse
Pipe Rack System
Manual: 1877501 Revision: G 11/18
Original Language: English
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PolyHorse and is the answer not in the manual?

Questions and answers

Summary of Contents for McElroy PolyHorse

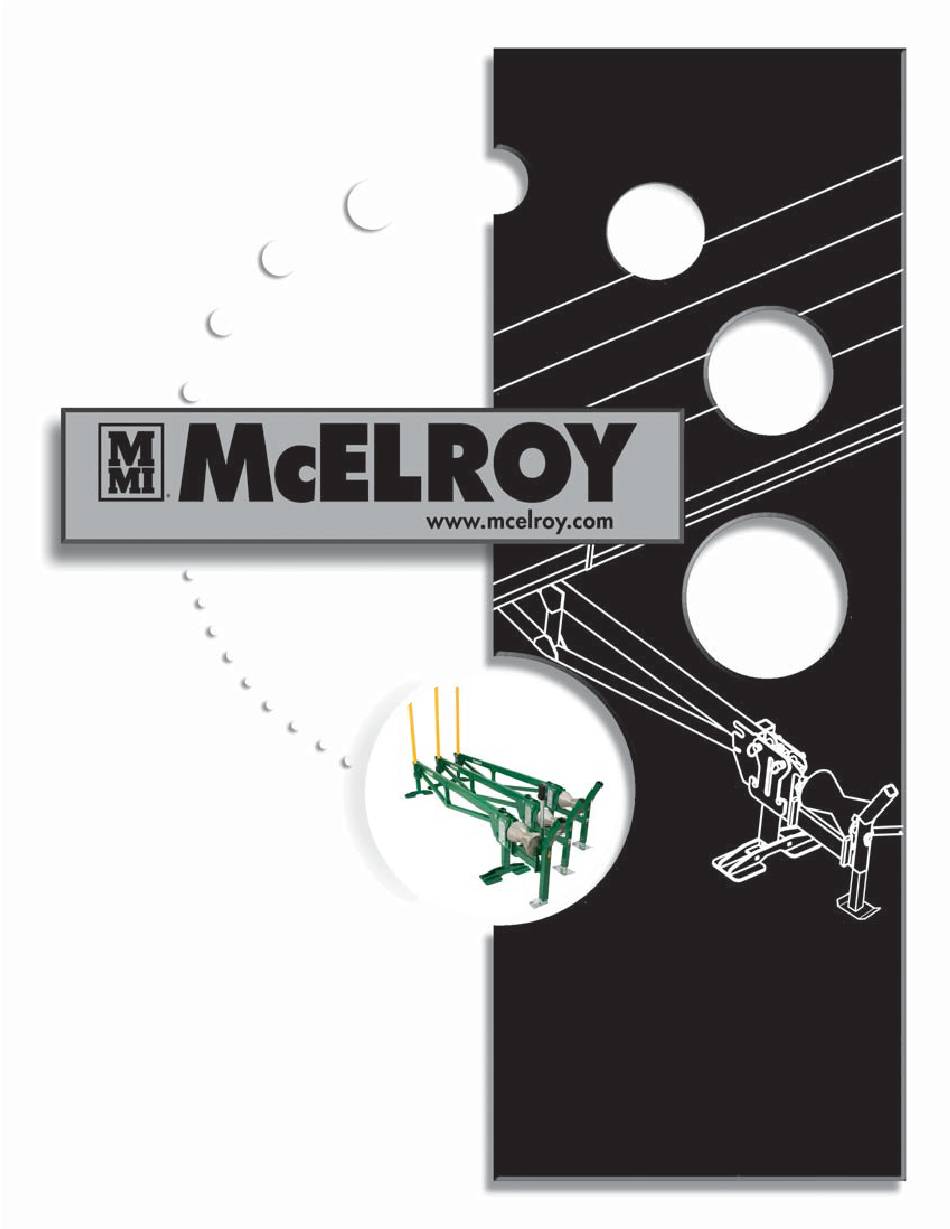

  • Page 1 Operator’s Manual ® PolyHorse Pipe Rack System Manual: 1877501 Revision: G 11/18 Original Language: English...
  • Page 2 Cancer and Reproductive Harm - www.P65warnings.ca.gov This product and other products could be protected by patents or have patents pending. All the latest patent information is available at patent.mcelroy.com...
  • Page 3 Always return the manual to the literature compartment. TX02678-12-6-06 McElroy University For more than 30 years, McElroy has been the only pipe fusion machine manufacturer to continuously offer advanced training. Course offerings are meant to enhance your efficiency, productivity and safety in the proper use of McElroy machines.
  • Page 4 McElroy or has become damaged McElroy reserves the right to make any changes in or due to misuse, negligence or casualty, or has not been improvements on its products without incurring any operated or maintained according to McElroy’s printed...

  • Page 5: Table Of Contents

    Overview PolyHorse ....... . . 2-1 PolyHorse Power Assist (Optional) ....2-4 Initial Setup Truss Assembly .

  • Page 6: Equipment Safety

    Follow all applicable federal, state, local, and industry specific regulations. McElroy Manufacturing, Inc. cannot anticipate every possible circumstance that might involve a potential hazard. The warnings in this manual and on the machine are therefore not all inclusive.

  • Page 7: General Safety

    Equipment Safety General Safety Safety is important. Report anything unusual that you notice during set up or operation. LISTEN for thumps, bumps, rattles, squeals, air leaks, or unusual sounds. SMELL odors like burning insulation, hot metal, burning rubber, hot oil, or natural gas. FEEL any changes in the way the equipment operates.

  • Page 8: Use Stanchions

    Equipment Safety Use Stanchions Use stanchions while pipe is on racks. Do not stack pipe above stanchion height. Failure to do so may result in serious injury or death. ¡PELIGRO! TX02681-05-30-14 Tipping Hazard Never use pipe racks without drop foot properly in place.

  • Page 9: Cutting Pipe Bands

    NOTICE: Only single stack pipe bundles on the roller side of the PolyHorse. Cut only single stacked bundles from the roller side of the PolyHorse, and only without pipe in the roller. When it is necessary to cut bands from the roller side, cut all the inner banding on the pipe bundle then cut the outer two bands last.

  • Page 10: Overview

    Overview PolyHorse The Polyhorse is a pipe rack system designed to stage multiple sticks of plastic pipe at the proper height for feeding directly into a McElroy fusion machine. By doing this, the time consuming task of pipe loading into the fusion machine is greatly reduced increasing overall productivity.
  • Page 11 Screw Jack Assembly - 1875901 The Screw Jack Assembly is used to support the Truss Assembly. The screw jack also allows the operator to level the PolyHorse on uneven terrain and control the roll of the pipe. Pivot Roller Support Assembly - 1876301 The Pivot Roller Support Assembly is positioned on the truss that is closest to the fusion machine.
  • Page 12 Stanchion - 1877101 The Stanchion is an upright that is used on the rear portion of the PolyHorse to prevent pipe from rolling off the rear. There is one Stanchion used for each Truss Assembly. The Stanchion should always be in place when pipe is on the PolyHorse.

  • Page 13: Polyhorse Power Assist (Optional)

    The optional PolyHorse Power Assist can be connected to the fusion machine's hydraulic system to power the front pipe roller on the PolyHorse. The Power Assist is used to aid in feeding pipe into the fusion machine by powering the front pipe roller and has controls to raise and lower the pipe.

  • Page 14: Initial Setup

    Initial Setup Truss Assembly Insert bottom truss assembly shaft into the j-hook on screw jack assembly. Align the upper holes and insert the detent pin. TX02685-12-6-06 Roller Assembly Insert bottom roller assembly shaft into the j-hook on screw jack assembly. Align the upper holes and insert the detent pin.

  • Page 15: Truss Assembly Positioning

    Set up on solid ground if possible. In soft ground conditions it may be necessary to place screw jack assemblies on a large base to spread out the load and help prevent Polyhorse from sinking into the ground when loaded with pipe. TX02687-12-6-06...

  • Page 16: Adjusting Front Height

    Initial Setup Adjusting the Front Height Before loading any pipe, adjust the height of each front screw jack using speed wrench. The height of the pipe rollers should allow the pipe to be inline with the fusion machine jaws. IMPORTANT: A string or a low cost laser level can be used to check the height of each roller to the height of the fusion machine jaws.

  • Page 17: Stanchions

    Initial Setup Stanchions Insert stanchions in the rear stanchion sockets on each of the truss assemblies. Use stanchions while pipe is on racks. Do not stack pipe above stanchion height. Failure to do so may result in serious injury or death. ¡PELIGRO! TX02691-05-30-14 Additional Truss Assemblies...

  • Page 18: Additional Roller Assemblies

    Initial Setup Additional Roller Assemblies "Piggy-back" additional pipe roller assemblies to the rear for dual fusion machine operation (See Section - Additional Pipe Staging Options). Insert bottom roller assembly shaft into the j-hook on screw jack assembly. Align the upper holes and insert the detent pin. Adjust the height of the roller assembly drop foot.

  • Page 19: Fusion Machine Setup

    Fusion Machine Setup Position Fusion Machine Position fusion machine to the left of the PolyHorse so the movable jaws are facing toward the pivot roller of the PolyHorse. Fusion machine should be in line with the PolyHorse pipe rollers. NOTICE: Pipe should be positioned as shown, being careful not to hit the fusion machine...

  • Page 20: Power Assist Setup

    The optional PolyHorse Powered Assist can be connected to the fusion machine's hydraulic system to power the pipe roller on the PolyHorse. The Powered Assist is used to aid in moving pipe in and out of the fusion machine by powering the front pipe roller and has controls to raise and lower the pipe.

  • Page 21: Pipe Handling

    Pipe Handling Loading Pipe onto the PolyHorse NOTICE: Pipe should be positioned as shown, being careful not to come in contact with the fusion machine. Pipe should be loaded to allow a minimum of 6 ft. of pipe at the end of the rack to extend past the last truss, so that when pipe is fed into the machine, the pipe is still supported by the last roller.

  • Page 22: Cutting Pipe Bands

    NOTICE: Only single stack pipe bundles on the roller side of the PolyHorse. Cut only single stacked bundles from the roller side of the PolyHorse, and only without pipe in the roller. When it is necessary to cut bands from the roller side, cut all the inner banding on the pipe bundle then cut the outer two bands last.
  • Page 23 Pipe Handling Cutting Pipe Bands (continued) Cutting Bands without Stanchions Cutting Bands with Stanchions Cutting Bands double stacked with pipe in rollers Cutting Bands single stacked with no pipe in rollers Cutting Bands with pipe in rollers 6 - 3...

  • Page 24: Loading Pipe Into Rollers

    1 then 2 then 3. Dispense pipe here NOTICE: Only dispense pipe from the end of the PolyHorse. Standing at the end of the PolyHorse, roll one stick of pipe into the roller assemblies. TX03032-10-13-09 Pipe Pulling Procedure Raise front of pipe using the pivot lift roller.

  • Page 25: Power Assist Pipe Pulling Procedure (Optional)

    Pipe Handling Power Assist Pipe Pulling Procedure (Optional) Use the operator control to raise or lower the pipe and feed the pipe into the fusion machine. IMPORTANT: If the pipe slips in the Power Assist Roller when moving the pipe, apply pressure to the top of the pipe as you move the pipe.

  • Page 26: Pipe Staging

    NOTICE: Do not exceed maximum pipe loads. Maximum capacity 12,000 lbs. per truss assembly distributed evenly along length. NOTICE: Only single stack pipe bundles on the roller side of the PolyHorse. Do not stack bundles greater than one level above the bundle to the front.

  • Page 27: Pipe Staging Options

    Pipe Staging Maximum Loads (continued) Additional Pipe Staging Options "Piggy-back" additional truss assemblies to the rear for additional pipe holding capacity. 7 - 2...
  • Page 28 Pipe Staging Additional Pipe Staging Options (continued) "Piggy-back" additional rollers to the rear for dual fusion machine operation. In this configuration, only one operator and one vehicle is needed. This will double production. While one joint is cooling, the joint in the other machine can be fused.
  • Page 29 Pipe Staging Additional Pipe Staging Options (continued) Use additional PolyHorses for opposite direction dual fusion machine operation. In this configuration, only one operator and two pipe pulling vehicles are needed. This will double production. While one joint is cooling, the joint in the other machine can be fused.

  • Page 30: Assembly Parts

    Assembly Parts PolyHorse Assembly Part Numbers 1875501 - PolyHorse Assembly 1875601 - Truss Assembly 1876301 - Pivot Roller 1874401 - Power Assist 1875901 - Screw Jack Assembly Support Assembly Roller Assembly (Optional) 1876302 - Stationary Roller 1877101 - Stanchion 1818501 - Speed Wrench...
  • Page 31 Safety Instruction Label spread out the load and help prevent Polyhorse from sinking into the ground when loaded with pipe. 4. Make sure lower pins of truss assemblies and pipe roller...

  • Page 32: Specifications

    Specifications PolyHorse Total Weight (1875501 assembly): 1000 lbs. Total Weight with Power Assist Roller: 1,200 lbs. Maximum capacity for each individual truss assembly: 12,000 lbs. distributed evenly along length of truss. Example: 3 truss assemblies - 36,000 lbs. 75" FULLY RETRACTED 90"...
  • Page 33 About this manual . . . McElroy Manufacturing continually strives to give customers the best quality products available. This manual is printed with materials made for durable applications and harsh environments. This manual is waterproof, tear resistant, grease resistant, abrasion resistant and the bonding quality of the printing ensures a readable, durable product.
