Aufbau
1 Befestigen Sie die Mechanik am Sitzteil.
2 Montieren Sie die Armlehnen am Sitz-
teil.
3 Befestigen Sie die Rückenlehne am Sitzteil.
4 Drücken Sie je einen Gleiter in die fünf
Öffnungen des Fußkreuzes.
5 Stecken Sie die Gasfeder mittig in das
Fußkreuz. Entfernen Sie (falls vorhanden)
vor dem Einbau die Schutzkappe vom Aus-
lösepin der Gasfeder. Diese lässt sich leicht
entfernen.
6 Schrauben Sie die Fußstütze auf die Gasfe-
der auf.
Setzen Sie das Sitzteil auf die Gasdruckfeder.
7/8
Setzen Sie sich nun mehrmals auf den Stuhl,
damit die Verbindung zwischen Sitz, Gasfe-
der und Fuß gefestigt wird.
Sicherheitshinweis Gasfeder:
Gasfeder nie selbst zerlegen, einstechen oder
öffnen. Korpus steht unter Druck.
#
Bezeichnung
Stück
A
Gleiter
5x
B
Fußkreuz
1x
C
Gasfeder
1x
D
Mechanik
1x
E
Sitzteil
1x
F
Armlehne
2x
G
Rückenlehne
1x
H
Schraube M6x30
6x
I
Schraube M6x35
4x
J
Schraube M8x40
3x
K
Beilagscheibe M6
4x
L
Federscheibe M8
9x
Assembly
1 Mount the mechanism onto the seat.
2 Mount the armrests onto the seat.
3 Mount the backrest onto the seat.
4 Insert the five glider into designated holes at
the bottom of the 5-star base.
5 Insert the gaslift into the center of the base.
If present, remove the plastic protective cap
from the gas lift.
6 Mount the footrest onto the gaslift.
Place the seat onto the gaslift. Repeatedly sit
7/8
onto the chair, so that the connections bet-
ween the seat, gaslift and foot tighten. Now
you can adjust the chair to your individual
needs.
Caution Gaslift:
Never disassemble, puncture or open Gas spring.
Gas cylinder is under pressure.
#
Part
Count
A
Glider
5x
B
Base
1x
C
Gaslift
1x
D
Mechanism
1x
E
Seat
1x
F
Armrest
2x
G
Backrest
1x
H
Screw M6x30
6x
I
Screw M6x35
4x
J
Screw M8x40
3x
K
Washer M6
4x
L
Spring washer M8
9x

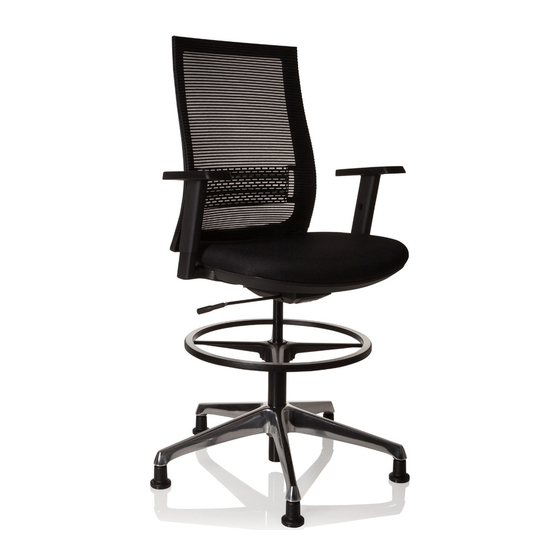

TOP WORK 99
Aufbauanleitung
Assembly instructions
Praktischer Tipp!
So stellen Sie Ihren neuen
Bürostuhl richtig ein!
