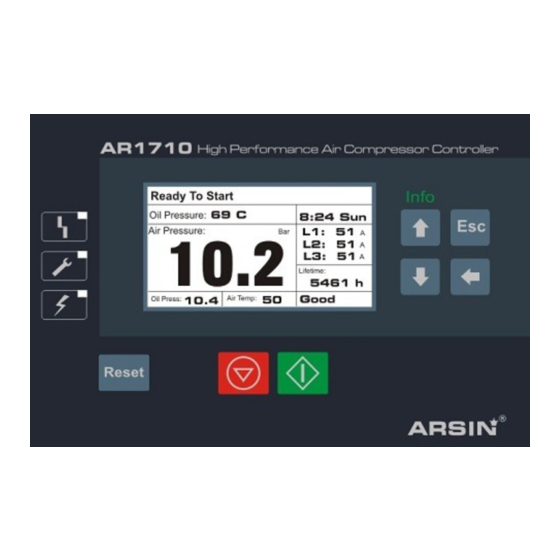

Arsin AR1710 Series User Manual

Air compressor controller unit screw air controller
Hide thumbs

Advertisement

Quick Links

Download this manual
Air Compressor Controller Unit
AR1710 Series:
Screw Air Controller
User Manual
Version 92.9

Advertisement

loading
Need help?

Need help?

Do you have a question about the AR1710 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Arsin AR1710 Series

Summary of Contents for Arsin AR1710 Series

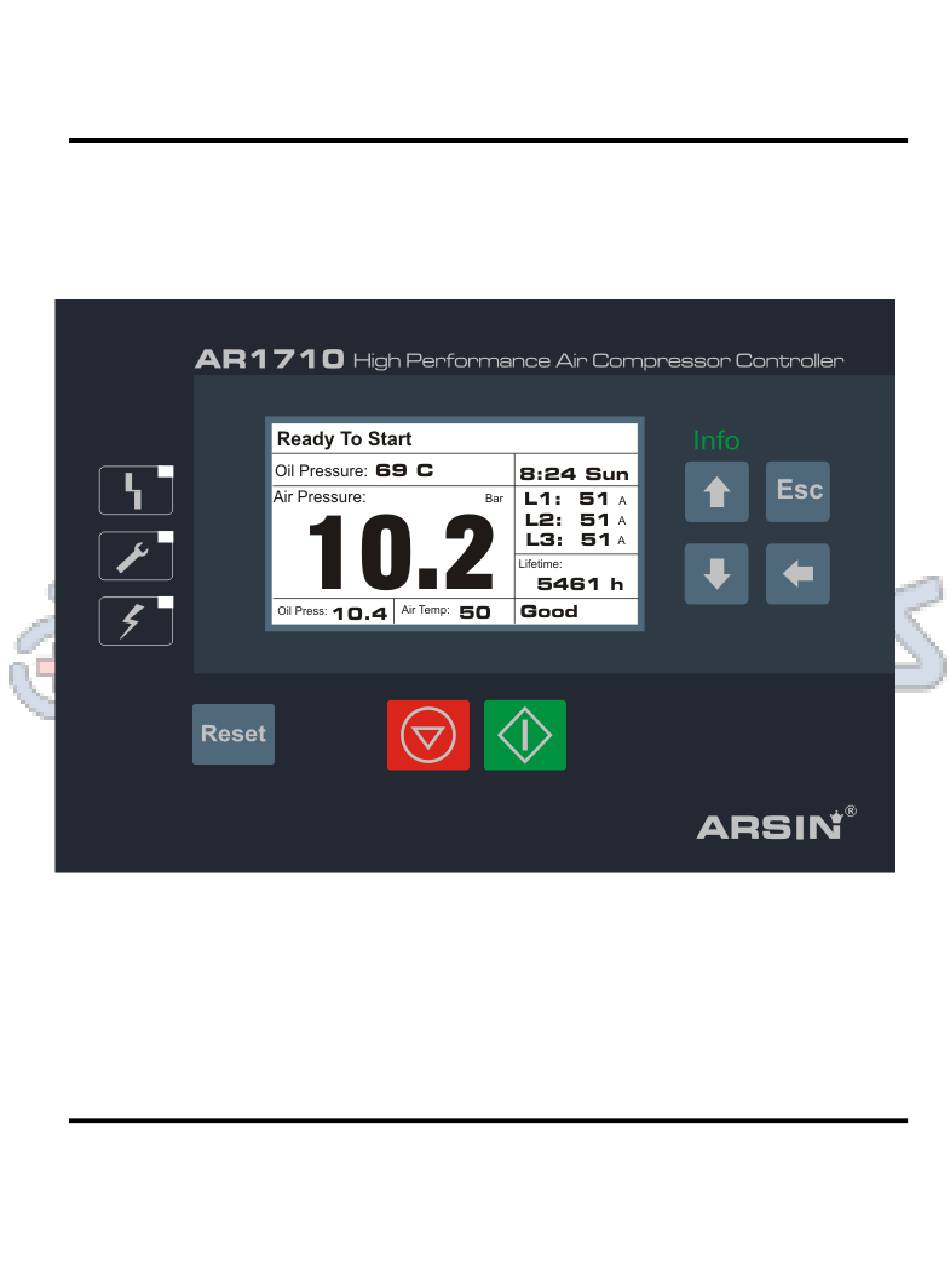

  • Page 1 Air Compressor Controller Unit AR1710 Series: Screw Air Controller User Manual Version 92.9...
  • Page 2  Please connect after checking the terminal number when connecting power. ®  Do not reorganize except mechanic from ARSIN  Do not use outdoor .It would be a cause making the product life shorter.  When connecting wires, please give a good screw on terminal. There is a possibility causing a fire with bad connection.
  • Page 3 AR1710 Series User’s Manual 1. OUTLINE AR1710 is based on Micro Processor and the most advanced equipment for controlling electricity conducting efficient operation of a screw air compressor.AR1710 is a system managing the compressor’s operation intensively, saving energy through controlling of timing for capacity adjustment, preventative and maintenance schedule.
  • Page 4 AR1710 Series User’s Manual 1) Special advantages AR1710 is a stable electronic control unit for screw air compressor which can provide users with running log for integral control and management of the equipments. It adopts the method of digital process by high efficiency RISC type microprocessor and occupies enough installation space and stability by unifying module and control module.
  • Page 5 AR1710 Series User’s Manual 2) Basic specification 2-1) General Specification Input Power AC12V 50/60Hz Power Conditions Power Consumption Max 4.0 VA 2-2) CPU & LCD AT mega 128,16MHz CPU , LCD 240×128 pixel, LED Backlight 2-3) Digital Input &Output Input Type...
  • Page 6 AR1710 Series User’s Manual 2. Input / Output Specification 1) Digital Input Signal Name Function Active state Input Common Terminal Remote Input Signal Remote (close) Rotation Fault Signal Alarm(close) Motor Motor Bimetal Fault Signal Alarm(close) Fan Bimetal Fault Signal Alarm(close)
  • Page 7 AR1710 Series User’s Manual BELDEN 9842 standard cable is recommendable 6) Power Supply Inputs Name Function Auxiliary Supply AC12V Main Supply AC12V...
  • Page 8 AR1710 Series User’s Manual 7) Current measurement Name Function Active state Current Sampling L1 Loop circuit Current Sampling L1 Loop circuit Current Sampling L2 Loop circuit Current Sampling L2 Loop circuit Current Sampling L3 Loop circuit Current Sampling L3 Loop circuit...
  • Page 9 AR1710 Series User’s Manual Constitution 1) Dimensions and panel Cut-Out Information front view: 2) Back view:...
  • Page 10 AR1710 Series User’s Manual 1-1) Basic Constitution Display part specification: 240×128 Graphic LCD 1-2) Operation part Reset: Reset when trip occurred 1-3) Program setup part Enter switch: selection of setup program or value Downward Switch: Moving down to setup program or value...
  • Page 11 AR1710 Series User’s Manual 2) Operation Button Function Start Select Start The equipment starts when pushing start button. Stop Select Stop The equipment stops when pushing stop button. Reset Reset when trip The trip reset automatically doesn’t need to push reset button.

  • Page 12: Test Mode

    AR1710 Series User’s Manual 5. Menu Constitution 1) Main Screen Constitution Type STATUS Delivery Air Temp : 150 C OPERATION Delivery Pressure : 0.0Bar RUNNING LOG Oil Pressure : 0.0C SCHEDULE Oil Temperature : 150C MAINTENANCE Differential Press. : 0.0Bar...
  • Page 13 AR1710 Series User’s Manual STATUS OPERATION 0.2 Bar Unload Pressure Load Pressure : 6.0 Bar RUNNING LOG Auto Stop Delay : 10 Min SCHEDULE Stop Delay : 05 Sec MAINTENANCE Start Delay : 05 Sec SHUTDOEN Drain Time[On] : 05 Sec...
  • Page 14 AR1710 Series User’s Manual STATUS OPERATION RUNNING LOG SCHEDULE SCHDULE MAINTENANCE 08:00 Sunday On SHUTDOEN Sunday Off 17:00 WARN MODE START INHIBIT Monday On 08:00 COMPRESSOR Monday Off 17:00 Tuesday On 08:00 Tuesday Off 17:00 Wednesday On 08:00 Wednesday Off...

  • Page 15: Maintenance

    AR1710 Series User’s Manual STATUS OPERATION RUNNING LOG SCHEDULE SHUTDOEN MAINTENANCE MAINTENANCE : 1000h Dust Filter WARN MODE START INHIBIT Suction Filter : 1000h COMPRESSOR Oil Filter : 1000h Lub. Oil Filter : 1000h Cooler Cleaning : 1000h Overhaul : 5000h...
  • Page 16 AR1710 Series User’s Manual 1)Menu construction STATUS OPERATION RUNNING LOG SCHEDULE 00: Delivery Air Temp. 00: Sun: Start ~ Stop 00: Unload Pressure 00: Event #1 01: Delivery Press. 01: Load Pressure 01: Mon: Start ~ Stop 01: Event #2 03:Oil Pressure.
  • Page 17 AR1710 Series User’s Manual COMPRESSOR VSD MODE* TEST MODE CONFIGURATION 00: Y-Delta Transfer 00:VSD Control Mode 00:Manual Test Mode 00: Master Password Time Setup 01:Maximum Speed 01:Multi Function N1 01: Load Delay Time 01: Trip/Alarm 02:Minimum Speed 02: Multi Function N2...
  • Page 18 AR1710 Series User’s Manual 10-1) Trip Message Description Detect condition System Fault In case of unexpected change of the value of parameter Emergency Stop [Digital Signal Input : Emergency Stop] : ON Sensing Reset [Digital Signal Input : Emergency Stop] : OFF Fan Motor O.L.
  • Page 19 AR1710 Series User’s Manual ※ Fault message occurred is reset by pushing [Reset] button after solving related reason. 10-2) Alarm Message Item Description Detect condition Oil Filter [Digital Signal Input : Oil Filter High] : ON Sensing High Reset [Digital Signal Input : Oil Filter High] : OFF...
  • Page 20 AR1710 Series User’s Manual 6. Wiring Diagram...
