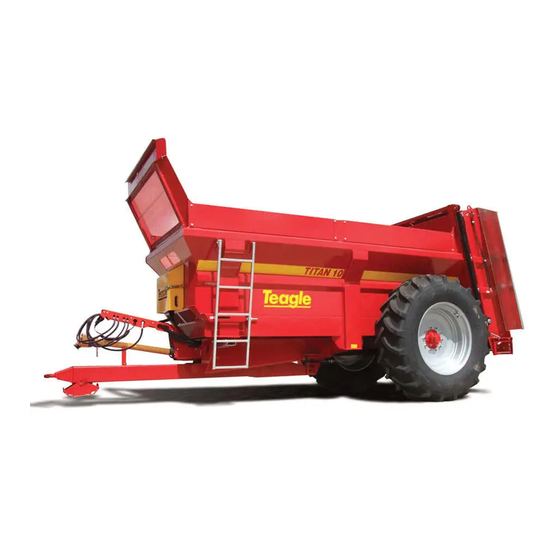

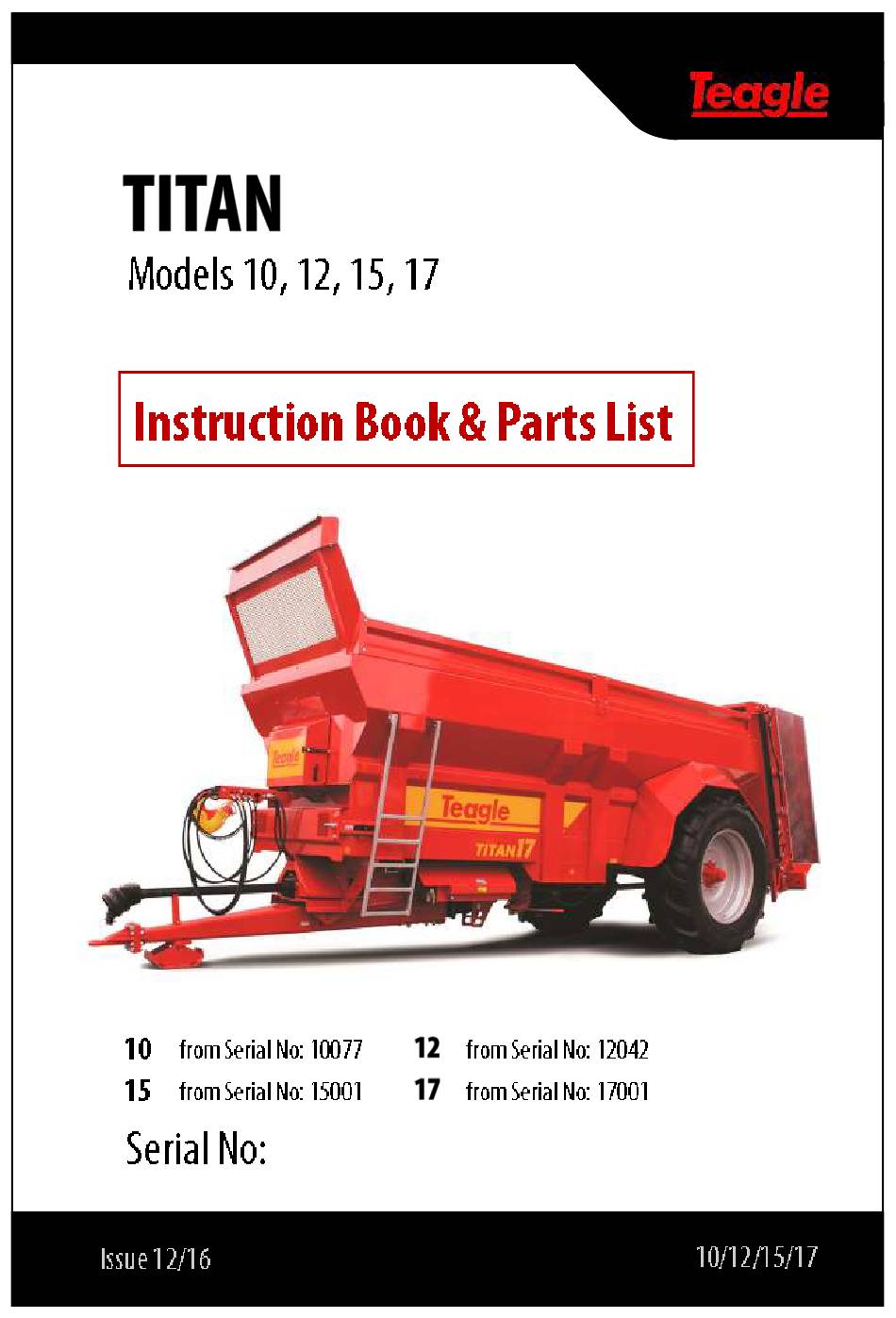

Teagle TITAN 10 Instruction Book / Parts List

Rear discharge muck spreader
Hide thumbs
Table of Contents

Advertisement

Quick Links

-
-
_ _ _ _ _ _ _ _ _ _ _ _
-
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN 10 and is the answer not in the manual?

Questions and answers

Related Manuals for Teagle TITAN 10

Summary of Contents for Teagle TITAN 10

  • Page 1 _ _ _ _ _ _ _ _ _ _ _ _...

  • Page 2: Health And Safety At Work

    SAFETY FIRST! 1. READ THE INSTRUCTION BOOK THOROUGHLY 6. SECURE THE PTO GUARD BY MEANS OF before attempting to operate or carry out any CHECK CHAINS to suitable points on the tractor maintenance on the machine. If you do not and machine to prevent the outer plastic shield from understand any part of this manual, ask your dealer rotating.
  • Page 3 Cornwall TR4 8HQ United Kingdom declares in sole responsibility that the TITAN 10, 12, 15 & 17 Rear Discharge Muck Spreader to which this certificate applies conforms to the essential Health and Safety requirements of EEC Directive 2006/42/EC & 2004/108/EC.
  • Page 4 Poultry muck paddles option Strobe light option Titan 10 and Titan 12 commercial axle and wheels option 35 - 36 Titan 10 and Titan 12 TVZ Assali commercial axle components 37 Load cell kit option Hydraulic jack option Hydraulic jack hydraulic cylinder components...

  • Page 5: Specifications

    SPECIFICATIONS TITAN 10 TITAN 12 TITAN 15 TITAN 17 Capacity Level (m 11.1 12.4 Capacity Heaped (m 11.3 13.6 15.4 17.2 Capacity Heaped c/w Extension Sides (m 13.3 16.0 18.0 20.1 Carrying Capacity (tonnes) Overall Length (mm) 7115 7916 7916...

  • Page 6: Identification Numbers

    SAFETY Ensure that the tractor is equipped with a 1000rpm PTO speed and a 1, 3/8” 6 spline stub shaft. In addition to the standard safety guidelines listed at FITTING THE MACHINE ONTO THE TRACTOR the beginning of this handbook, the following special safety items apply to the Rear Discharge Spreader.
  • Page 7 but when fully extended, the overlap between the loading, or loaded in small blocks, for best results. sliding members must be no less than half of that which exists when the shaft is fully retracted. Note that when lowering the machine on the pick-up hitch, the PTO shaft will retract slightly.

  • Page 8: Oil Levels

    deterioration due to corrosion. If fitted with the Standard Joint Wide Angle electronic bed speed control option, the control box should be stored in the front valve compartment. Normal Work 25 degrees 25 degrees GENERAL Intermittent Work 45 degrees 70/80 degrees Regularly check the condition of the machine, the following areas require particular attention: Not Rotating...

  • Page 9: Pto Driveline

    hours. Table 1 gives the correct torque setting. the machine approximately level with the centre of the front cross shaft. The third slat underneath should be Socket Size Thread Torque Torque 5mm clear of the lower guide rail. Figure 4 illustrates (mm) (mm) (lb/ft)

  • Page 10: Service Brakes

    SERVICE BRAKES Item No. of Greasing Points The service brakes should be checked and adjusted 10 Hours: regularly in order to maintain braking performance and Beater swinging flail pivots meet current braking regulations. As the brake linings wear it will become necessary to 25 Hours: adjust the brakes.

  • Page 11: Fault Finding Chart

    FAULT FINDING CHART Symptom Fault Solution Irregular spread speed Incorrect loading procedure Load as per diagram in ‘OPERATION’ Bed conveyor operating too quickly Reduce bed conveyor speed Lumps form during spreading Beater flail tips worn Reverse or renew tips Bed conveyor operating too quickly Reduce bed conveyor speed Rapid wear of conveyor chain Bed conveyor over tensioned...

  • Page 12: Parts List

    PARTS LIST TITAN 10 AND TITAN 12 STANDARD AXLE AND WHEEL COMPONENTS Ref Description TITAN 10 TITAN 12 Qty Associated Parts Part Number Qty Pair Of Wheels 580/70 R38 WE1309 WE1309 1 - Standard Axle (400 x 80) Axle 2200mm (400 x 80) WA RS4686...
  • Page 13 Triangle LH Yellow 365 x 325 DL1431 Triangle RH Yellow 365 x 325 DL1432 “TITAN 10” Yellow Cut Letters 740 x 175 DL1424 “TITAN 12” Yellow Cut Letters 740 x 175 DL1425 “TITAN 15” Yellow Cut Letters 740 x 175 DL1426 “TITAN 17”...
  • Page 14 TITAN 15 AND TITAN 17 AXLE AND WHEEL COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty Pair Of Wheels 580/70 R38 WE1313 Axle 2300mm (406 x 140) WA RS4713 (Includes Item 5) Axle Mounting Plate RS4714 Bolt M24 x 200 FAS9797P Locknut M24 FAS2337...
  • Page 15 Ref Description Part Number Qty Associated Parts Part Number Qty Mounting Brake Components WA RS4710 Setscrew M12 x 40 FAS2680P Plain Washer M12 FAS2345P Locknut M12 FAS2334 20 Litre Reservoir TB1069 Emergency Relay Valve TB1068 Manual Load Sensing Valve TB1071 Setscrew M8 x 25 FAS2629P Plain Washer M8...
  • Page 16 TITAN 10 AND TITAN 12 TVZ ASSALI STANDARD AXLE COMPONENTS Description Part No. Wheel Nut M22 x 1.5 WE0950 Spring Washer M22 (Wheel Nut) WE0951 Hub Cap Screw WE1522 Hub Cap 155mm - Fixed By Screw WE1523 Elastic Pin (5 x 58mm) WE1524 Crown Nut M48 x 1.5...
  • Page 17 TITAN 15 AND TITAN 17 TVZ ASSALI AXLE COMPONENTS Description Part No. Wheel Nut M22 x 1.5 WE0950 Spring Washer M22 (Wheel Nut) WE0951 Hub Cap Screw WE1522 Hub Cap 155mm - Fixed By Screw WE1570 Elastic Pin WE1576 Crown Nut M70 x 2.0 WE1574 Locking Washer WE1575...

  • Page 18: Bed Components

    BED COMPONENTS Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty Gearbox Assembly Bed Drive RS4683 RS4736 (Comprising Items 1 - 4) Dual Line Relief Valve HYD5026 HYD5026 M8 x 40 Skt Hd Scw 12.9 FAS9537 Hydraulic Motor...
  • Page 19 Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty Driveshaft Support Bed c/w Bushes RS4734 RS4734 (Comprising Items 9 & 10) Driveshaft Support Bed WA RS4733 RS4733 Setscrew M12 x 40 FAS2680P Plain Washer M12 FAS2345P Locknut M12...
  • Page 20 BEATER ASSEMBLY COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty Hydraulic Hose 1/4” 1770mm HYD2072 Hydraulic Hose 1/4” 2570mm HYD2073 Clamp Top HYD1960C Setscrew M8 x 35 FAS2631P Pair Of 15mm Clamps HYD1960B 1/8" x 1/8" BSP M/M Union HYD1010 Grease Nipple 1/8”...
  • Page 21 Ref Description Part Number Qty Associated Parts Part Number Qty Beater Top WA RS4668 Bolt M16 x 45 FAS9704P Plain Washer M16 FAS2346P Locknut M16 FAS2335 Side Panel LH WA RS4669 Setscrew M14 x 35 FAS2753P Plain Washer M14 FAS2398P Locknut M14 FAS2331 Beater LH WA...
  • Page 22 BEATER ASSEMBLY COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty Seal Underfloor 1200mm x 130mm RS3073 Setscrew M8 x 25 FAS2629P Washer 30 x 9 x 5.0mm FAS2408P Locknut M8 FAS2332 Seal Underfloor 400mm x 170mm RS3072 Setscrew M8 x 25 FAS2629P Washer 30 x 9 x 5.0mm...
  • Page 23 MANUAL BED SPEED CONTROL A - Connection To Bed Chain Motor Supply Hose B - Connection To Bed Chain Motor Return Hose C - Pressure (Supply) Hose From Tractor D - Return Hose To Tractor Ref Description Part Number Qty Associated Parts Part Number Qty KIT Manual Speed Control RS4580...

  • Page 24: Body Components

    Part Number Qty Body Support 1800mm WA RS4588 Setscrew M16 x 35 FAS2702P Locknut M16 FAS2335 Body RS4500 1 - Titan 10 RS4600 1 - Titan 12 RS4700 1 - Titan 15 RS4800 1 - Titan 17 Rear Floor Assembly RS4688...
  • Page 25 Ref Description Part Number Qty Associated Parts Part Number Qty Mudguard Rear RH RS4746 1 - Titan 15 RS4743 1 - Titan 17 Setscrew M8 x 20 FAS2627P Plain Washer M8 FAS2343P Locknut M8 FAS2332 Mudguard Upper RS4742 2 - Titan 15 & 17 Setscrew M8 x 25 FAS2629P Plain Washer M8...
  • Page 26 BODY COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty Front Seal 225mm RS3034 Rubber Seal Clamp Strip RS4523 Bolt M8 x 40 FAS9632P Plain Washer M8 FAS2343P Locknut M8 FAS2332 Front Seal Stiffener RS3035 Front Bed Guard Assembly RS4628 Bolt M16 x 45 FAS9704P...
  • Page 27 Setscrew M6 x 20 FAS2603P Plain Washer M6 FAS2342P Locknut M6 FAS2330 Reflector Amber Round RS4737 2 - Titan 10, 12 & 15 Setscrew M6 x 20 FAS2603P Plain Washer M6 FAS2342P Locknut M6 FAS2330 RS4737 4 - Titan 17...
  • Page 28 BED DRIVE GEARBOX COMPONENTS TITAN 10 AND TITAN 12 Oil Capacity - 6 Litres Oil Type - SAE 90 Ref Description Part No. Ref Description Part No. Gearbox Bed Chain RS4535 Oil Seal End Cap 62mm SC3829 (Comprising All Items)
  • Page 29 BED DRIVE GEARBOX COMPONENTS TITAN 15 AND TITAN 17 Oil Capacity - 6 Litres Oil Type - SAE 90 Ref Description Part No. Ref Description Part No. Gearbox Bed Chain RS4735 Oil Seal End Cap 80 x 10mm BRG3502 (Comprising All Items) Circlip - Internal 80mm FAS7115 Oil Seal 140 x 90 x 13...
  • Page 30 BEATER DRIVE GEARBOX COMPONENTS Oil Capacity - 14.5 Litres Oil Type - SAE 90 Ref Description Part No. Ref Description Part No. Gearbox Beater Berma RS4560 Oil Level Indicator 1” BSP HYD1471 (Comprising All Items) Setscrew M14 x 35 FAS2753P 22 O - Ring OR 2212 (BS034) HYD4042 Oil Seal 55 x 85 x 10mm...
  • Page 31 LIGHTING KIT COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty KIT Lighting Standard EC1511 (Comprising Items 1 - 5) Rear Light Assembly LED ROM IV EC1501 Plain Washer M5 FAS2341P Locknut M5 FAS2328S Triangular Rear Reflector EC1503 Pan Hd Screw M5 x 16 FAS2419P Plain Washer M5...
  • Page 32 BONDIOLI AND PAVESI SHEARBOLT FRONT PTO SHAFT Description Part No. PTO Shaft Complete Titan 10 & 12 Shearbolt PTO8038 Ball Collar Kit 1-3/8” PTO4114 Yoke 6 Spline S7-G7 PTO4115 Cross Journal Kit S7-G7 PTO4054 Outer Tube Yoke PTO4117 Flexible Roll Pin 10 x 75...
  • Page 33 BONDIOLI AND PAVESI REAR PTO SHAFT Description TITAN 10/12/15 PTO Shaft Complete Titan Rear PTO8039 Ball Collar Kit 1-3/4” PTO4148 Yoke 20 Spline G7 PTO4146 Cross Journal Kit S7-G7 PTO4054 Outer Tube Yoke PTO4117 Flexible Roll Pin 10 x 75...
  • Page 34 SPRUNG DRAWBAR COMPONENTS Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty KIT Flange Drawbar Sprung RS4512 1 - Titan 10 RS4685 1 - Titan 12 RS4703 1 - Titan 15 RS4703 1 - Titan 17 U-Bolt c/w Nuts...
  • Page 35 FIXED DRAWBAR OPTIONS TITAN 10 AND TITAN 12 Ref Description Part Number Qty Associated Parts Part Number Qty KIT Fixed Ring Drawbar RS4699 KIT Fixed Clevis Drawbar RS4598 Plain Washer 70 x 33 x 6.0mm FAS4825P Rear Pivot Pin Drawbar...
  • Page 36 POULTRY MUCK PADDLES OPTION Ref Description Part Number Qty Associated Parts Part Number Qty KIT Poultry Manure Paddles RS3079 (Comprising All Items) Poultry Manure Paddle RS3069 Bolt M16 x 45 FAS9704P Locknut All Metal M16 FAS2321 The poultry muck paddles are designed to replace the standard rotor tips on the lowest five positions on the spirals of each rotor.
  • Page 37 STROBE LIGHT OPTION Ref Description Part Number Qty Associated Parts Part Number Qty KIT Strobe Light RS4752 (Comprising All Items) Strobe Kit c/w Cable And Connector EC1510 Pan Head Screw M4 x 16 FAS2430S (Includes Item 2) Plain Washer M4 FAS2340S Locknut M4 FAS2329S...
  • Page 38 TITAN 10 AND TITAN 12 COMMERCIAL AXLE AND WHEELS OPTION Ref Description TITAN 10 TITAN 12 Qty Associated Parts Part Number Qty Pair Of Wheels 580/70 R38 WE1313 WE1313 1 - Commercial Axle (406 x 120) Axle 2300mm (406 x 120) WA RS4695...
  • Page 39 Ref Description TITAN 10 TITAN 12 Qty Associated Parts Part Number Qty Handbrake Ratchet TB1073 TB1073 Setscrew M10 x 25 FAS2654P Plain Washer M10 FAS2344P Mounting Brake Components RS4710 RS4710 Setscrew M12 x 40 FAS2680P Plain Washer M12 FAS2345P Locknut M12...
  • Page 40 TITAN 10 AND TITAN 12 TVZ ASSALI COMMERCIAL AXLE COMPONENTS Description Part No. Wheel Nut M22 x 1.5 WE0950 Spring Washer M22 (Wheel Nut) WE0951 Hub Cap Screw WE1522 Hub Cap 155mm - Fixed By Screw WE1523 Elastic Pin (5 x 58mm) WE1524 Crown Nut M48 x 1.5...
  • Page 41 LOAD CELL KIT OPTION Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty KIT - Load Cells Titan RS4697 RS4730 (Comprising All Items) Display Digi-Star NT 460 RS4726 RS4726 Cable - Power SC4965 SC4965 Junction Box Mounting...
  • Page 42 HYDRAULIC JACK OPTION Ref Description Part Number Qty Associated Parts Part Number Qty KIT Hydraulic Jack RS4270 (Comprising All Items) Guard Hydraulic Jack RS4275 Setscrew M8 x 16 FAS2625P Locknut M8 FAS2332 Outer WA Hydraulic Jack RS4271 Bolt M20 x 50 FAS9730P Plain Washer M20 FAS2347P...
  • Page 43 HYDRAULIC JACK HYDRAULIC CYLINDER COMPONENTS Ref Description Part Number Qty Associated Parts Part Number Qty Hydraulic Jack - Hydraulic Cylinder CYL1220 (Comprising All Items) Rod WA - Hydraulic Jack CYL1222 Wiper Seal HYD4517 Wiper Seal Housing CYL1032 Rod Seal Backup Ring DC1233 U Packing HYD4327...
  • Page 44 BONDIOLI AND PAVESI CAM CLUTCH FRONT PTO SHAFT OPTION Description Part No. PTO Shaft Complete Titan 10 & 12 Standard PTO8036 Ball Collar Kit 1-3/8” PTO4114 Yoke 6 Spline S7-G7 PTO4115 Cross Journal Kit S7-G7 PTO4054 Outer Tube Yoke PTO4117...
  • Page 45 BONDIOLI AND PAVESI WIDE ANGLE FRONT PTO SHAFT OPTION Description Part No. PTO Shaft Complete Titan 10 & 12 Wide Angle PTO8037 Ball Collar Kit 1-3/8” GO-RT PTO4158 Yoke 6 Spline S6/1R6 PTO4154 Cross Journal Kit Wide Angle PTO4073 Central Body...
  • Page 46 SLURRY DOOR OPTION Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty KIT Slurry Door RS4640 RS4640 (Comprising Items 1 - 7 & 9 - 11 Slurry Door WA RS4641 RS4641 Cylinder Pin Slurry Door RS4522 RS4522...
  • Page 47 Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty Round Insert polished RS4637 RS4637 Slurry Door Hose Guard LH RS4281 Setscrew M10 x 25 FAS2654P Plain Washer M10 FAS2344P Locknut M10 FAS2333 Slurry Door Hose Guard RH...
  • Page 48 ELECTRONIC BED SPEED CONTROL OPTION A - Connection To Bed Chain Motor Supply Hose B - Connection To Bed Chain Motor Return Hose C - Pressure (Supply) Hose From Tractor D - Return Hose To Tractor Ref Description Part Number Qty Associated Parts Part Number Qty KIT Electronic Speed Control...
  • Page 49 EXTENSION SIDES OPTION Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty KIT Extension Sides RS4517 1 - Titan 10 RS4617 1 - Titan 12 RS4717 1 - Titan 15 RS4817 1 - Titan 17 Extension Side Centre...
  • Page 50 NOTES...
  • Page 51 WIRING DIAGRAM - LED LIGHTS WIRING DIAGRAM - TRACTOR LEAD...

This manual is also suitable for:

Titan 12Titan 15Titan 17
