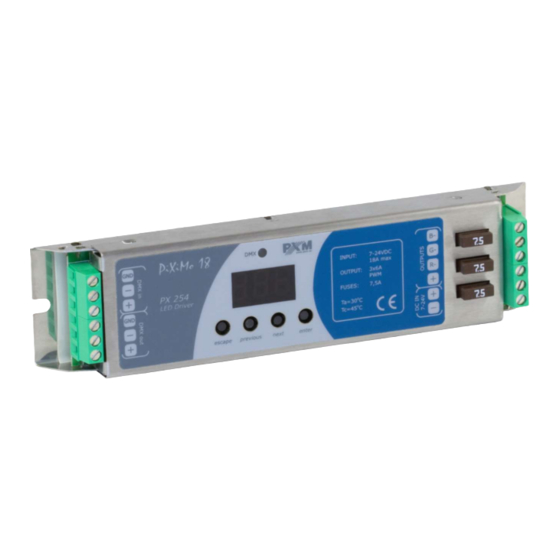

LED RGB DRIVER F6324265
PREFACE
Welcome to SAFERAIN S.L. Congratulations on the purchase of the F6324265 RGB LED driver.
We hope not to disappoint the expectations placed on the product and our company.
Carefully read the instructions for use and become familiar with the equipment before using it
for the first time. All work with this equipment should only be carried out in accordance with
tese instructions.
Always take into account the safety instructions in order to guarantee the correct and safe use
of the equipment. Carefully keep these instructions for use.
Fabricantes de equipamiento para fuentes ornamentales y riego de jardines
USER MANUAL
Safe-Rain S.L
info@saferain.com
Manual: LED RGB DRIVER F6324265
Property of SAFERAIN S.L.
FACTORY AND HEAD OFFICE.
SAFE RAIN S.L.
C/ COBRE Nº6
45520 VILLALUENGA DE LA SAGRA
(TOLEDO) SPAIN
Tlf. +34 925 531 480
FAX: +34 925 530 257
E MAIL:
info@saferain.com
http://www.saferain.com
www.saferain.com
1
