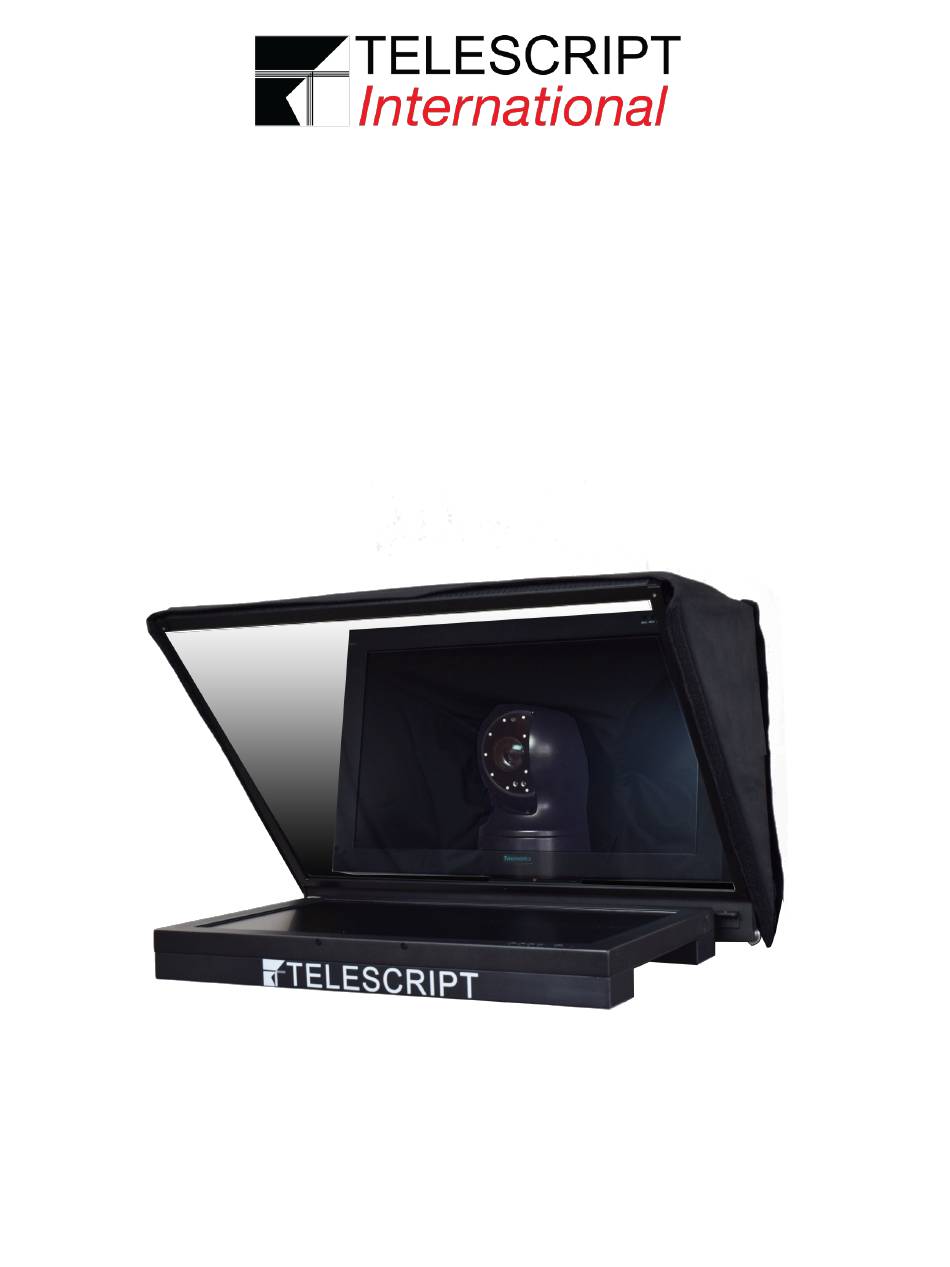

- Page 1 258 Oak Tree Road, Tappan, NY 10983 info@telescript.com 201-767-6733 Telescript’s PTZ Prompting System ROBO210R-SDI Assembly Instructions telescript.com...
-
Page 2: Parts List
Parts List: 1 - 21.5” Telescript 16x9 Prompter Monitor 1 - Power Supply w/ Remote 1 - Hood 1 - Hood Mask 1 - Monitor Mounting Plate 1 - Camera Mounting Plate 1 - Frame Riser 3 - 1/4-20 x 2-3/8 Flathead Bolts... - Page 3 Remove the camera heads wedge plate from the cam- era head and attach to the bottom of the monitor mounting plate. Depending on the type of camera you are using, you will need to make sure that you position this plate in a location that brings the balance of the system to the center.
- Page 4 5. On the bottom of the monitor plate you will see three equidistant, recessed holes. Insert one of the three 1/4-20 x 2 3/8 bolts through the center bottom of the monitor plate. Slide the frame riser over the top of the bolt. Note: If completing these steps becomes difficult, having a second person, or bringing the hardware to a workbench will help make it easier.
- Page 5 8. Your assembled hardware should now look like the photo on the right. 9. The top rail of the beamsplitter frame has two small flathead screws holding the rail to the frame. Remove both screws and remove the top beamsplitter rail. 10.
- Page 6 Tighten the thumbscrews. Note: Be sure you have your monitor facing the proper direction. The edge of the monitor with the Telescript logo is the front of the monitor and should be facing you.
- Page 7 16. The beamsplitter frame has Velcro along the sides. Attach the hood to the frame using these Velcro strips. 17. Take your hood shroud and attach it to the back of the hood using the Velcro on the edges of the hood and shroud.
- Page 8 Accessories If you’ve purchased your ROBO210R-SDI system with a ClockOne TallyOne, mounting is very easy. To mount your ClockOne, simply remove the two Philips head screws on the front of the monitor (Photo A). Then insert the two long bolts provided with your clock through the holes at the top center of the clock.
- Page 9 Studio Mount (23” Plate) If you’ve purchased a ROBO210R-SDI system with a studio mount configuration, your hardware may be slightly different from what you see in this manual. Most steps still apply, however, since you have a 23” mounting plate, your mounting process is different. Your back bracket will have either recessed grooves or recessed holes (Photo A).
