Installing the Pole LCD Customer Display Kit
This document describes how to install the Pole LCD Customer Display
Kit on the Workstation 4 or Keyboard Workstation 4. The kit consists of the
LCD Display Assembly /w cable, pole, base, extension cable, and nut. The
installer must provide mounting hardware. The cable length is
approximately 5 feet.
Installation Procedure
1. Using the base as a template, mount it to the counter surface.
2. Refer to Figure 1. Route the extension cable through the pole and
connect the LCD assembly cable. Place the LCD assembly on the pole,
position the display at the desired position and use a 1mm hex screw to
lock the display in place.

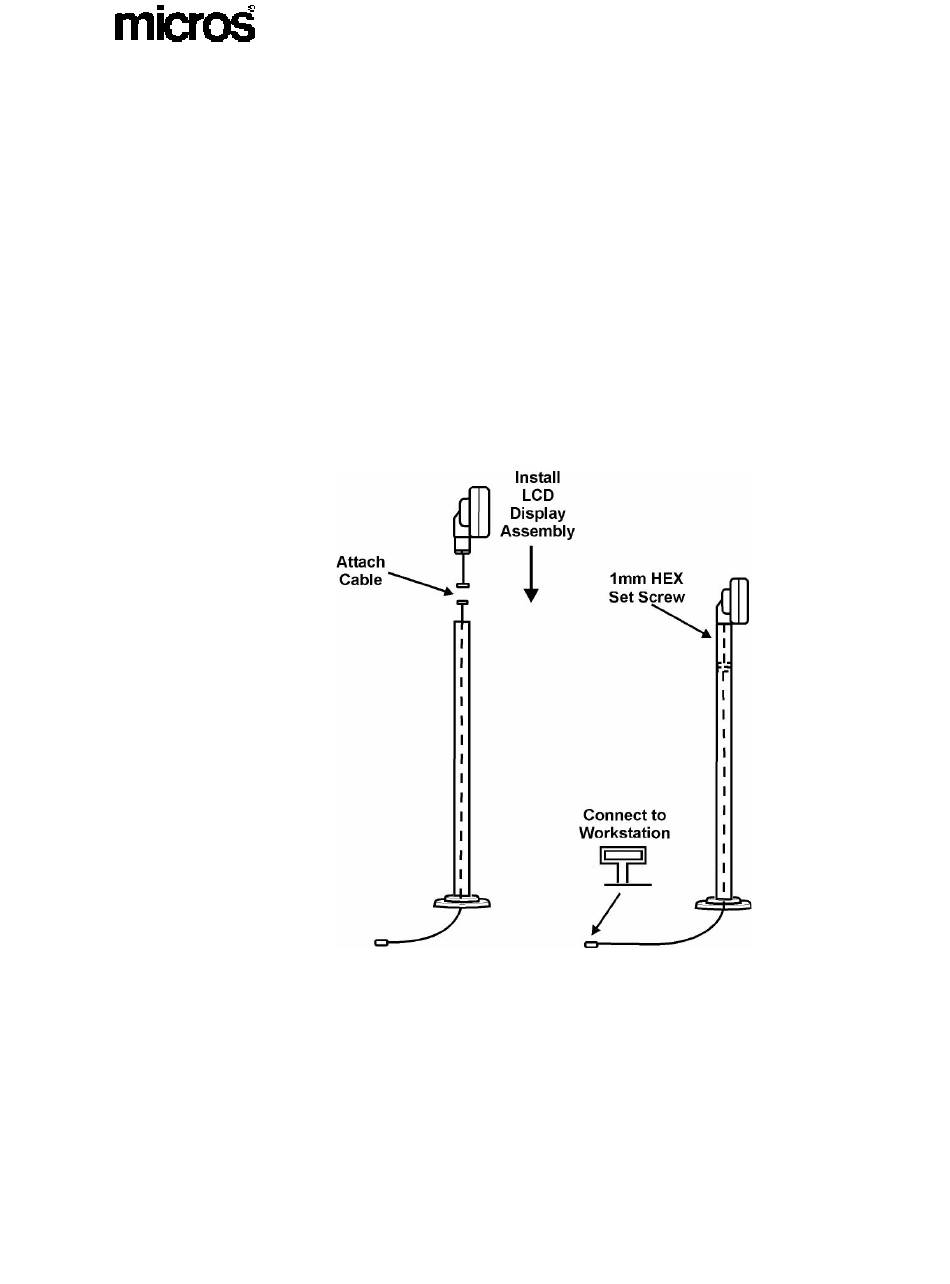

Figure 1: Assembling the Pole LCD Customer Display
3. Connect the extension cable to the appropriate pole display connector
on the WS4 or KWS4 as as shown in Figure 2.
MD0011-002
Revision A
Page 1 of 2
Advertisement
Table of Contents
Summary of Contents for Micros WS4
- Page 1 Figure 1: Assembling the Pole LCD Customer Display 3. Connect the extension cable to the appropriate pole display connector on the WS4 or KWS4 as as shown in Figure 2. MD0011-002 Revision A Page 1 of 2...
- Page 2 Figure 2: Connecting the Pole Display to the WS4 or KWS4 Software Configuration On the WS4, the GR1.2 (or later) software platform must be installed to emulate the 2x20 VFD. To enable the LCD Pole Display, start the DiagUtility. Select the ‘Cust Disp’ tab. In the ‘LCD Pole Config’ section, press the [Create Pole Config File] button to enable the LCD Pole Display.
