Summary of Contents for Skyway West RouterBoard
- Page 1 Self-install Instructions PureFiber Standalone (New install) - Self Install Guide Skyway West - May 2019...
- Page 2 IMPORTANT: You will lose connectivity Fiber ONT during this process. Please (Provided by Telus) proceed ONLY when it is Actiontec WiFi Router okay to do so. Call Skyway West Support if you need assistance: 604-482-1212...

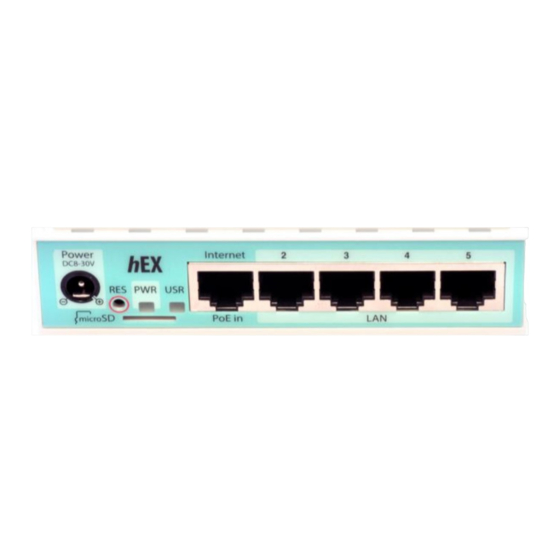

- Page 3 RouterBoard Management Router (Sent to you by Skyway) You will receive this RouterBoard management router from Skyway West. Please connect it (according Panel to this guide) in order to complete your setup. (You may also receive other equipment from Skyway, depending on the specifics of your solution.)
- Page 4 Don’t forget to plug in! All devices described within this guide must be plugged in to appropriate power outlets. The diagrams herein do NOT show power cords in order to keep them simple and easy to understand.
- Page 5 1. Unplug your Fiber ONT from your WiFi router Wall Jacks An Optical Network Terminal (ONT) is the device that a fiber line terminates into, and converts optical data into ethernet-protocol data. Fiber ONT (Provided by Telus) Actiontec WiFi Router...
- Page 6 2. Insert the Skyway Management Router into your setup, as shown Plug the Fiber ONT into port ONE (Internet / PoE port) Wall Jacks the Skyway RouterBoard. Plug the Telus Actiontec WiFi Skyway RouterBoard router into port FOUR of the...
- Page 7 LAN internet traffic; WiFi users Wall Jacks cannot reach your LAN directly through our management router. In order to reach your internal Skyway RouterBoard Management Router network, WiFi traffic is tunneled to Skyway and returns through your Internet connection to your LAN firewall.
