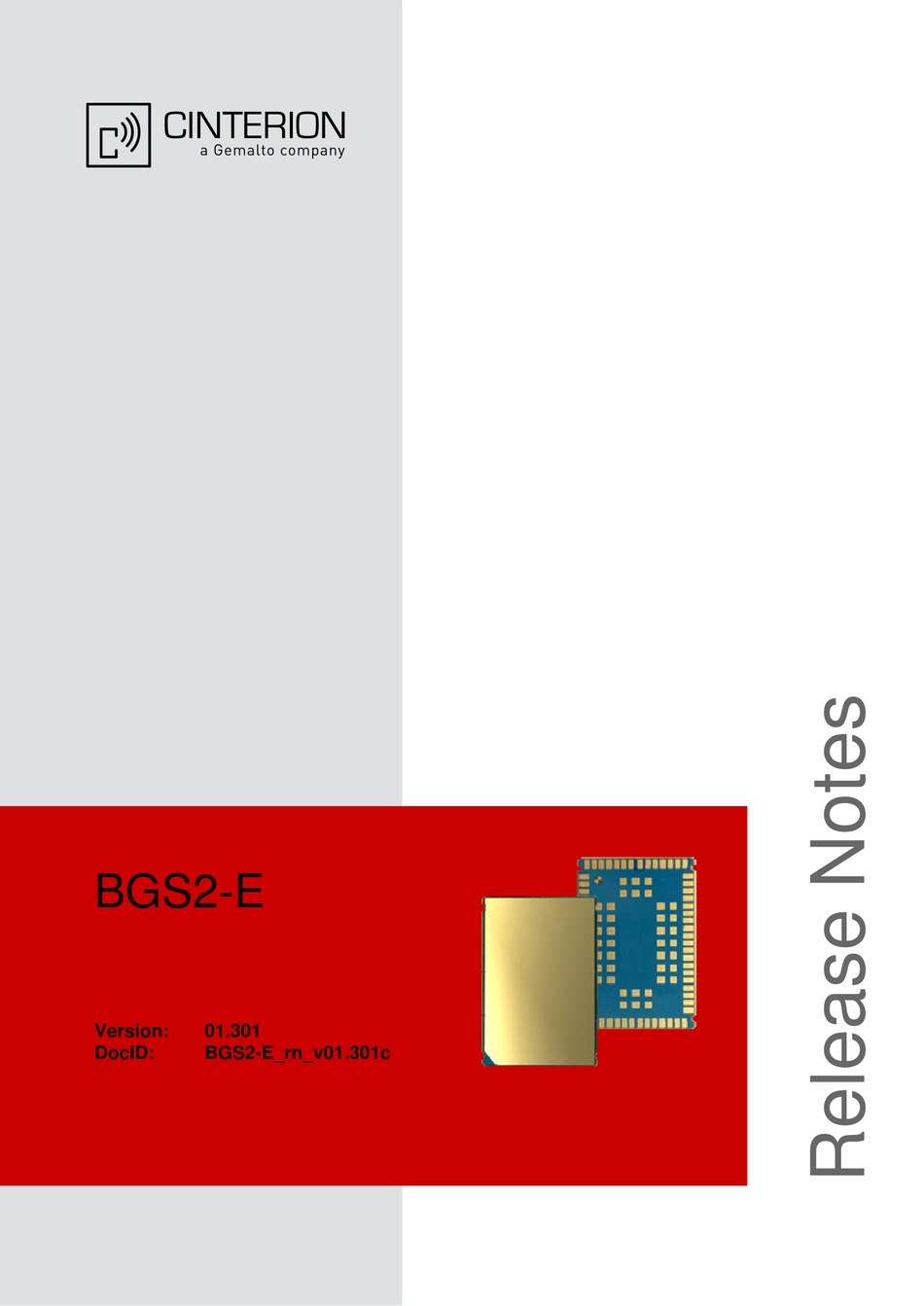

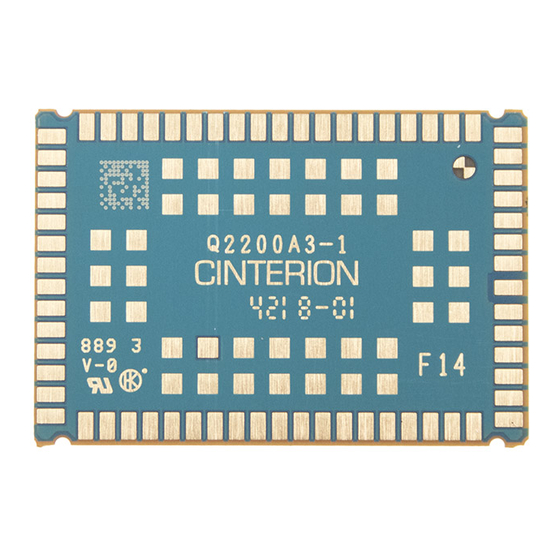

  • Page 1  BGS2-E Version: 01.301 DocID: BGS2-E_rn_v01.301c...
  • Page 2  BGS2-E Release Notes Confidential / Released BGS2-E Release Notes Document Name: Version: 01.301 Date: February 08, 2012 DocId: BGS2-E_rn_v01.301c Status: Confidential / Released GENERAL NOTES THE PRODUCT INCLUDING THE SOFTWARE PROVIDED BY CINTERION WIRELESS MODULES GMBH (“CINTERION”) WITH THE PRODUCT (“PRODUCT”) IS DEEMED ACCEPTED BY RECIPIENT AND IS PROVIDED WITHOUT INTERFACE TO RECIPIENT’S PRODUCTS.
  • Page 3  BGS2-E Release Notes Confidential / Released EXCLUSION OF LIABILITY CINTERION, ITS LEGAL REPRESENTATIVES AND VICARIOUS AGENTS SHALL – IRRESPECTIVE OF THE LEGAL GROUND – ONLY BE LIABLE FOR DAMAGES IF THE DAMAGE WAS CAUSED THROUGH CULPABLE BREACH OF A MAJOR CONTRACTUAL OBLIGATION (CARDINAL DUTY), I.E. A DUTY THE FULFILMENT OF WHICH ALLOWS THE PROPER EXECUTION OF THE RESPECTIVE AGREEMENT IN THE FIRST PLACE OR THE BREACH OF WHICH PUTS THE ACHIEVEMENT OF THE PURPOSE OF THE AGREEMENT AT STAKE, RESPECTIVELY, AND ON THE FULFILMENT OF WHICH THE RECIPIENT...

  • Page 4: Table Of Contents

     BGS2-E Release Notes Confidential / Released Contents Preamble ........................5 Related Documents ....................5 New and Improved Features ..................6 Known Issues........................7 Getting Started with BGS2-E..................8 Technical Requirements ..................8 Connecting the BGS2-E Evaluation Module to DSB75..........8 4.2.1 DSB75 Development Support Board .............10 4.2.2 BG2-DSB75 Adapter................11 BGS2-E_rn_v01.301c...

  • Page 5: Preamble

     BGS2-E Release Notes Confidential / Released Preamble This Release Note refers to the Cinterion GSM/GPRS module BGS2-E 01.301 (A-Revision 01.000.03) Named 01.301c, this Release Note is an update of the earlier document version 01.301b. Chapter 2 provides an overview of the new and improved features. Please note that these modifications have no impact on Type Approval.

  • Page 6: New And Improved Features

     BGS2-E Release Notes Confidential / Released 2 New and Improved Features AT command / feature Brief description SMTP client This release implements a more stable handling of SMTP Server return codes. ASC0 interface This release fixes a rare condition of failed communication over the ASC0 serial interface after AT^CALA had been set and the module switched off with AT^SMSO.

  • Page 7: Known Issues

     BGS2-E Release Notes Confidential / Released 3 Known Issues AT command / feature Brief description Unsolicited result codes At the end of an Internet session, a download job may sometimes “^SISR: x,2”, return the “SISW: x,2” URC instead of the expected “^SISR: x,2” “^SISW: x,2”...

  • Page 8: Getting Started With Bgs2-E

     BGS2-E Release Notes Confidential / Released Getting Started with BGS2-E For testing and debugging purposes BGS2-E is supplied as an evaluation module. The evaluation module comprises of the actual SMT module soldered onto a PCB with a 60-pin board-to-board connector on its bottom side that can be connected to Cinterion’s Development Support Board DSB75 DSB75 is an evaluation kit designed for a wide range of Cinterion wireless modules.
  • Page 9  BGS2-E Release Notes Confidential / Released  Plug the 50 Ohms RF antenna to the SMA connector (X305) of the BG2-DSB75 Adapter.  Connect RS-232 cables to the 9-pin SubD connectors on the DSB75: Use COM1 (X201) for the module’s first asynchronous interface ASC0. Use COM 2 (X202) for the module’s second asynchronous interface ASC1.

  • Page 10: Dsb75 Development Support Board

     BGS2-E Release Notes Confidential / Released 4.2.1 DSB75 Development Support Board X202 X201 X205 X110 X401 X400 1 4 2 3 X203 X120 S112 X121 S467 S464 S453 S110 S463 S462 S452 S457 S469 S466 S111 S461 S451 S456 S459 S458 S468 S465...

  • Page 11: Bg2-Dsb75 Adapter

     BGS2-E Release Notes Confidential / Released 4.2.2 BG2-DSB75 Adapter The BG2-DSB75-Adapter can be used to connect the BGS2-E evaluation module to the DSB75. 80-pin header X135 at bottom side Slide switch X210 X308/X309 Slide switch X201 3 Jumpers at X307 Jumper at X311 60-pin board-to-board connector X100...
  • Page 12  BGS2-E Release Notes Confidential / Released X135 X311 X201 V143 X307 X210 X100 X305 C101 C102 X308 X309 BG2-DSB75 adapter Figure 4: BG2-DSB75 Adapter (overview) Note: The PWR_IND signal is generated by a power indication circuit integrated on the BGS- DSB75 Adapter, similar to the power indication circuit recommended in [1] for the final product.
