Summary of Contents for Opera Solo Bed 105

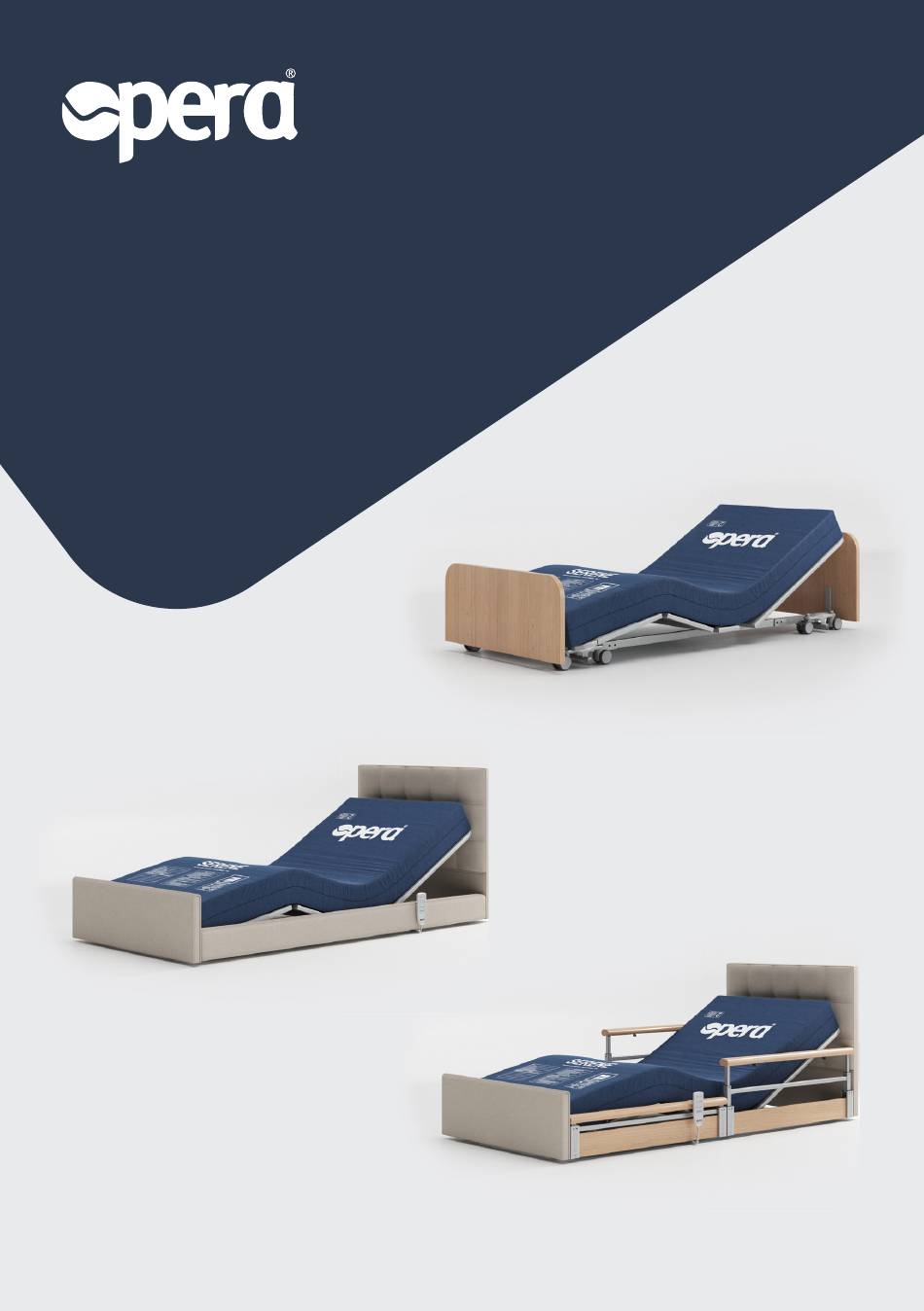

- Page 1 Solo Bed Installation Guide and Technical Specifications opera-care.co.uk | 0333 222 8584...
- Page 2 4. Troubleshooting 5. Safety Instructions 6. General Information 7. Servicing 8. Technical Specification 9. Service Life and Disposal 10. Guarantee 11. Opera Warranty Terms and Conditions 1 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
-
Page 3: Explanations Of Symbols
This care bed may only be used indoors. This product must be disposed of in a separate refuse collection in the European Union. Do not dispose of as normal domestic waste. Maximum permissible load. Maximum patient weight. Read instructions. opera-care.co.uk | 0333 222 8584 |... -
Page 4: Installation And Commissioning
(E) Headboard Bracket x 2 (F) Head/Footboard Bolt x 8 (H) Mattress Retainer x 8 (G) Head/Footboard Insert Nut X 8 *Foot and headboards styles may vary 3 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1... - Page 5 Before you begin, you will also need: • Wall space with a plug socket nearby • Tools: Size 5 and 4 allen key and two adjustable spanners *The Solo Telescopic Side Rail kit is an optional purchase opera-care.co.uk | 0333 222 8584 |...
- Page 6 ...bed platform height adjustment function (see page 20 on how to adjust ...the bed platform). Ensure that there are no cables, limbs or objects in the movement paths of the bed. Castor unlocked/unbraked Castor locked/braked 5 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 7 Repeat these steps for the footboard making sure that the correct brackets are used (D). Headboard with bracket lined up Headboard with brackets attached Front of headboard with insert nuts Footboard with brackets attached opera-care.co.uk | 0333 222 8584 |...
- Page 8 Do not overtighten the mounting hardware this will damage the mounting brackets. Headboard brackets lined up with the mounting channels Turning knob tightened, securing the bracket & head/footboards in place 7 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 9 Repeat this for all mattress retainers (2 mounting holes on the sides of the mattress platform and 2 at each end of the bed towards the Head board/footboards). Angled mattress retainer Pre-cast T mounting hole Mattress retainer inserted opera-care.co.uk | 0333 222 8584 |...
- Page 10 (1). Bed platform extended by 20cm Turnings knob locations for releasing the platform extension Photo of the small black turning knobs Mattress platform extended 9 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 11 (See diagram 3). To lower, lift the foot rest to its highest position and slowly lower it back down. 1) Bed in flat position 2) Knee break angle electronically adjusted 3) Knee break angle manually adjusted opera-care.co.uk | 0333 222 8584 |...
- Page 12 The bed should always be in the braked position when occupied, do not use the bed to transport occupants. 11 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 13 Plug in and raise the bed to a safe working height by using the bed platform height adjustment function on the handset (See page 20 on how to adjust the bed platform). opera-care.co.uk | 0333 222 8584 |...
- Page 14 Fixing bar holes (circled black) on the Chassis fixing bar holes (circled) fixing bar and the chassis fixing bar holes (circled blue) Fixing bar bolted to the chassis Lined up fixing holes 13 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 15 Pull the sheaths back over the grey plastic inserts and repeat these steps for each of the split side rails. Split side rail facing up Aluminium sheath pulled down Aluminium sheath pulled up with pin Security pin inserted in place opera-care.co.uk | 0333 222 8584 |...
- Page 16 (M) and screw the brackets into the split side rail. Repeat this for each of the split side rails. Split side rail facing up Split side rail with bracket screwed in 15 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 17 Fixing bar with bracket fixing Split side rail brackets lined up with holes numbered holes 1 and 2 Split side rail fixed to fixing bar Split side rail lined up at hole 2 opera-care.co.uk | 0333 222 8584 |...
- Page 18 The split side rail height from the top of the mattress in an uncompressed condition must be a minimum of 220mm. • Only mattresses that match the specification requirements are compatible with the Opera Solo Bed. 17 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 19 4. Mechanically adjustable knee break angle 12. Fixing bar 5. Mechanically extendable platform 13. Bracket fixing holes for 6. Chassis telescopic side rail 7. Handset 14. Fixing bar holes 8. Foot board 15. Chassis fixing bar holes opera-care.co.uk | 0333 222 8584 |...
-
Page 20: Side Rail Operation
When the split side rails are in the highest position, ensure that they are securely locked in to place. Failing to do this may result in injury. 19 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1... -
Page 21: Using The Handset
Using the Handset Whilst operating the bed, the rear castors of the bed must be braked to ensure stability during bed adjustments. The Opera Solo Bed should only be moved to reposition the bed. On the handset the up arrow on the controller indicates raising of the corresponding part of the bed. -
Page 22: Troubleshooting
Head or footboard is Head or footboard frame Refer to pages 6 & 7 on unstable. not tightly secured. securing the head and footboards. 21 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1... -
Page 23: General Safety Instructions
DANGER crushing. The Opera Solo bed is designed to stop when lowered to 320mm from the floor, always check that there are no objects or limbs under the bed before DANGER lowering further. - Page 24 Do not exceed the maximum weight limitation of the bed. The maximum safe working load is (SWL) 200kg for the Opera Solo Bed 105, and 250kg for the Opera Solo Bed 90 and 120.
-
Page 25: Safety Information For The Operator
This also applies for persons who only operate the care bed on a temporary basis. The care bed outlined in this manual is a Class I Medical Device as defined by the Medical Device Regulations 2017/745. Please observe your obligations as the operator. opera-care.co.uk | 0333 222 8584 |... -
Page 26: Cleaning And Disinfection
The electrical components must not be cleaned with a high pressure cleaner or a water jet. Only disinfection by wiping is permitted. 25 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1... -
Page 27: Servicing And Maintenance
6 months and after a lengthy brake in use and before each further use. Refer to section 7 for further detail. Any defects, damage or signs of wear must be rectified without delay. Only original spare parts from Opera may be used, otherwise all guarantees or warranties will be excluded. -
Page 28: General Information
The beds have been tested in accordance with national standards. The safety and performance requirements can only be met if the user uses the care bed as outlined in this manual. 27 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1... -
Page 29: Non-Intended Use
The Opera Solo Bed is intended for accomodating patients/occupants with a maximum body mass of 165kg for the Opera Solo Bed 90 and 215kg for the 105 and 120. The bed is designed to be used in residential homes, nursing homes and the domestic environment as a care bed for adults. -
Page 30: General Regulations
Non-intended uses for the Solo Telescopic Side Rails: • Using the split side rails for use with children. • Using the split side rails with a bed other than the Opera Solo beds. • Making modifications to the split side rails. •... - Page 31 Are the patient’s lifting pole and pole sleeve undamaged without any signs of wear? Do the side rails lock safely into place? Max. distance between the side rails 120mm? opera-care.co.uk | 0333 222 8584 |...
- Page 32 9V block battery OK / expiry date sufficient until next test? Is the safe working load adhered to? Comments: .............................. Place / Date: ............................Inspected by: ............................Next inspection:............................Signature: ..............................31 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
-
Page 33: Technical Specifcations
Footrest Angle 128° - 148° Adjustments (Mechanically raised) Reverse Trendelenburg 12° +/- 2° Mattress Base Surface Steel (Material) Castors 4 with brakes, 4 without Max. Castor Loading 90kg/14st 23lb Capacity Operating Noise < 50db opera-care.co.uk | 0333 222 8584 |... -
Page 34: Technical Data (Electrical)
Degree of protectoin to DIN EN 60601-2 Type B Housing degree of protection to EN 60529 IP X4 Max. switching cycles/mins Interruption 10%, Max. 2 min/18min Safety inspections Annually 33 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1... - Page 35 Emissions of harmonics Class A according to CISPR11 Emissions of voltage Complies fluctuations/Flicker according to IEC 61000-3-3 opera-care.co.uk | 0333 222 8584 |...
- Page 36 The care bed is according to designed for use in all CISPR11 establishments including domestic establishments ans those determined to be directly connected to a public supply 35 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1...
- Page 37 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey is recommended. If the field strength at the location of the care bed exceeds the specified compliance level above opera-care.co.uk | 0333 222 8584 |...
-
Page 38: Working Clearances
Note 2: These guidelines may not apply in all situations. Propagation of electromagnetic waves is affected by absorption and reflection from structures, objects and persons. 37 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1... -
Page 39: Service Life And Disposal
10. Guarantee As stated in the Standard Terms and Conditions, below, Opera provides a manufacturers warranty of 3 years from the date of purchase for the Opera Solo Bed and 1 year for the Telescopic Side Rails. 11. Opera Warranty Terms and Conditions 11.1 Warranty Terms... - Page 40 Replacement of the product or a part under the warranty does not extend or restart the warranty period. 11.2.5 If Opera is unable to repair or replace the product, the customer will be provided with credit for Opera products or may be refunded the price of the product (at Operas election).
- Page 41 11. Warranty Terms and Conditions 11.2.8 Opera reserves reasonable discretion to determine whether any product is or is not performing in accordance with Opera specifications, subject to applicable law. 11.3 General 11.3.1 Legislation may imply warranties or conditions or imposes obligations on Opera, which cannot be excluded, restricted or modified in relation to consumer goods.
- Page 42 11.3.3 To the full extent permitted by law, but subject always to clause 11.3.1: (a) Opera will not be liable for any loss, damage or alterations to third party products, no matter how occuring; or for any loss or damage arising from loss of use, loss of profits or revenue, or for any resulting indirect or consequential loss of damage.
- Page 43 Notes opera-care.co.uk | 0333 222 8584 |...
- Page 44 Opera Care Azure House, Connaught Road, Kingswood, Hull. HU7 3AP 0333 222 8584 support@opera-care.co.uk opera-care.co.uk 43 | Opera Care Solo Bed Installation Guide and Technical Specification | Version 1 Version 1 | Published August 2020...
