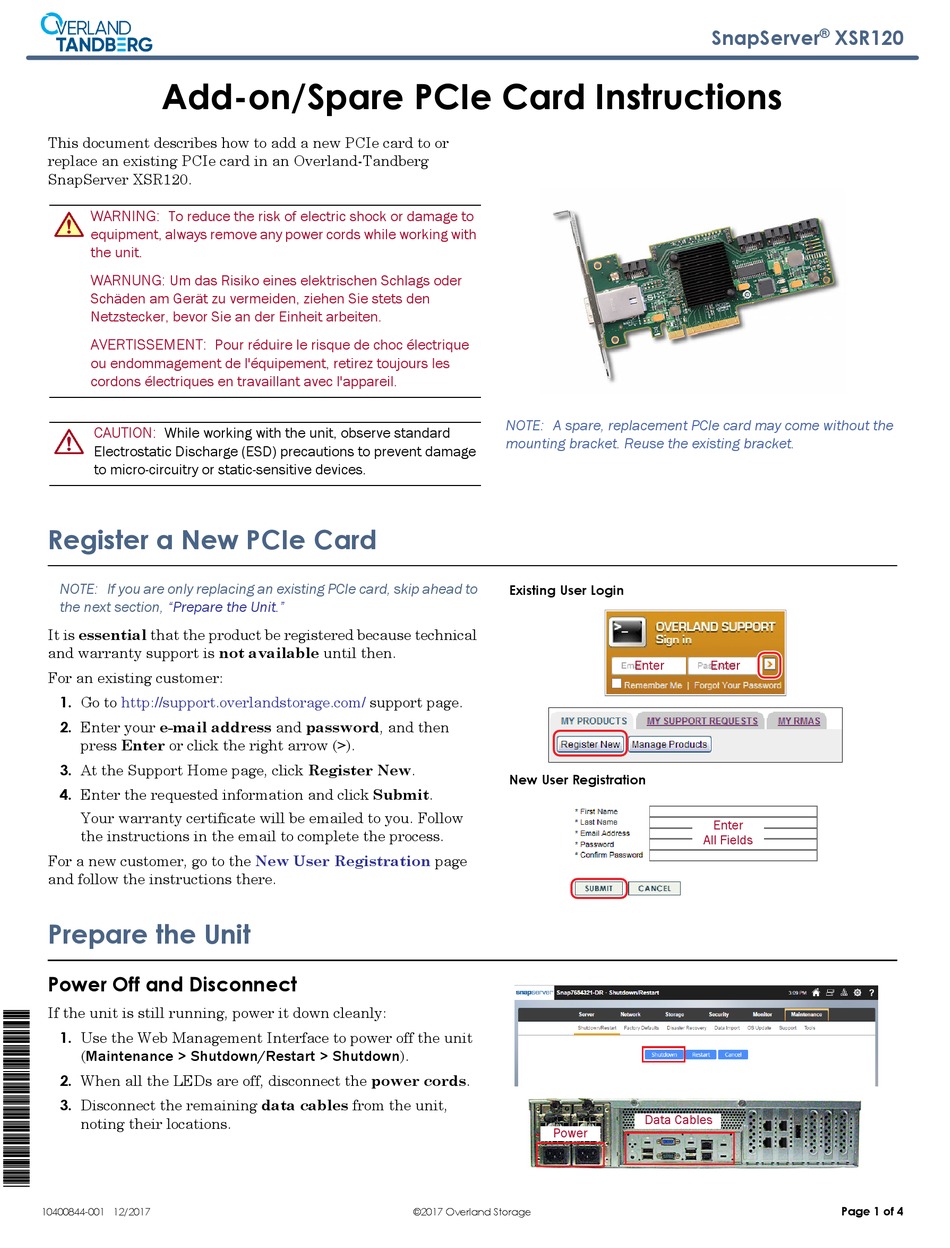

Add-on/Spare PCIe Card Instructions
This document describes how to add a new PCIe card to or
replace an existing PCIe card in an Overland-Tandberg
SnapServer XSR120.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the unit.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Register a New PCIe Card
NOTE: If you are only replacing an existing PCIe card, skip ahead to
the next section,
"Prepare the Unit."
It is essential that the product be registered because technical
and warranty support is not available until then.
For an existing customer:
1. Go to
http://support.overlandstorage.com/
2. Enter your e-mail address and password, and then
press Enter or click the right arrow (>).
3. At the Support Home page, click Register New.
4. Enter the requested information and click Submit.
Your warranty certificate will be emailed to you. Follow
the instructions in the email to complete the process.
For a new customer, go to the
and follow the instructions there.
Prepare the Unit
Power Off and Disconnect
If the unit is still running, power it down cleanly:
1. Use the Web Management Interface to power off the unit
(Maintenance > Shutdown/Restart > Shutdown).
2. When all the LEDs are off, disconnect the power cords.
3. Disconnect the remaining data cables from the unit,
noting their locations.
10400844-001 12/2017
support page.
New User Registration
page
©2017 Overland Storage
NOTE: A spare, replacement PCIe card may come without the
mounting bracket. Reuse the existing bracket.
Existing User Login
Enter
New User Registration
Data Cables
Power
SnapServer
®
XSR120
Enter
Enter
All Fields
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Overland Tandberg SnapServer XSR120
- Page 1 Add-on/Spare PCIe Card Instructions This document describes how to add a new PCIe card to or replace an existing PCIe card in an Overland-Tandberg SnapServer XSR120. WARNING: To reduce the risk of electric shock or damage to equipment, always remove any power cords while working with the unit.
- Page 2 SnapServer XSR120 Add-on/Spare PCIe Card Instructions Remove the Front Bezel 1. Carefully take hold of the front bezel and pull it straight out from the appliance until it releases. 2. Set the bezel aside on a secure surface. Remove the Drives IMPORTANT: Overland recommends that you remove all the drive carriers to reduce the unit’s weight prior to rack removal.
- Page 3 SnapServer XSR120 Add-on/Spare PCIe Card Instructions Install or Replace the PCIe Card 1. At the rear, remove and retain the screw securing the Screw Bracket rear access cover bracket. 2. Do one of the following: • If installing a new card in an empty slot, remove the rear panel access cover at that slot and set it aside.
- Page 4 SnapServer XSR120 Add-on/Spare PCIe Card Instructions Reinstall Drives 1. Position a drive assembly in front of an empty bay. 2. Slide the assembly in until the latch clicks, securing it. 3. Repeat Steps 1–2 for all remaining drive carriers. IMPORTANT: To maintain proper airflow and cooling, a drive carrier or blank carrier must be installed in every bay.
